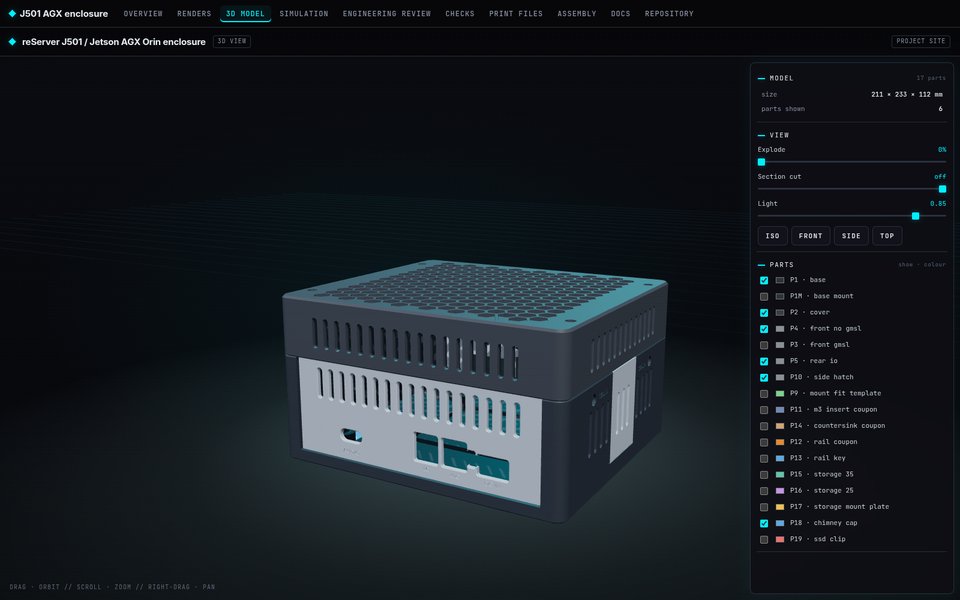

` | where the PNGs and `manifest.json` go | | `size` | `(1400, 1000)` | image size in pixels | | `explode` | `1.0` | scale of the exploded offsets (0 turns the exploded view off) | | `context` | `"neighbours"` | other sections' parts drawn faint: `neighbours` (sharing an interface, a fastener or a joint, or whose box is within 10 % of the section's size), `all`, or `none` | | `only` | `None` | render only these view ids; another view keeps its earlier image while that image is current (same geometry digest, section hash and planned view, and the file still matches its hash), else it gets `file: null` and its old image is removed | ## The views Every image is captioned with the section id and title and the view's name, with the section hash and the part count in the subtitle, and a note saying what the view is for. Section parts are coloured one colour each (listed in the manifest); parts allowed to float (`free`) are a contrast orange; placed fasteners are dark steel; context parts from other sections are light grey and translucent. Each view is framed on its own box (`fit`): the section, the cavity's part, the joint's parties, a box around the screw, the exploded or posed parts; context outside it is cropped. | View id | Kind | When | What it shows | |---|---|---|---| | `solid-iso` | `solid` | always | the section in place, front iso | | `solid-rear` | `solid-rear` | always | the opposite iso, from behind and the other side | | `xray-iso` | `xray` | always | the section's parts translucent, free items and fasteners opaque: what sits inside what | | `cut-cavity-` | `cut` | per registered cavity of a section part | a vertical plane through the cavity's box centre, normal +Y, seen from −Y | | `cut-cavity--plan` | `cut` | the same | a horizontal plane through the centre, seen from above: the walls as a ring around the contents (an item through a wall shows here even when another item hides it in the side cut) | | `cut-joint-` | `cut` | per joint with a party in the section | a plane containing the joint axis, as near vertical as possible | | `cut-fastener-` | `cut` | per group of fasteners with one catalogue key and one clamped part | a plane containing the first screw's axis: head, stack and thread (the fastener gate measures every screw; alike screws need one look) | | `exploded` | `exploded` | when steps fit section parts | each part moved back out along its step's direction, later steps further; fasteners back out along their own axis from where their install step's part went | | `access-from-` | `access` | per distinct fastener axis direction | looking along the screws' advance from the tool's side (`top`, `bottom`, `front` = −Y, `back`, `left`, `right`, or the rounded vector), with neighbouring parts opaque since they can block the tool | | `pose--min`, `-max` | `pose` | per ranged joint whose moving part is in the section | the moving body at each end of its declared range | | `findings` | `findings` | when a failing or warning finding has a witness point | `solid-iso` with a numbered callout at each witness | ## `manifest.json` Written next to the images, `exports/review/

/manifest.json`. Schema `cad-agent.review-packet/1`. File names in `views[].file` are relative to the manifest's directory; every other path is relative to the project root. The file has no timestamp: an unchanged packet writes identical JSON. ```json { "schema": "cad-agent.review-packet/1", "toolkit": "0.1.0", "dir": "exports/review/S3", "section": {"id": "S3", "title": "Hopper and feed", "purpose": "...", "requirements": ["R4", "R7"], "status": "gated", "blocked_by": ["no current reviewer record"], "file": "dossier/sections/hopper.yaml"}, "geometry": {"file": "exports/dossier-geometry.json", "digest": "", "actor": "agent-12"}, "section_hash": "", "parts": { "hopper": {"sha256": "", "kind": "part", "count": 1, "free": false, "grounded": false, "color": "#3b7dd8", "function": "", "decisions": [{"id": "D41", "decision": "..."}], "status": "gated", "bbox": {"min": [0, 0, 0], "max": [60, 60, 80]}, "volume_mm3": 41200.5, "instances": [{"key": "hopper", "sha256": "..."}]}, "screw_0": {"sha256": "...", "kind": "fastener", "count": 1, "key": "m3_shcs", "clamps": "lid", "into": "insert_0", "color": "#4a4f55", "instances": [{"key": "screw_0", "sha256": "..."}]} }, "context": [{"key": "base", "section": "S1", "kind": "part", "sha256": "..."}], "measurements": { "gates": {"containment": {"file": "exports/gates/containment.json", "sha256": "", "status": "pass", "pass": true, "stale": null, "checks": 12, "section_checks": [{"id": "contains:hopper_cavity:ball#0:inside", "status": "pass", "message": "..."}]}}, "missing_gates": ["motion"], "lint": {"file": null, "computed": true, "sha256": "", "status": "pass", "pass": true, "stale": null, "section_checks": []} }, "findings": [ {"id": "F1", "gate": "containment", "check": "contains:hopper_cavity:ball#3:inside", "status": "fail", "message": "...", "parts": ["ball#3", "hopper"], "scope": "section", "stale": null, "witness": [{"label": "furthest_outside_point", "point": [31.0, 4.2, 40.0]}], "views": ["findings"]} ], "views": [ {"id": "cut-cavity-hopper_cavity", "kind": "cut", "file": "cut-cavity-hopper_cavity.png", "sha256": "", "caption": "S3 Hopper and feed: cut through hopper_cavity, side", "note": "...", "camera": [0, -1, 0], "clip": {"origin": [30, 30, 40], "normal": [0, 1, 0]}, "fit": {"min": [8, 8, 2], "max": [62, 62, 84]}, "target": {"cavity": "hopper_cavity", "part": "hopper", "contains": ["ball"]}, "keys": ["hopper", "ball#0", "..."], "offsets": {}, "pose": null, "callouts": []} ], "rendered": 11, "dossier_digest": "", "options": {"explode": 1.0, "context": "neighbours"}, "render": {"size": [1400, 1000]}, "checklist": { "schema": "cad-agent.render-checklist/1", "instructions": ["Read measurements and findings before the images", "..."], "answers": ["yes", "no", "unclear"], "measured_only": [{"id": "count", "topic": "how many items there are", "answered_by": ["gate:containment"]}], "items": [{"id": "contained-inside", "kind": "cut", "per": "cavity", "bad_answer": "no", "gate": "containment", "question": "In the cut through {cavity}, is every {what} ..."}], "questions": [ {"id": "contained-inside:hopper_cavity:ball", "item": "contained-inside", "question": "In the cut through hopper_cavity, is every ball fully inside the inner wall of hopper?", "views": ["cut-cavity-hopper_cavity", "cut-cavity-hopper_cavity-plan"], "bad_answer": "no", "gate": "containment"} ] }, "not_rendered": [{"what": "joint I12", "why": "planar joints have no range to pose"}], "limits": ["Renders are for diagnosis, not proof: ...", "..."], "physical_fit_verified": false } ``` Field notes: - **`parts`** holds the section's parts and the placed fasteners that clamp or thread into them. `sha256` is the hash the geometry record holds for the part (`parts..sha256`, a hash of its instance hashes; for a fastener, of its placed instances): the same hash a reviewer record (`dossier/reviews/*.json`, T11) binds in its `hashes`. `section_hash` changes when any of them does. - **`measurements`** comes before the views on purpose: a reviewer (and the site) reads it first. Per gate: `sha256` is `verdict_digest` of the verdict quoted (its canonical JSON), `status` and `pass` its own, `checks` how many it has; `stale` is null for a current verdict, else the reason (`cadagent.gates.verdict.stale_reason` against the geometry record and, for a project, the gate's declarations and options, as `cad-agent check` judges it: an old verdict is shown as stale, not as a pass). `section_checks` are the verdict's checks that name a section part, an instance of one, a fastener of the section, or a cavity of a section part. `missing_gates` lists the gates a section card names in `checks` that have no verdict. `lint` is the dossier lint, which `review_packet` runs itself when it plans (the lint file records no inputs, so it cannot say whether it is current), so its `file` is null and `computed` true (a lint passed in from a file names the file, is marked stale, and makes the packet stale); its `section_checks` are only those that are not passing. `section.status` and `blocked_by` come from the same lint run. - **`findings`** are the failing and warning checks among them (and every failing check that names no known part, with `scope: "unattributed"`, since it may concern any part). `stale` is the stale reason of the verdict it comes from (null when current). `views` names the views that show it (`findings` when it has a callout). `witness` collects the 3D points in the check's evidence (keys containing `point` or `centroid`, nested witnesses included), at most four per finding. The `findings` view numbers them F1, F2, ... as callouts; a finding without a point is listed, not drawn. - **`views`**: `file` is null for a view not rendered (`only=`); `rendered` counts the views with an image (0 in a plan). `options` are the planning options and `render` the rendering ones (`size`; null in a plan): an earlier image is reused by `only=` only when both, the section hash, the geometry digest and the context all match. `keys` are the assembly keys drawn in the section's colours (plus the context parts in an access view); `offsets` (`{key: [dx, dy, dz]}`) the exploded displacements; `pose` (`{interface, kind, value, unit, body, keys, axis}`, plus `slide_mm` for a cylindrical joint) the joint position shown, as an offset from the modelled position, right-handed about the axis; `callouts` (`[{code, finding, label, point, text}]`) the numbered witness points; `fit` the box the camera frames. `camera` is a named view (`iso`, ...) or the direction from the scene to the camera; `clip` keeps the side its normal points to. - **`not_rendered`** lists what the packet could not show and why: a card with no shape, a planar or ball joint (no range to pose), a fastener without axes, parts no step places (drawn in place in the exploded view). - **`checklist`** is the machine-readable render checklist (below), instantiated for this section: one question per applicable item and target, each naming the views that answer it. - **`context[]`**: each context item's assembly key, its section (empty for a fastener), `kind` (`part` or `fastener`) and content hash. - **Staleness.** `cadagent.packet.packet_stale(manifest, record, verdicts=None, expected=None, lint=None)` is None while the packet is current evidence, else the reason: the geometry record changed; the packet quoted a verdict that was already stale, or a lint read from a file; or, given the current verdicts (with each gate's expected declarations and options) and lint, one of them was rewritten, added or removed, or is stale now (a dossier edit that changes a gate's declarations makes the quoted verdicts stale without touching the geometry). With `current=` (the packet planned again), it is also stale when the dossier text it quotes changed: `dossier_digest` covers the section's title, purpose and requirements, each part's function and decisions and the checklist questions (top-level `dossier_digest` in the manifest). `project_packet_stale(manifest, root)` gathers all of that for a project, kernel-free. A packet is evidence only for the hashes and verdicts it lists. ## The render checklist (`cadagent.packet.CHECKLIST`) Specific yes/no questions, each tied to a view kind (plan §5.2). `per` says what an item is asked for: once per section, or once per cavity and contents (from the cards' `contains`), joint, fastener group, access direction or pose. `answers` are `yes`, `no` or `unclear`; `unclear` is a valid answer and is never read as a pass. `bad_answer` is the answer that is a finding. | Item | Asked of | Question (templated) | Finding when | |---|---|---|---| | `contained-inside` | `cut-cavity-*` (side and plan) | In the cut through {cavity}, is every {what} fully inside the inner wall of {part}? | no | | `joint-bearing` | `cut-joint-*` | In the cut through {interface}, does {moving} turn or slide on a real bearing feature of {fixed} (a bore around the pin, a slot around the slider), with no material in its path? | no | | `fastener-stack` | `cut-fastener-*` | In the cut through {fastener}, does the head sit on {clamps} and does the thread end inside {into}? | no | | `mating-feature` | `exploded` | In the exploded view, does every part have a visible mating feature (bore, boss, slot, seat, screw hole) that meets one on its neighbour? | no | | `assembly-order` | `exploded` | Does the explode order (later steps further out) look buildable: nothing shown going in through a part fitted before it? | no | | `plain-box` | `solid-iso`, `solid-rear` | Does any part appear as a plain box with no features where a mechanism or interface should be? | yes | | `matches-card` | `solid-iso`, `solid-rear` | Does every part look like the function its card states (`parts.*.function`)? | no | | `floating` | `solid-rear` | Is anything floating in the opposite iso: a part with nothing visibly holding it? | yes | | `hidden-overlap` | `xray-iso` | In the x-ray, does any part sit inside another part's material where no insert or press fit is declared? | yes | | `fastener-access` | `access-from-*` | Looking along the screws' axis from the tool's side, is every head of {fasteners} visible and unobstructed? | no | | `motion-contact` | `pose-*` | At this end of {interface}'s range ({value}), does {moving} touch anything other than its declared contacts ({contacts})? | yes | | `findings-located` | `findings` | Is each numbered callout on the parts its finding names? | no | **Not asked of an image** (`MEASURED_ONLY`): how many items there are, gaps and clearances under about a millimetre, wall thickness, thread engagement and screw length, overlap volumes, and whether something moves clear between the drawn poses. The gates measure those; the checklist names the gate for each and tells the reviewer to read it from `measurements` instead. When a measurement and an image disagree, the measurement wins and the disagreement is itself a finding (a wrong declaration, or a view that misleads). ## How a reviewer uses it The reviewer pass ([`dossier.md`](https://cad-agent.valpatel.com/docs/dossier.md#the-reviewer-pass), plan §5.3) copies this manifest and its images into the reviewer's bundle (`cad-agent review-section

`) with the section YAML, the gate verdicts and the diff since the last sign-off. The reviewer reads `measurements` and `findings` first, then answers every question in `checklist.questions` from the views listed with it, and submits a record bound to the part hashes in `parts.*.sha256`. Each answer names the views it was read from and says whether it rests on the images alone: ```json {"checklist": [{"id": "contained-inside:hopper_cavity:ball", "answer": "yes", "evidence": "...", "views": ["cut-cavity-hopper_cavity-plan"], "image_only": false, "measurements": ["gate:containment"]}]} ``` A sign-off needs the packet to be current (`project_packet_stale` is None): render it again after the gates run. ## Limits The packet shows the model, not the part: renders do not prove fit, strength or that a mechanism works. A view is tessellated (chord error), so a small gap or overlap can look closed or open; that is why the checklist does not ask for one. Cut planes are fixed (through a cavity's box centre, through an axis); a defect away from the plane is only seen in the other views. Poses are the declared range ends, not the path between them (the motion gate samples the path). Exploded offsets are illustrative: their direction comes from the declared steps, their length from the section's size. --- Source: https://cad-agent.valpatel.com/docs/subassembly-insertion.md # Rigid subassembly insertion A preassembled module needs two separately checked sequences: its internal bench assembly and its insertion into the parent. Treating its components as independent parent steps invents an installation order and can claim tool access in the wrong surrounding geometry. Additive Python API (issue #68): ```python assembly_gate(assembly, parent_steps, fasteners=specs, tools=tools, subassemblies={ "electronics": { "members": ["carrier", "board", "insert", "board_screw#0", "board_screw#1"], "steps": bench_steps, }, }, service_after={"electronics": ["bumper", "retainer#0", "retainer#1"]}, ) # parent_steps contains an ordinary fit="electronics", direction="-X" step. ``` `members` names exact existing geometry instances, including every attached fastener solid. Members must be known, unique and disjoint; a module name cannot shadow a part or fastener. Nested modules and changed internal poses are outside this first API. Internal fasteners must connect only members of that module, with all their solids represented. External retainers remain parent fasteners with their actual geometric identities. The internal plan is executed against only its members, using the same geometry, insertion directions and tool envelopes. Missing coverage, failed checks or unperformed insertion/tool checks prevent a qualified parent result. Scoped qualification therefore rejects `tool_access=False`; all steps need a direction. Internal screws are not driven again at the parent step. The parent treats the module as rigid: every member receives the same translation, and every member, including attached screw solids, participates in collision checks. A module name is not a blanket intended-overlap exemption; existing explicitly declared internal pair overlaps keep their recorded reason. Cross-boundary overlap exemptions are unsupported and rejected. `service_after` is conditional evidence: listed parent parts/fastener instances are assumed already removed. Unknown, duplicate, target-member or otherwise ambiguous prerequisites are rejected. All external retaining fasteners must be listed. The whole module's reverse insertion path is checked against all remaining final geometry. This does not prove that the listed prerequisites can themselves be removed, that their tools can reach, or that harnesses are disconnected. Those claims need separate evidence. Internal fasteners travel with the module and are not removal prerequisites. The ordinary `service=True` or `service=[module]` mode cannot silently stand in for module prerequisites: requesting a module that way requires its `service_after` entry. Explicit service targets must resolve to parent parts or modules. Individual module members (including instance-owner aliases), unknown names and fastener-only targets are rejected before geometry; member teardown is outside this API. A module's conditional withdrawal does not answer a request to remove one of its members. Supported parent part aliases are expanded to exact instances, each with its own service check. Other individual parent parts retain their existing service behavior. A conditional pass means only that withdrawal is clear in the stated remaining geometry; it is not an unconditional service-ready claim. Existing single-part calls and their verdicts remain unchanged. The first interface is Python-only, through `run_sequence`, `assembly_gate` and the keyword pass-through in `assembly_from_build`; it does not silently extend registry/YAML/CLI schemas. Internal results and parent results are separate in JSON/Markdown. The adapter does not change the separate fastener-engagement, connectivity, tolerance or motion gates. Declaring a module rigid is an assumption, not proof that its joints hold it rigid. Validation in `tests/test_gate_subassembly.py`: kernel-free structural/order/coverage and scoped-tool tests; rigid member and attached-screw path blockers; rejected cross-boundary/partial fastener declarations; failed internal-plan propagation; conditional removal with retained versus removed obstacles; unknown kernel responses; small BREP positive/negative fixtures. Existing assembly and fastener suites remain regressions. The same straight-line sampling, rigid geometry and tolerance limits apply: a model pass does not prove printed fit, strength, service ergonomics or hardware readiness. --- Source: https://cad-agent.valpatel.com/docs/toolkit.md # cad-agent toolkit: verification and review reports for 3D-printed CAD projects `cad-agent` runs a CAD project's build and checks, verifies its print files, and turns the results into a standalone HTML report and a review package. It is generic. The geometry and the design-specific checks stay in the project; the toolkit (Python package `cadagent`) provides the runner, the 3MF writer, shared geometry screens, the renderer, link validation, the report, packaging and a local server. ```bash pip install -e ".[cad]" # in the cad-agent checkout; or install it into the project's own venv cd my-cad-project cad-agent all # build -> export-3mf -> check + report -> package cad-agent check # re-collect results; exit 1 if anything fails cad-agent report --open # exports/cad-agent-results.json + docs/cad-agent-report.html cad-agent serve --port 8000 # needed for "Open in Bambu Studio" links ``` Without the console script, `python -m cadagent.cli ` does the same. The toolkit started as `vptest cad` in the vptest framework; projects set up for it keep working (see [Coming from vptest](#coming-from-vptest)). ## The project contract ``` my-cad-project/ cad-agent.yaml # cad: section (below) cad/parameters.json # the single parameter authority (dimensions, clearances, revision) cad/build.py # builds every part; exposes print_parts() and the print rotations tools/*.py # project-specific checks, renders, docs; one JSON per check exports/ # .stl/.3mf/.step, geometry-checks.json, .json, logs preview/ # renders (part-.png per part) + gallery index.html docs/ # engineering review pages, BOM, registers, cad-agent-report.html ``` 1. **One parameter authority.** Every dimension, clearance and the `revision` live in `cad/parameters.json`; scripts read it, nothing restates a number. 2. **`cad/build.py`** exposes `print_parts() -> {name: cadquery.Shape}` and a print-rotation table. Its `__main__` writes, per part, STEP in assembly coordinates and STL in print orientation, and the parts file `exports/geometry-checks.json`: `{part: {cad_valid, solid_count, watertight, print_bounds_mm, ...}}`. `cadagent.geometry` does the generic part: ```python from cadagent.geometry import export_print_stl, solid_report, pairwise_intersections report = {n: export_print_stl(s, OUT / f"{n}.stl", rotation=PRINT_ROTATION.get(n)) for n, s in print_parts().items()} # raises on a non-watertight STL ``` 3. **Each check is a script** in `tools/` that writes `exports/.json` with a top-level boolean `"pass"`. A check that cannot compute its answer writes `"pass": false` with the reason; it never omits the file or the key. 4. **Renders** go to `preview/`; `preview/part-.png` is picked up as the evidence image for that part. `cadagent.render.Renderer` renders cadquery shapes or STL files offscreen with a caption bar, subtitle, note bar and leader labels; set `CAD_AGENT_RENDER_ONLY=a.png,b.png` to re-render a subset. 5. **A gallery page** (`preview/index.html`) can embed the per-part download table from `cadagent.report.downloads_snippet(project, page_dir=...)`: thumbnail, STL / 3MF / STEP links and a slicer link. ### Honest evidence - CAD checks never claim physical fit. Every check JSON that touches fit should carry `"physical_fit_verified": false` (and `"slicer_run": false` for print screens) until someone has printed and fitted the part. The report records both as false and says so in a banner. `cad-agent` has no way to set them true. - A check is green only when its `pass_key` value is the boolean `true`. A missing file, missing key, `"yes"`, `1` or a list all count as failures. - In the results and the report, a row status other than the known pass, fail and skip spellings counts as a failure, never as a pass. - The overhang screen (`geometry.downward_area`) is a screen, not a slicer. - `export-3mf` re-reads every 3MF it writes and deletes it unless triangle count, edge-manifold watertightness and volume (within 0.1 %) match the STL. ### Print files | File | Orientation | Notes | |------|-------------|-------| | `exports/.stl` | print orientation, lowest point on z=0 | degenerate faces removed; must be watertight | | `exports/.3mf` | print orientation, centred on `printer.bed_mm` | written by `cad-agent export-3mf`, read back and verified; byte-reproducible (fixed zip dates), so a rebuild of unchanged geometry keeps the slice report current | | `exports/.step` | assembly coordinates | for CAD review and re-use | "Open in Bambu Studio" uses `bambustudio://open?file=&name=`. The slicer fetches the file over http, so the link only works when the page is served (`cad-agent serve`); from `file://` the link downloads the 3MF instead. ## The `cad:` section of `cad-agent.yaml` `cad-agent` reads `/cad-agent.yaml` when it exists, otherwise `/vptest.yaml`. Only the `cad:` section is read; other top-level sections (such as vptest's `project:` and `projects:`) are ignored. The first file found is the config: a `cad-agent.yaml` without a `cad:` section is an error even if `vptest.yaml` has one. | Key | Default | Meaning | |-----|---------|---------| | `name`, `title` | folder name | identity in reports and package names | | `revision` / `revision_from` | none | literal, or `"path/file.json:dotted.key"` read at report time | | `python` | `/.venv/bin/python`, else cad-agent's python | interpreter for the steps | | `exports_dir`, `preview_dir`, `docs_dir` | `exports`, `preview`, `docs` | | | `steps` | `[]` | `{name, run, log?, timeout_s=1800, needs?}`; `run` is a script relative to the root, run with cwd = root and `CAD_AGENT_PROJECT` set to the root; `log` is a file in `exports_dir`; `needs` names earlier steps | | `parts_file` | `exports/geometry-checks.json` | part -> `{cad_valid, solid_count, watertight, print_bounds_mm}` | | `part_ids` | `{}` | part -> display id (`P1`) | | `checks` | `[]` | `{id, title, file, pass_key="pass", evidence?, links?}`; `pass_key` may be a list (all must be `true`) | | `printer` | none | `{name, bed_mm: [x, y, z]}`; parts must fit; 3MF files are centred on it | | `package` | none | `{name, include: [globs]}`; zip + `-manifest.json` (sha256) in `exports_dir` | | `release` | every part, default source globs | the print release (`cad-agent release`): see [the print release](#the-print-release-cad-agent-release) | | `serve` | `127.0.0.1`, port 0 (any free) | `{host, port}` | | `html_pages` | `[]` | HTML / Markdown pages whose local links must resolve | Unknown keys are reported as a warning, not an error. ### Worked example: j501-agx (Jetson AGX Orin enclosure) ```yaml cad: name: j501-agx title: reServer J501 / Jetson AGX Orin enclosure revision_from: cad/parameters.json:revision printer: {name: Bambu Lab P1S, bed_mm: [256, 256, 256]} steps: - {name: build, run: cad/build.py, log: build.log} - {name: export-3mf, run: tools/export_3mf.py, needs: [build]} - {name: clearances, run: tools/check_clearances.py, log: carrier-clearances.log, needs: [build]} - {name: shells, run: tools/check_shells.py, log: shell-clearances.log, needs: [build]} - {name: assembly-paths, run: tools/assembly_paths.py, log: assembly-paths.log, needs: [build]} - {name: print-review, run: tools/print_review.py, needs: [build]} - {name: design-metrics, run: tools/design_metrics.py, log: design-metrics.log, needs: [build]} - {name: mounts, run: tools/check_mounts.py, needs: [build]} - {name: storage, run: tools/check_storage.py, needs: [build]} - {name: docs, run: tools/write_docs.py} - {name: check-sheet, run: tools/check_sheet.py} - {name: detailed-assembly, run: tools/detailed_assembly.py, log: detailed-assembly.log} - {name: render, run: tools/render.py, log: render.log} - {name: package, run: tools/package_review.py} - {name: validate, run: tools/validate_review.py} part_ids: {base: P1, base_mount: P1M, cover: P2, front_gmsl: P3, front_no_gmsl: P4, rear_io: P5, mount_fit_template: P9, side_hatch: P10, m3_insert_coupon: P11, rail_coupon: P12, rail_key: P13, countersink_coupon: P14} checks: - {id: carrier, title: Carrier and hardware clearances, file: exports/carrier-clearances.json, evidence: [preview/open.png]} - {id: shells, title: Open-shell clearances, file: exports/shell-clearances.json} - {id: paths, title: Plate insertion paths, file: exports/assembly-paths.json, evidence: [preview/exploded.png]} - {id: mounts, title: Mounting tabs and driver access, file: exports/mount-checks.json, evidence: [preview/mount-clearance.png]} - {id: storage, title: Storage trays and underside slots, file: exports/storage-checks.json, evidence: [preview/storage-stack.png]} - id: review title: Review validation file: exports/review-validation.json # this file has no top-level "pass"; every listed key must be true pass_key: [all_parts_single_valid_watertight, plastic_intersections_zero, carrier_and_hardware_pass, open_shell_pass, mount_checks_pass, assembly_paths_pass, nominal_P1S_bounds_pass] package: name: j501-agx-fit-check include: [README.md, requirements.txt, cad/parameters.json, "docs/*", "exports/*.stl", "exports/*.3mf", "exports/*.step", "exports/*.json", references/sources.json] html_pages: [preview/index.html, README.md, docs/engineering-review.html] ``` Migration notes for this example. `tools/export_3mf.py`, `tools/package_review.py` and `tools/serve_preview.py` duplicate `cad-agent export-3mf`, `package` and `serve`; once those commands are adopted, drop the matching steps. Otherwise `cad-agent all` writes the 3MF files twice (harmless) and two packages. `tools/validate_review.py` can stay as a project check or give way to `cad-agent check`, which covers parts, print files, the configured checks, local links and, with `cad: dossier:` (or `cad: gates:`), the integrity gates' verdicts and the dossier lint. A YAML flow mapping ends a value at the first comma, so a title with a comma must be quoted: `{id: storage, title: "Storage trays, cable routes", file: ...}`. Unquoted, the title is cut at the comma and the rest becomes a stray key. ## Commands | Command | Does | Exit code | |---------|------|-----------| | `cad-agent build [--from STEP] [--only STEP ...]` | runs steps in order with the project python; per-step timing; stops at the first failure and prints the log tail | 1 on a failed step | | `cad-agent export-3mf` | `.stl` -> verified, bed-centred `.3mf` for every part in the parts file | 1 on a read-back mismatch | | `cad-agent holes [PART ...]` | checks every hole in every part is clear of material: finds the cylindrical holes and countersinks in `exports/.step` (concave, at least 200° of wall, up to 30 mm across), probes each with a cylinder or cone just inside its wall, and writes `exports/hole-checks.json` bound to each STEP's sha256; `all` runs it and the report's "Holes clear" rows fail on material in a hole, a stale result or a check that did not run (config `cad: holes:`, [below](#holes-clear)) | 1 if a hole has material inside | | `cad-agent check [--json]` | collects results (no build), prints a table or the results JSON | 1 if any row fails | | `cad-agent report [--open]` | writes `exports/cad-agent-results.json` (schema 1.0, the vptest web shape, so `vptest web validate` and its renderer still accept it) and a standalone `docs/cad-agent-report.html` with inline styles (light and dark) that opens from `file://` | 1 if any row fails | | `cad-agent package` | zip + sha256 manifest from `package.include` | | | `cad-agent release [--out DIR] [--no-zip] [--revision TEXT] [--date D]` | the print release: `release/-rev/index.html` (parts with thumbnails, print settings, slicer mass and time, STEP/STL/3MF links; assembly pages; hardware; source) and a reproducible zip next to it ([below](#the-print-release-cad-agent-release)) | 2 on a bad config (a path outside the project), a missing part file or a foreign `--out` folder | | `cad-agent serve [--port N] [--host H]` | serves the project root; writes the URL to `preview/server-url.txt` | | | `cad-agent site [--serve]` | builds `site/` from milestones, decisions, a designs summary, Markdown pages and git history (config `cad: site:`); `--serve` rebuilds on change and serves the web kit at `/_cadagent/kit/`. One top bar links every page: `site: nav:` (`[{id, title, href}]`, hrefs from the project root) or, when unset, the overview, docs, 3D model and each `html_pages` page plus the check and simulation reports, the design comparison and the search leaderboard. The server adds the bar to every HTML page it sends (files on disk unchanged; a bar the page mounts itself wins; `` opts a page out). A project with a `dossier:` or `gates:` key also gets the review pages in `site/review/`: a page per dossier section, the requirements table and the gates page with the connectivity graph ([dossier.md](https://cad-agent.valpatel.com/docs/dossier.md#on-the-review-site)) | | | `cad-agent view` | writes every part in assembly position to `exports/view/` (STL + `view.json`) for the 3D viewer (config `cad: view:` for colours, hidden variants, explode directions, extra parts from STEP or STL, list categories) | | | `cad-agent webkit [DEST]` | copies the web kit (3D stage, model viewer, HUD panels, three.js, fonts) into the project, default `web/kit` | | | `cad-agent dossier [--json] [--no-write] [--min-status S]` | lints the design dossier (`cad: dossier:`) against the build's geometry record, the gate verdicts, the configured checks and the reviewer records; writes each section's and part's status to `exports/dossier-status.json` and the lint verdict to `exports/gates/dossier-lint.json` ([dossier.md](https://cad-agent.valpatel.com/docs/dossier.md#lint-and-status)) | 1 on a lint error or a section below `--min-status` (default `gated`) | | `cad-agent review-packet [SECTION ...] [--list] [--view V ...] [--size WxH] [--explode F] [--context C]` | renders each dossier section's review packet into `exports/review/

/` with `manifest.json` (`cad-agent.review-packet/1`): the gate measurements and findings first, captioned views with content hashes, the render checklist ([review-packet.md](https://cad-agent.valpatel.com/docs/review-packet.md)); `--list` plans without rendering | 2 on an unknown section or with no geometry record | | `cad-agent review-section SECTION [--bundle-dir DIR] [--since REV]` | writes the reviewer's prompt bundle into `exports/review-bundle/

/` (`cad-agent.review-bundle/1`): the section YAML, the gate verdicts for its parts, the packet manifest and images, the checklist, the diff since the last sign-off and a record template ([dossier.md](https://cad-agent.valpatel.com/docs/dossier.md#the-reviewer-pass)) | 1 while a sign-off would be refused (stale packet, section below `gated`, open decision, unknown builder); 2 on an unknown section or with no build | | `cad-agent review-section SECTION --submit RECORD` / `--check RECORD` | checks a filled-in reviewer record against the current build (hashes current, the reviewer, `CAD_AGENT_ACTOR`, is not the section's builder or author, every question, decision and requirement answered; for a sign-off: packet current, no open decision) and writes `dossier/reviews/

-.json` (`--check` writes nothing) | 1 when the record is refused | | `cad-agent gates [--only G ...] [--skip G ...] [--jobs N] [--no-cache] [--build] [--dry-run]` | runs every integrity gate that applies to the dossier geometry, each in its own process, then the dossier lint; writes `exports/gates/.json` and `.md`, bound to their inputs (config `cad: gates:`, [gates.md](https://cad-agent.valpatel.com/docs/gates.md#running-the-gates-cad-agent-gates)) | 1 if a gate (or its build) fails; 2 without a `dossier:`/`gates:` key, on a bad config, or with no geometry record and no build | | `cad-agent all` | build, export-3mf, holes, gates and the dossier lint (when `cad: dossier:` or `cad: gates:` is set), check + report, package | 1 if anything failed | | `cad-agent catalogue [--json] [--errors-only]` | checks the part catalogue and every design against it (config `cad: explore:`, [explore.md](https://cad-agent.valpatel.com/docs/explore.md)) | 1 on an error | | `cad-agent compare [DESIGN ...] [--swaps] [--workers N] [--json] [--open]` | evaluates the designs with the project's evaluator, ranks them (Pareto fronts over the objectives) and writes `comparison.json`, `compare.html` and site design cards; `--swaps` tries every one-part swap | 1 if a design could not be evaluated | | `cad-agent optimise [--trials N] [--workers N] [--sampler S] [--fresh]` | searches slots and parameters (random, grid; NSGA-II and TPE with optuna) and keeps a leaderboard | 1 if no trial is feasible | `--project PATH` (default: cwd), before or after the subcommand, selects the project. Exit code 2 means the project or environment is unusable: a missing or invalid `cad:` section, a missing build output, or a missing optional dependency. cad-agent names the dependency and the `cad` extra and does not skip the work silently. ## Python API ```python from cadagent.project import load_project # CadProject, Step, Check, CadConfigError from cadagent.geometry import (solid_report, export_print_stl, pairwise_intersections, min_gap, downward_area, within_bed) from cadagent.mesh3mf import write_3mf, read_3mf, verify_3mf, export_parts_3mf, is_edge_manifold from cadagent.render import Renderer from cadagent.report import collect, write_report, downloads_snippet, bambu_studio_url from cadagent.htmlreport import render_page, canonical_status, SCHEMA_VERSION from cadagent.links import missing_links from cadagent.connectors import (PLUG_FAMILIES, plug_segments, window, window_margins, PanelFrame, envelope, check_ports, draw_ports) from cadagent.package import build_package from cadagent.serve import make_server from cadagent.fea import Study, MATERIALS, Material, plane_at, cylinder_at, in_box, near, any_of from cadagent.robot import (Body, combine, box_body, cylinder_body, solid_mass_properties, printed_part_body, Link, Joint, Visual, Collision, Motor, write_urdf, write_mjcf, check_urdf) from cadagent.explore import (explore_config, load_configured, check_catalogue, load_design, resolve, bom, load_evaluator, evaluate_design, compare_designs, comparison, write_comparison, swaps) from cadagent.explore.optimise import run_search from cadagent.gates import (Assembly, Tolerances, relation_table, relate_pair, relate, solid_interference, PairCache, shape_content_hash, Check, verdict, write_verdict) from cadagent.gates.wall import check_wall, wall_gate, mesh_thickness, brep_thickness, brep_thickness_near ``` ### Integrity gates (`cadagent.gates`) Assembly-level checks: the pairwise relation table (apart, touching, overlapping, contains, with witnesses and a content-hash pair cache), the verdict file every gate writes, and the minimum-wall gate. Reference and limits: [gates.md](https://cad-agent.valpatel.com/docs/gates.md). ### Explore and compare designs (`cadagent.explore`) For any product built from bought and made parts. A catalogue of parts (specs, prices with the date checked, sources, confidence flags), designs that pick one part per slot plus parameters, and the project's own evaluator (a Python function or any command speaking JSON) give every design its metrics and checks. `cad-agent compare` ranks the designs into Pareto fronts over the configured objectives, tries one-part swaps, and writes a standalone page and design cards for the site; `cad-agent optimise` searches parts and parameters (optuna's NSGA-II with the `explore` extra). The physics stays in the project. The full guide is [explore.md](https://cad-agent.valpatel.com/docs/explore.md); a worked example is [`examples/explore-two-wheel`](https://github.com/Valpatel/cad-agent/tree/dev/examples/explore-two-wheel/). ### Mating connectors (`cadagent.connectors`): standard practice for every port Every external port's window is derived from its **mated plug**, never from the receptacle's bounding box. A bounding box includes pins below the board, which pushes the window low, and it misses plugs that are larger than the receptacle: a screw-flange terminal plug is 15 mm tall on an 8.4 mm header. 1. **Identify the receptacle and its mate.** Get the receptacle's exact part from the schematic. For the mating plug, prefer the manufacturer's drawing or STEP; otherwise use a catalogue or typical value, recorded as an assumption in `basis`. 2. **Measure the face and axis.** Slice the board model at the mating face; exclude pins and pegs below the board. 3. **Describe the port in `parameters.json`** as a `mate` spec in the panel frame (u along the wall, v up, w out): ```json "mate": {"face": [u0, v0, u1, v1], "face_w": 2.08, "centre_on": "receptacle", "clearance": 0.5, "plugs": [{"family": "rj45", "cavity": [u0, v0, u1, v1], "latch": "up"}], "basis": "..."} ``` Families: `rj45`, `trs35`, `terminal_plug_flanged` (Phoenix MSTB STF), `overmold` (USB/HDMI/...), `face_plug` (plug already in the board model) and `box`. Add a family when a new plug type shows up. 4. **The build calls `window(mate, wall_w)`.** Only plug segments that start inside the wall's outer face (they pass through it on insertion) size the window. `centre_on` picks the visual centre: the receptacle face or the plug. 5. **A check step calls `check_ports()`** with the printed parts in assembly position. It sweeps each plug in from outside and requires: * zero interference; * zero interference after growing the plug by the clearance (corner radii included); * no plug-to-plug clash. `draw_ports()` makes the evidence image. Add the check to `checks:` and the review `pass_key`. Worked example: j501-agx `cad/ports.py`, `tools/check_ports.py` and `exports/port-checks.json`. ### 3D viewer (`cad-agent view` + the web kit) Works for any model: a housing, a bracket set, a mechanism or a robot. `cad-agent view` reads each part's STEP (assembly coordinates) and writes a binary STL per part plus `exports/view/view.json`. `viewer.html` in the web kit shows the assembly with a parts list (show/hide, colour), exploded view, section cut and standard views; the site links it when the manifest exists. Wheel zoom (and trackpad pinch) uses one-quarter sensitivity for closer inspection; middle-button drag and touch pinch keep full speed (`dragZoomSpeed`), and small trackpad deltas remain continuous at any device pixel ratio. Custom stages can pass `createStage(el, {zoomSpeed: 1})` for the earlier wheel sensitivity. Update copied web kits, or restart a served site after updating cad-agent. The viewer is scriptable for screenshots: `viewer.html?explode=0.5&view=iso&panel=0`. Show everything the parts fit around in the same viewer, not in a second one: `extra` entries add bought parts and reference boards from a STEP or an STL (`offset: [x, y, z]` mm moves the part into assembly position; `hidden: true` starts it off). A `category` on an entry (`parts_category` for the parts file; `categories: {Test coupons: [part, ...]}` moves parts by name) heads a section of the parts list with one box that shows or hides the whole section, e.g. *Printed parts*, *Cooler*, *Carrier board*. An extra whose file is missing is listed as not exported, so reference models that are not redistributed drop out of a fresh checkout. Configuration errors stop the export before anything is written: two parts with the same name (including an `extra` glob that matches a part from the parts file, which used to overwrite its mesh silently), an `offset` that is not three numbers, and a `categories` entry that is not a list, names a part that does not exist or lists a part twice. ### Stiffness and strength (`cadagent.fea`) `pip install -e ".[cad,fea]"`. `Study(shape_or_step, material, mesh_mm)` meshes any part with gmsh (P2 tetrahedra), `fix()`/`force()`/`torque()` pick faces with selectors (`plane_at`, `cylinder_at`, `in_box`, `near`, `any_of`). A `torque()` is a pure couple about the loaded faces' own centroid (no net force, exactly the torque along the axis); its `point` does not move the axis, so a force at a distance needs its own `force()`. Then `solve()` returns deflection, stiffness, the design von Mises stress and the safety factor against `MATERIALS` (printed materials carry their weak, layer-direction strength). Stress spikes in the elements touching a clamp or a load patch are artefacts of the idealised support, so the design stress and every failure view leave them out ("support patches": capped at the design stress, never shown as failed, their share of the surface reported). Stresses are element corner peaks, never averaged. The P2 strain is linear in a tetrahedron, so its extremes sit at the corners; the safety factor, the hot spots and the per-vertex colours all use the highest corner stress there. The volume-weighted average is exported too and shown as "smoothed". Where it falls well below the peak (a hot spot says so), the mesh is coarse for that gradient. `overstressed_share(load_factor)` is the share of the volume in elements whose peak is past the strength. It counts whole elements, so it is an upper bound on the overstressed volume. `animate()` and the viewer both report it. Showing how it fails, for the report: - `render(png)`: the deformed part coloured by stress. - `animate(mp4)`: the load ramped from zero through the design load to first failure (x safety factor) and past it; regions past the strength turn black, and every frame gives the overstressed volume share (an upper bound). - `export_viewer(json)`: data for the interactive viewer in the web kit (`fea-viewer.js`, `fea.html`). The boundary surface only (a few MB at most at ~100k tets), with per-vertex displacement, peak and smoothed von Mises stress, each triangle's element peak, held/loaded/support flags, the loads, the overstressed volume as an exact step curve over the load factor, and up to eight **hot spots**: the highest stresses away from the supports, at least 4 mesh sizes apart. Each has the load factor at which it reaches the strength, a plain hint from the CAD faces it lies on ("edge of a Ø5.5 hole", "R4 inside fillet", "flat face, 1.9 mm from an R4 inside fillet", "sharp inside corner"), and a mesh note when the smoothed value is far below the peak. Open a case with `kit/fea.html?case=../../exports/fea/-.json` (the kit copied by `cad-agent webkit`, or the copy `cad-agent site --serve` serves at `/_cadagent/kit/fea.html`). The viewer has: - a load-factor slider from 0 to 1.3 x the failure load, and a play button that ramps it (pausing at the design load and at first failure). Deformation and colours scale linearly. Triangles whose element is past the strength turn black (support patches never do), and the status card gives the peak stress and the overstressed volume share; - colour by stress/strength, stress, local safety factor or displacement, with a legend; - deformation exaggeration (true scale up to about 40 x), held faces in grey, and load arrows (curled for torques) labelled with the load at the current factor. Support patches can be greyed out ("not checked"); - the hot-spot list (click to fly there; numbered markers on the part), a section cut (axis and position; it cuts the surface skin, not the stress inside), a hover readout and a pinned probe (the peak stress, the smoothed stress, % of strength, local safety factor and displacement at a point; on a support patch it says "not checked"); - the assumptions: linear elastic, small deflection, isotropic with the weak-direction strength for prints. It shows where and at what load the part first fails, not crack growth. Links and screenshots can set the state: `&load=1.5&field=ratio|stress|sf|disp&spot=1&clip=x:0.4&exag=20&panel=0&play=1`. Values that do not parse are ignored, and `panel=0` hides the panel for that visit only. The page loads only cases and `back` links on its own origin, and `root` must be a relative path. From your own page, call `mountFeaViewer(element, url, { title, back, panel })`. It builds the kit layout inside the element and returns `setLoad`, `setField`, `setExaggeration`, `setClip`, `flyTo`, `play`, `fit` and `dispose` (call it before mounting another viewer on the same page). ### Robot export (`cadagent.robot`, optional) Turns CAD parts into a simulator model with real mass properties: - `solid_mass_properties(shape, density)` reads mass, centre of mass and inertia from the solid (OCP `BRepGProp`). - `printed_part_body(shape, density, wall_mm, infill)` estimates a printed part: solid perimeters and skins plus sparse infill, with the inertia scaled to that mass. It is an estimate, so weigh the printed part. - `box_body`, `cylinder_body` and `point_body` model bought parts from their catalogue mass. `Body` objects add with the parallel-axis theorem, so a link is the sum of everything bolted to it. - `write_urdf` and `write_mjcf` write the same link tree. The MJCF adds motors, joint armature and friction, an IMU site and a floor. Both refuse a closed loop: model a four-bar or five-bar leg as an equivalent serial chain. - `check_urdf` checks the tree, inertias (positive definite, triangle inequality), mesh files and joint limits. text-to-cad's `cadgen urdf validate` is a second, independent validator. ## Simulation and optimisation (standard practice for anything that carries load or heat) Built on mature open-source tools, never reimplemented: OpenFOAM for airflow and heat, gmsh + scikit-fem for stiffness and strength, pyMOTO for topology optimisation, Bambu Studio for real filament grams, PyVista/VTK for pictures and animations. The survey that chose them, with licences and sources, is [`research/simulation-tools.md`](https://cad-agent.valpatel.com/research/simulation-tools.md). Install: `pip install -e ".[cad,fea,sim]"`, plus Docker (OpenFOAM runs in the official `opencfd/openfoam-default` image) and Bambu Studio for slicing. **Standard practice.** For every design that holds a heat source, carries a load or will be printed in quantity: 1. **Slice it** (`cad-agent slice`): grams and print time per part, with the profile named. This is the number a material-reduction claim is judged on, never the CAD volume. The report shows `slicer_run: true` only while the sliced 3MF files are unchanged (sha256). 2. **Load it** (`cadagent.fea`): the real load cases (handling, stacking, mounting shock) with the printed material's layer-direction strength; report the safety factor and deflection, and the overload animation. 3. **Cool it** (`cadagent.cfd`): a conjugate-heat-transfer case of the enclosure in room air, from the same CAD. Report the hottest part against its limit, the fan's operating point, the air entering the fan (recirculation), and the wall temperatures against the plastic's heat-deflection temperature. 4. **Optimise with evidence**: topology optimisation (`cadagent.topopt`) shows where material carries load; the design change is made in the parametric CAD and re-checked by 1-3. Compare revisions side by side. 5. **State the limits** in every result (each module writes them): steady RANS, no radiation, compact models, linear elastic, isotropic. Simulation does not prove fit, strength or temperature; a test does. ### Airflow and heat (`cadagent.cfd`) `ThermalCase(name, domain, cell_mm, ambient_c)` takes CAD (CadQuery shapes, trimesh meshes or STL), in mm: - `wall(name, shape, level)`: no-slip adiabatic obstacles (enclosure, boards); - `solid(name, shape, material, power_w, level)`: a conducting region, optionally a heat source (`SOLIDS` table); - `contact(a, b, thickness_mm, k)`: a thermal pad or paste as an interface resistance; - `fan(Fan(...))`: an actuator disc with a straight-line fan curve between the datasheet's free-air flow and zero-flow pressure, so the operating point comes out of the simulation; - `porous_box(name, lo, hi, d, f, e1, e2, heat_w)`: a compact fin block (Darcy-Forchheimer, nearly closed across the fins) that releases the heat into the air passing through it; - `refine(lo, hi, level)`. `write()` produces a complete OpenFOAM case (snappyHexMesh, splitMeshRegions, chtMultiRegionSimpleFoam, function objects); `run()` runs it natively or in Docker; `results()` returns temperatures, fan flow and pressure, the air temperature through each fan, residual and temperature histories, the heat leaving with the air against the heat put in (`energy_balance_pct`), the cells each fan and fin zone caught, and the limits. `converged` needs the temperatures, fan flow and heat leaving to have stopped changing *and* the energy balance within 5 %. Exchanger fin blocks are set to their power by `calibrate_fins()` (secant steps on the fin temperature, only once the heat leaving has settled; `calibrated` says whether it got there). Two choices matter for honest numbers, and both are covered by tests: - **The open boundary is hydrostatic** (`p_rgh` uniform): still room air stays still. A uniform *static* pressure there drives a fake draft through the room (0.6 m/s mean in a still, unheated test room), which once made every J501 result optimistic. The opt-in test `test_still_room_stays_still` runs that case for real. - **Fan and fin sources are zone totals** (`volumeMode absolute`), so the fan's pressure rise and the fins' conductance do not depend on how many cells the zones catch. ### Heatsinks (`cadagent.heatsink`) `PlateFin(...)` is the analytic plate-fin model (developing laminar channel flow, fin efficiency, spreading resistance, entrance and exit losses; sources cited in the module): `resistance(q)`, `pressure_drop(q)`, `operating_point(hs, FanCurve)`, and `porous_coefficients()` for the CFD fin block. It runs in microseconds, so it is the tool for heatsink studies (fin pitch, thickness, height against a fan curve), with CFD to confirm the chosen design. ### Topology optimisation (`cadagent.topopt`) `TopOpt(lo, hi, voxel_mm, E_mpa)` with `design()`, `keep(shape)`, `void(shape)`, `fix(lo, hi)`, `load(lo, hi, N)`, then `run(volfrac, filter_mm, overhang='+z', maxit)`: minimum compliance with SIMP, a density filter (minimum member about twice `filter_mm`) and Langelaar's overhang filter for support-free printing, solved with MMA. `render()`, `animate()` (density evolution) and `export_stl()` show the result. It is a design guide: turn it into ribs, pockets or vents in the CAD and check that with FEA. ### Pictures and animations (`cadagent.simviz`) `CFDResult(case)` loads a finished case in mm and °C. `section()`, `flow()` (streamlines), `walls()` (wall temperature with the region past a limit in the critical colour, named in the legend), `animate_flow()` (dashes moving at the air's speed while the camera turns), `animate_sweep()` (a section sweeping through) and `convergence_chart()`. Colour follows the job: one-hue ramps for temperature (orange) and speed (blue), never a rainbow. ### Real grams (`cadagent.slicer`, `cad-agent slice`) Slices each part's 3MF with Bambu Studio's command line (an external AGPL program, run as a subprocess). The system profiles resolve `inherits`, then ordered `include` templates, then explicit child settings (unresolved profiles can report 0 g or retain generic startup G-code). Missing, cyclic, duplicate, malformed or escaping profile dependencies fail explicitly. `flatten(kind, name)` returns the resolved settings; `resolve_profile(kind, name)` also returns `files`, the relative paths and SHA-256 hashes of the exact consumed bytes. Individual slice results record those dependency hashes and the settings JSON hashes. These identities describe the captured inputs, not ongoing filesystem stability or validation of the resulting executable G-code. Inspect actual temperature waits and startup order before printing; a filament label or successful slice does not establish physical readiness. Configure under `cad.slicer`: `printer`, `process`, `filament` (`pla`, `petg` or a profile name), `overrides` (process settings) and `parts`. Writes `exports/slice-report.json`. ### The print release (`cad-agent release`) What someone who wants to *print and build* the design downloads, as opposed to the review package (`cad-agent package`), which carries the evidence. `cad-agent release [--out DIR] [--no-zip] [--revision TEXT] [--date YYYY-MM-DD]` writes `release/-rev/` (or `DIR`) and `.zip` next to it (with `--out DIR`, the zip is `DIR.zip`): | Path | Content | |---|---| | `index.html` | one standalone page (inline CSS, light and dark, no scripts, opens from `file://`): the release's parts and totals, the recommended print settings (`cad.slicer`, else those of a current slice report; with neither, the page says no slicer settings are configured), then each group of parts (with its own count, mass and time) as cards: thumbnail, quantity, material, notes, mass and time per copy, and the STEP, STL and 3MF; then the assembly pages, the hardware table and the source | | `cad/` | `.step`, `.stl`, `.3mf` from `exports_dir`, plus `extra_cad` | | `images/` | the thumbnails | | `docs/` | the `pages`, and the images they link to, at their project paths, so their relative links keep working; links to files the release carries elsewhere (`cad/`, `source/`) are rewritten in the copies; Markdown is also rendered to HTML (with the `markdown` package) | | `source/` | the files matched by `include` minus `exclude` | | `manifest.json` | `format: cad-agent.release/1`, `revision`, `date`, `git` (`commit`, `dirty`, `modified`, `untracked_released`), `slicer`, `parts` (`part`, `group`, `optional`, `pick_one`, `quantity`, `grams`, `minutes`), `build` (`title`, `parts`, `grams`, `minutes`; null without one; `grams` and `minutes` are null while any of its parts is not sliced), `warnings`, and `files` (the sha256 of every file) | Rules the command enforces: - **Inside the project only.** Every configured path and glob must be relative, without `..`; a file that resolves outside the project (a symlink) is skipped with a warning, and nothing is written outside the release folder. - **No hidden or git-ignored files** from globs (`.env`, a gitignored vendor STEP; tracked files, even force-added ones, are kept); each skip is a warning, and so is a git error that stops the ignore check. Any file over `max_file_mb` (default 20) is a warning. - **Slicer numbers only while current:** a part's mass and time are shown only when the slice report was made with the settings `cad.slicer` names now and the part's 3MF still has the sha256 recorded for it; otherwise the card says **not sliced** and the totals leave it out (run `cad-agent slice`). - **Honest counts:** the page counts the parts in the release and each group's parts. It does not claim a number of pieces to print, because groups may hold alternatives (`pick_one: true`: one of two bases; its count line says "print one of these" instead of a total, and needs two parts or more) and optional parts (`optional: true`). With a pick-one group the page leaves out the filament and time over every part, which would add up the alternatives. For what one build takes, name it under `build`: the page's first figure is then that build's filament and time, at the listed quantities, while every part in it is sliced (otherwise it says "not sliced"). A build takes at most one part from a pick-one group; one that takes none from a group that is not optional is a warning. - **What was built:** the release copies the working tree; uncommitted changes to tracked files are a warning and are recorded in the manifest (`git.dirty`, `git.modified`) and on the page; released files that are not in git at all are a warning too (`git.untracked_released`), since the recorded commit cannot rebuild them. The date is `--date`, `cad.release.date`, `SOURCE_DATE_EPOCH`, else the last commit's date; outside git with none of them it is today, with a warning, so the release is not reproducible across days. - Parts in the parts file that no group lists are a warning. The folder is rewritten from scratch each run (a non-empty folder that is not an earlier release is refused); the zip has sorted entries with fixed dates, so the same files give the same bytes. ```yaml cad: release: title: J501 enclosure # default: cad.title revision: 0.9.1 # default: --revision, else cad.revision / revision_from groups: # or `parts: [a, b]`; default: every part in the parts file - {title: Enclosure, parts: [base, cover, rear_io], note: "Every build: one base and the cover."} - {title: Front plate (print one), parts: [front_gmsl, front_plain], pick_one: true} - {title: Drive storage, parts: [storage_35], optional: true} build: {title: Desktop build, parts: [base, cover, rear_io, front_plain]} # one complete build, totalled quantities: {rail_key: 2} # default 1 material: PLA # default: the filament in cad.slicer notes: # label -> text, shown on the part's card in this order cover: {orientation: roof down on the bed, supports: none} # quote values that contain commas thumbnail: "{preview}/part-{part}.png" # the default; only {part} and {preview} (preview_dir) extra_cad: [exports/assembly.step] # never vendor geometry pages: [ASSEMBLY.md, "docs/assembly/*"] hardware: docs/hardware.csv # or a list of mappings: [{item: M3 x 10, qty: "4"}] include: ["cad/**", "tools/**", cad-agent.yaml, "requirements*.txt", README.md, "LICENSE*"] # the default exclude: ["**/__pycache__/**", "**/*.pyc"] # the default max_file_mb: 20 date: 2026-10-29 ``` **Publishing.** The default `release/` folder is inside the project: add `release/` to `.gitignore`. Attach the **zip** to the GitHub release: GitHub serves release assets as downloads and does not render an attached `index.html`, and on its own that page's `images/`, `cad/` and `docs/` links would not resolve. Say in the release notes to unpack the zip and open `index.html`, or publish the folder with GitHub Pages to browse it online. ## Tests ```bash pip install -e ".[cad,dev]" pytest # or, with a CAD project's venv that already has cadquery, trimesh, vtk and PIL: PYTHONPATH=src /path/to/project/.venv/bin/python -m pytest tests -q ``` The geometry and render tests skip unless cadquery and vtk are importable. ## Coming from vptest | vptest cad | cad-agent | |------------|-----------| | `vptest cad ` | `cad-agent ` (same subcommands, options and exit codes) | | `vptest.yaml` | `cad-agent.yaml`; `vptest.yaml` is still read when `cad-agent.yaml` is absent | | `exports/vptest-cad-results.json` | `exports/cad-agent-results.json` (same schema) | | `docs/vptest-cad-report.html` | `docs/cad-agent-report.html` | | `VPTEST_CAD_PROJECT` (set for steps) | `CAD_AGENT_PROJECT`; the old name is still set | | `VPTEST_CAD_RENDER_ONLY` | `CAD_AGENT_RENDER_ONLY`; the old name is read when the new one is unset | | `from vptest.cad.x import ...` | `from cadagent.x import ...` | Pages that link to the old report or results file names need their links updated, or `html_pages` will report them as broken. ## Holes clear A rib, boss or skirt unioned after the holes were cut refills part of a hole. The part is still one valid watertight solid, and fit, FEA and slice checks all pass. `cad-agent holes` (run by `all`) catches it from each part's STEP with no declarations. A hole is a set of concave cylindrical faces on one axis whose wall reaches at least 200° around the circle, so a rib right across a hole still leaves one, while fillets and slot ends do not count. Holes are up to 30 mm across. Each hole is probed with a cylinder 0.05 mm inside its wall over its full depth; material inside above 0.05 mm³ fails, with the hole's axis, diameter, depth range and the centre of the intrusion. Coaxial holes in opposite walls are separate holes. Two same-size bores with a smaller hole through the solid between them are a stepped bore: the **ledge** is listed for a person to confirm, not failed. **Countersinks** (and any concave cone on a hole: chamfered mouths, drill-point tips) are checked the same way: the cone's faces are grouped by axis, apex and angle, and probed with a truncated cone 0.05 mm inside the surface. A rib that reaches into a countersink without touching the bore below it fails as `kind: countersink`, with the included angle and the two end diameters; a flat-head screw would not seat there. Cones are labelled by shape: `countersink` (truncated, 55–130° included), `drill point` (closes to its apex) or `tapered hole` (drafted holes and pockets); material in any of them fails. `max_diameter_mm` applies to a cone's largest diameter, so countersinks over 30 mm (M16 flat heads and up) are only checked with a larger limit, and a countersink cut beside a wall takes its largest diameter from the notch it leaves there. The result (`exports/hole-checks.json`) is bound to each STEP's sha256 and to the check's version and settings. A changed STEP or a changed `cad.holes` makes it stale, and a stale result fails its row like a failing one. `cad-agent holes PART` rechecks one part and keeps the others' rows. `--out FILE` writes elsewhere, for a reviewer who must not change the checkout. Expect about 10 s for a large enclosure part. ```yaml cad: holes: exceptions: # holes with material in them on purpose, each with its reason base: - {at: [1.25, 46.5, 62], diameter_mm: 6.6, reason: anti-rotation flat for the RP-SMA bulkhead (D-hole)} # at: a point on the hole's axis (part coordinates); radius_mm: how far from the axis it may be (default 0.5) skip: {gasket: printed in TPU without fastener holes} # parts not checked, with the reason # tol_mm: 0.05, min_volume_mm3: 0.05, min_arc_deg: 200, max_diameter_mm: 30 ``` Limits: - Only cylindrical and conical (countersink) holes are checked, not polygonal or helical-thread geometry. Only material inside the hole's own wall is measured, not tool or screw-head clearance beyond it. - **Known misses.** A hole capped at one end by a later feature reads as a blind hole. A counterbore blocked right across, with a smaller hole cut through the block, reads as a ledge. Look at the listed ledges and the blind holes in a section view. - A block from one side that covers half the hole or more over its full depth leaves too little wall to count as a hole; it reads as a slot end. Look at blocked holes in a section view. - Concentric openings under 30 mm that are not holes fail: a small fan guard's rings, or a recess around a post. List them as exceptions. [common-issues.md](https://cad-agent.valpatel.com/docs/common-issues.md) lists this check with the other recurring review findings. --- Source: https://cad-agent.valpatel.com/docs/volume-precision.md # Curved-solid volume precision Tracking: issue #70. This investigation concerns numerical volume measurement in the generic relation gate. It does not qualify hardware fit or weaken collision/volume-conservation tolerances. A private manufacturer screw/insert fixture from Gyropup produced a default measured cut volume larger than the original solid. Holding the Common/Cut BREP results fixed and changing only the `BRepGProp.VolumeProperties` integration overload changed the results: | Integration | A − Common − Cut(A,B), mm³ | B − Common − Cut(B,A), mm³ | | --- | ---: | ---: | | Default overload | -14.11652803 | -4.58890513 | | Adaptive, requested relative error 1e-6 | 0.00023872 | 0.00007781 | | Adaptive, requested relative error 1e-8 | 0.00027073 | 0.00006440 | The diagnostic ran against cad-agent `28abd34` / OCP7.9.3.1.1 and took151s. This identifies a measurement problem in that fixture; it does not establish that every previously unknown Boolean relation was correct. Manufacturer geometry stays private. Numerical receipts, input hashes and a generic reproducer will accompany the implementation. ## Error estimates must match the actual algorithm Independent review of draft PR #71 found that Gauss `VolumeProperties_s(..., Eps)` returns the **maximum face-relative error**, not a whole-solid relative bound. Multiplying it by net solid volume can underestimate uncertainty when positive and negative face contributions cancel. The initial two-refinement draft did this incorrectly and must not qualify parts. The corrected draft uses `VolumePropertiesGK_s` with two requested tolerances, 1e-6 and 1e-8, `OnlyClosed=False`, `IsUseSpan=True`, and centroid/inertia flags disabled. In [OCCT 7.9.3 BRepGProp](https://github.com/Open-Cascade-SAS/OCCT/blob/V7_9_3/src/BRepGProp/BRepGProp.cxx), this routine sums absolute face-error estimates at a common reference point, then divides by positive mass only above `Epsilon(1)`. The tiny positive-mass branch already returns an absolute error; multiplying it by mass would lose its uncertainty. The underlying [GK integrator](https://github.com/Open-Cascade-SAS/OCCT/blob/V7_9_3/src/BRepGProp/BRepGProp_VinertGK.cxx) still supplies an estimate, not a mathematical interval proof. The retained uncertainty is the larger of the fine aggregate absolute-error estimate and the two masses' difference. That uncertainty **consumes** the unchanged conservation budget, `0.01 + 1e-6 × max(part volumes)` mm³. Overlap and containment thresholds are unchanged. A threshold-straddling estimate or failed conservation check is `unknown`, never a clearance pass. Cache algorithm version 4 prevents results from older integration policies being reused. Containment's support test also retains uncertainty when subtracting before/after common volumes and when measuring how much was already outside. An unresolved threshold fails that support query; its surface-probe fallback cannot override the uncertainty. Its separate cache now includes the relation measurement policy and uses containment version 3, invalidating prior scalar-volume support decisions. ## Validate geometry before measuring it Solid count alone accepts an open shell wrapped as a solid. `BRepCheck_Analyzer` alone accepts an inverted closed solid whose interior includes infinity. Before broad-phase acceptance, assembly inputs must contain valid solids, exact face surfaces, no free faces outside their solids, and every solid must classify infinity as `OUT`. Source geometry is rejected, not silently repaired or reoriented. Boolean results receive the same geometric checks before measurement. A valid empty or lower-dimensional Boolean result has zero volume; it cannot serve as an assembly part. ## Centroids are optional witnesses Enabling GK centroid moments made a public full-sphere refinement take 3.8–5.7 seconds instead of 0.0003–0.0007 seconds; span splitting did not fix this. Mass decisions therefore do not compute centroid moments. An overlap's optional centroid uses separate Gauss refinements and is labeled approximate. If those points differ by more than 1e-6 mm or are invalid, the point is omitted with its reason. This does not change the relation decision. In particular, mass-only GK properties do **not** provide a computed centroid. ## Reproduce without publishing supplier geometry `tools/volume_probe.py prepare --a --b --location-a '' --location-b ''` computes Common/Cut once and saves private BREP inputs with hashes and transforms. Run `tools/volume_probe.py measure --method default`, `--method gauss`, and `--method gk` against those fixed files. Receipts record input and BREP hashes, source hashes, exact commit/runtime, residuals, estimated error, elapsed time and the unchanged budget. Preparation refuses to overwrite an existing bundle. The BREP bundle stays private; sanitized numerical receipts may be committed. Public tests use analytic asymmetric Bezier solids of revolution and thin shells, rigid placements, independently calculated centroids, invalid/open/inverted solids, missing surfaces, invalid integration outputs, tiny-mass error units, threshold uncertainty, conservation-budget consumption and old-cache invalidation. Existing sphere, curved-cap, containment and synthetic 100-part timing tests remain applicable. ## Private fixed-BREP rerun The detached compute-host run at toolkit `773477b1835a945f51962d8c3650f297ffead11c`, OCP7.9.3.1, Python3.12.3 completed on 2026-10-29. Local and remote STEP hashes matched. [Inputs and fixed BREP hashes](https://github.com/Valpatel/cad-agent/blob/dev/docs/validation/volume-2026-10-29/inputs.json), [default](https://github.com/Valpatel/cad-agent/blob/dev/docs/validation/volume-2026-10-29/default.json), [Gauss](https://github.com/Valpatel/cad-agent/blob/dev/docs/validation/volume-2026-10-29/gauss.json), and [GK](https://github.com/Valpatel/cad-agent/blob/dev/docs/validation/volume-2026-10-29/gk.json) numerical receipts preserve source hashes and transforms without supplier geometry. | Method | Residual A, mm³ | Residual B, mm³ | Error-budget consumption A / B, mm³ | | --- | ---: | ---: | ---: | | Default | -14.11652768 | -4.58890516 | no aggregate estimate | | Gauss 1e-8 | 0.00027073 | 0.00006440 | no aggregate estimate | | GK refinements | 0.00012211 | 0.00002023 | 0.00021169 / 0.00002909 | Both GK budget consumptions fit the unchanged 0.01009256 mm³ conservation limit. Measuring all five fixed BREPs took 2.877 seconds (Boolean preparation is separate). **Common volume remains 3.288196 mm³: this is an interference to interpret, not clearance or proof of a correctly modeled threaded mate.** The result establishes numerical consistency for this fixture only. The broader real-geometry suite at `be90a73` initially reported 73 passes and one failure on the aarch64 compute runtime. An existing test assumed a tangent cone/ball pair always passed. Independent direct `BRepCheck_Analyzer` checks found valid A, B, Common and Cut(A,B), but **invalid Cut(B,A)**; the strict validator correctly returned `unknown` and failed the containment gate. An x86_64 control with the same OCP version produced valid outputs and passed. This observes a runtime difference, not a proven architecture-only cause. The regression now branches on independently checked Boolean validity: all original passing assertions remain for valid outputs; only the observed cone-wall/invalid-cut-B case must explicitly fail closed. Any different invalidity fails the test. No production geometry, kernel tolerance or acceptance threshold was changed for this test. Next: obtain independent review and current CI, including the downstream support changes. No installed toolkit or product geometry changes before review. Passing numerical controls does not qualify thread engagement, assembly access, printed fit, material strength or electrical readiness. --- Source: https://cad-agent.valpatel.com/docs/web-diagrams.md # Mermaid diagrams in published documents `webkit/diagrams.js` exports `renderDiagrams(root=document)` and `observeDiagrams(root=document.body)`. The observer renders existing and subsequently inserted `pre > code.language-mermaid` and `pre.mermaid` blocks. Its `dispose()` disconnects observation; removed nodes never receive a late result. Include `diagrams.css` before the module so pending source is represented as a loading indicator instead of flashing code. Mermaid 11.4.1 is pinned and self-hosted in `vendor/mermaid`, with its MIT license and SHA-256 receipt. The helper loads it only when a diagram exists. It uses explicit queued render calls, strict security mode, generic fonts, unique SVG identifiers and isolated error/retry feedback. Source is available in a closed disclosure; a failed graph cannot remove other diagrams. No CDN connection is required. A runtime load has a 20-second bound; a retry issues a fresh request. Set `data-diagram-theme="light"` or `"dark"` on a containing element to match the actual page surface. Otherwise CSS `color-scheme` then the system preference determines the theme at insertion. Existing diagrams are not recolored by an unrelated theme toggle. Large diagrams retain readable text and scroll inside their own keyboard-focusable region. A visible sideways-scroll hint appears only when the graph overflows, and updates after viewport resizing. Tests scroll to the rightmost semantic node on phones and desktop. The Python site builder ships these assets in `site/assets` and initializes the observer on every generated page. Bootstrap failures show a reload control; runtime and syntax failures show an individual retry control. Browser tests require actual visible SVG geometry and semantic labels, hidden default source, dynamic rendering, both themes, phone overflow containment and failure recovery. Merely finding a Mermaid fence in generated HTML is not evidence that it rendered. --- Source: https://cad-agent.valpatel.com/docs/web-parts.md # Shared parts browser and build tracking Shared modules for [issue 62](https://github.com/Valpatel/cad-agent/issues/62). The table/tracker implementation is available on the feature branch; the original-file viewer is being implemented alongside it. The webkit will provide reusable sortable part tables, browser-local build status, and direct interactive viewing of STL, STEP and 3MF files. Projects supply their own catalogs, images, engineering context and downloads. Checking a status box never places an order. The table must preserve stable part identities through sorting and filtering, sort numbers numerically, retain unknown values, support keyboard and touch use, and explain whether state was saved. Exported state must identify its project and schema; invalid or unrelated imports must not overwrite current progress. The viewer must display geometry from the selected original file, fit its bounds, support fine wheel/pinch zoom and orbit/pan, and retain an original-download link. Loading and parse failures must remain readable and recoverable. CAD parsing must not freeze the interface. Format, units and triangulation limitations belong in the integration documentation and evidence. Acceptance evidence includes generic fixtures, actual project files, narrow/landscape layouts, numeric/text sorting, persistence and import/export, malformed/stalled responses, invalid geometry, and the existing viewer/packaging checks. CAD display does not certify fit, manufacturability or physical safety. This feature is developed on `feat/web-parts`, targeting `dev`. Gyropup may test the feature worktree while its PR is open, following CONTRIBUTING.md. Toolkit integration and release still follow the repository's review and explicit merge-instruction rules. ## Tables and status Include `part-table.css`, then progressively enhance a semantic table. Keep numeric source values in `data-sort-value` rather than asking the component to guess units, pack quantities or currency from display text. Unknown values use an empty sort value and remain last in either direction. Put totals in `tfoot` (or mark a body total `data-fixed`). ```html

Frame parts
Part	Cost
Bracket	$12.50

``` ```js import { createPartTracker } from './kit/part-tracker.js'; import { enhancePartTable, mountProgressTools } from './kit/part-table.js'; const tracker = createPartTracker({ project: 'my-project' }); const tools = mountProgressTools(document.getElementById('progress'), tracker); const table = enhancePartTable(document.getElementById('parts'), { tracker, statuses: [{ id: 'ordered', label: 'Ordered' }, { id: 'inHand', label: 'In hand' }], }); // Before replacing the table or navigating within a single-page application: table.dispose(); tools.dispose(); tracker.dispose(); ``` `enhancePartTable` supplies visible header sort buttons, `aria-sort`, an alternate native sort selector, text search and visible row counts. It preserves the row nodes and original order. Sorting/filtering never changes a part's tracking identity. Each trackable table requires unique `data-part-key` values; use stable project identifiers, not the row index or translated display label. Different tables may intentionally share an identity and tracker. `createPartTracker({project, fields, storage, events})` defaults to `ordered`, `inHand` and `printed`; projects may configure other Boolean fields. Its API provides `get`, `set`, `subscribe`, `export`, `import` and `dispose`, plus `persistent` and `warning`. Statuses are independent: an already-owned part can be in hand without being ordered. Storage is scoped by project and schema version, and valid cross-tab updates synchronize. Blocked storage or a full quota preserves in-tab changes and shows an export reminder instead of claiming a save. Imports validate the entire file before changing anything, require the same project/schema and configured Boolean fields, then merge by part identity. Explicit imported false values replace the corresponding field; unrelated parts/fields remain. Files are limited to 10,000 parts and 2 MB, including after merging, so exported state remains importable. No server, account, order submission, inventory quantity reconciliation or multi-user conflict resolution is supplied. ## Validation Run `npm ci`, `npm run test:webkit-unit`, and `npm run test:part-table`. Set `PLAYWRIGHT_CHANNEL=chromium` for the installed Playwright browser or `PLAYWRIGHT_BROWSER=webkit` for WebKit. The browser harness exercises native controls, correct numeric and natural text sorting, unknown values, filter counts, row identity, reload/cross-tab persistence, atomic import, actual file download, blocked storage and four phone/tablet layouts. Unit cases cover validation and state-file limits. These checks do not certify arbitrary application styling or other projects' part identifiers. --- Source: https://cad-agent.valpatel.com/lessons/01-verify-from-source.md # 01 — Verify from source Board facts that the design depends on (connector side, voltages, designators, threads, which button is which) must come from a primary source: the schematic, datasheet photos or the vendor's 3D model. They should not come from the user's recollection or from the agent's assumptions. In this session the user's assumptions and the agent's were each wrong at least once. ### Confirm which side of the board a connector is on, from photos - **Rule:** Before designing a cable route, confirm the board side and mating direction of each connector from datasheet photos or drawings. Treat generic-height bodies in a vendor STEP as placeholders. - **Incident:** The user asked how to "connect the cables to the top side of the board where we see sata and sata power connectors". In the STEP, no single solid matched a SATA connector, and the SATA bodies found were "3.81 mm-tall generic placeholders". The agent rendered the datasheet's top and bottom board photos at high resolution. The result: both SATA ports and their power headers are *vertical connectors on the underside* and plug in from below. The whole storage design (floor opening, chimney, trays under the unit) follows from this. - **Check:** Every connector entry in the parameters has a `basis` that names its evidence (photo, STEP solid IDs, schematic sheet), for example "Two vertical SATA 7-pin receptacles on the underside (5063/5064; datasheet photo)". Flag any body whose height is a library default (3.81 mm here) as non-authoritative. J26 is an example: its placeholder was replaced by a 13.85 mm envelope. - **Source:** 2026-10-24T17:33, 17:36, 17:39; 2026-10-25T00:36; `cad/parameters.json` (`underside_envelopes`), `README.md`. ### Read supply voltages off the schematic image, pin by pin - **Rule:** When a voltage matters, render the schematic sheet as an image and read the net name on each pin. Do not rely on text extraction, and do not take the user's word for it. Then trace the rail back through the power tree. - **Incident:** The user said: "12V won't come from some external connector, the 12V connector is next to the sata connector, one for each sata port on the pcb, review the schematic." The agent rendered sheet 27. On J22 (and identically J23), pin 1 is not connected, pins 2–3 are ground and pin 4 is SATA_5V. SATA_5V is switched by Q59, with a 2 A bead per port. The power tree on sheet 3 shows that VDD_12V feeds only the camera expansion connector. The first crop cut off the SATA_5V net label, so the agent widened it. The answer was "no 12 V on its SATA power connectors". The crops went on the website, and the agent offered to redesign if a photo showed a 12 V header that is missing from the v1.0 schematic (dated 2024-05-29). - **Check:** For each power pin used, record the sheet, pin and net, plus the upstream rail. Publish the crop with the net label visible. - **Source:** 2026-10-25T01:27, 01:28, 01:29, 01:30; `cad/parameters.json` (SATA power `basis`). ### Re-derive designators from the schematic; name by position when the model can't tell - **Rule:** Check every reference designator in docs and BOMs against the schematic. If the 3D model does not say which physical part is which designator, write the instruction by position and list the designator mapping as unverified. - **Incident:** The agent had J23 and J24 swapped. Per the schematic, data is J21 (port 0) and J24 (port 1), and power is J22 and J23. The STEP does not record which physical connector is J21, so the wiring rule now says "the 3.5 in drive takes the **front** SATA connector". The parameters tell the builder to check the SATA1/SATA2 silkscreen. - **Check:** Search the docs, BOM and diagrams for each designator and compare against the schematic. Each designator-to-location mapping carries a field-verification note (silkscreen or photo). - **Source:** 2026-10-25T01:29, 01:30; `cad/parameters.json` (`cables.wiring_rule`). ### Infer the thread from hole sizes when nobody can tell you - **Rule:** If the thread of a mating part is unknown, infer it from the clearance holes in the vendor model, and state the inference. - **Incident:** The user: "The screw thread you should get approximately from the screw hole size, but M3 sounds right." The NVIDIA module model has Ø3.5 holes through the module PCB and Ø3.7 holes through the thermal plate. Both are M3 clearance holes, so M3 was adopted for the tie-down screws. - **Check:** Measure the hole diameters in the STEP and compare them with a clearance-hole table for candidate threads. Record both diameters in the fastener's `basis` ("M3 from the module holes: D3.5 PCB, D3.7 thermal plate"). - **Source:** 2026-10-25T00:37, 00:38; `cad/parameters.json` (`heatsink_screw`). ### Say what the sources do not tell you, and keep the label provisional - **Rule:** When the sources leave a fact open, say so, use a neutral label and ask the user one specific question. Do not guess. - **Incident:** The schematic shows SW1 = FORCE_RECOVERY and SW2 = power/reset, both Alps SKQJLBA010 right-angle tact switches. The STEP does not record which actuator is SW1, and Seeed's docs did not say either. The rear plate was labelled "RST/REC", and the user was asked which one is closer to the board corner. The question was repeated later and is still unanswered in the transcript. - **Check:** Keep an open-questions list on the progress page. Every feature that depends on an open question has a provisional marker. - **Source:** 2026-10-24T16:35, 17:10; 2026-10-25T00:36; `cad/parameters.json` (button `basis`). ### Use vendor-model bodies as proxies for missing data, and say they are proxies - **Rule:** When the board model lacks copper and drill data, look for bodies that stand in for it, such as mount-pad proxies. Use their size, label it an assumption, and ask for one measurement. - **Incident:** The carrier STEP has no copper or drilled holes. It does have a body at each mounting hole that matches the pad: Ø6.9 at the four board holes and Ø7.14 at the four cooler holes (solids 5155–5162). The agent took those as the pad sizes, assumed the underside pads are the same, and asked the user to "measure one with calipers". - **Check:** The parameter `landing_basis` names the solid IDs and the assumption. Physical measurement stays on the pre-print checklist. - **Source:** 2026-10-24T16:39, 17:10; `cad/parameters.json` (`landing_basis`). ### Find parts by name or reference designator, never by size alone - **Rule:** Locate a component in a vendor STEP by its product name or reference designator (XCAF labels), then confirm it against a photo or silkscreen. Matching bounding-box size finds look-alikes. - **Incident:** The pin holes for the reset and recovery switches were first placed over two parts at PCB X 16.6 and 22.9, chosen because their size matched a right-angle tact switch. The user described the real layout ("REC button is closest to USB/IO headers, RST button is closest to the far board edge"). A name search then found the actual SWITCH4-8X7X7MM instances at X 137-158, between the USB-C ports and the right-hand corner. The holes, sleeves and labels were moved. - **Check:** Every connector or switch used for a cut-out records its STEP product name or refdes and the solid/shell index in `parameters.json`. A test fails if a cut-out's basis names only a size. - **Source:** 2026-10-25 (session record; `cad/parameters.json` `service_buttons.basis`). --- Source: https://cad-agent.valpatel.com/lessons/02-user-intent-and-requirements.md # 02 — User intent and requirements The requirements arrived in pieces, often as short mid-turn messages, and were refined by later corrections. What worked: capture each one in the user's own words, turn it into a named feature or check, and recompute anything that depends on it. ### Capture each mid-turn requirement verbatim and give it a feature - **Rule:** Record each user requirement word for word, map it to the feature that satisfies it, and carry it through every later revision. - **Incident:** During the first review the user added: "we need counter-sunk holes under the heat sink hole location because the heat sink is most of the mass of the assembly... so the heatsink mass is attached to our housing". This became the cooler tie-down: four printed columns under the 92 × 79 cooler holes, with flat-head screws driven up from under the floor. It was also saved as a standing project memory. - **Check:** A requirements table lists each quote, its feature, its check and its status. The final report names every requirement. - **Source:** 2026-10-24T07:07, 07:41. ### Pin down what a screw threads into before computing its length - **Rule:** For each fastener, identify the mating thread (part and feature) explicitly. Do not infer it from the part's general role. - **Incident:** Rev 0.5 said that the tie-down screws thread "into the cooler", and asked the user to confirm the direction. The user corrected this: "the standoffs between the orin AGX and the heatsink have female threads. So our screw lengths ... need to go into those standoffs, that sets our lengths", and "(the screws through the base of the housing plastic go up into the standoffs)". The agent later listed "docs saying 'thread into the cooler'" as one of the session's mistakes. - **Check:** The fastener table has a "threads into" column (for example "female standoff between AGX module and heatsink, thread starts at Z 40.76"). - **Source:** 2026-10-24T07:41; 2026-10-25T00:32, 02:18. ### Derive values your own geometry sets; ask the user only for outside facts - **Rule:** If a value follows from the model (stack heights, screw lengths), compute it and decide. Ask the user only for facts the model cannot supply, such as part identity or a physical measurement. - **Incident:** Rev 0.5 asked for "the original screw's length + 19.6 mm". Later the agent asked whether to keep the head flush or raise it. The user: "the screw length is basically set by the top of the AGX and the bottom of the housing, assuming we just go something like 8 threads into the standoff", then "I can't give you the screw lenght, that depends on your assembly." The agent then made the call itself (M3 × 35 with a raised seat; see 04). - **Check:** Before asking a question, test whether the answer is computable from `parameters.json` and the STEP. If it is, present a decision with its reasoning instead of a question. - **Source:** 2026-10-24T07:41; 2026-10-25T00:34, 00:36, 00:37, 00:38. ### Model every interface layer the user mentions, and recompute what it moves - **Rule:** Add every stack-up layer as a named parameter (thermal pads, gaskets, washers), then recompute both the fasteners and the clearances it affects. - **Incident:** The user: "(also watching out for thermal interface pad, standard thickness between heatsink and AGX)". A 0.5 mm pad became `cooler.tim_thickness`. It lifts the heatsink but not the start of the standoff thread, so the screw length is unchanged. It does take 0.5 mm off the cooler-to-roof gap: `assembly-checks.json` now reports 14.742 mm, where Rev 0.5.1 reported 15.24 mm. - **Check:** Each layer has a nominal value and a "measure the fitted part" note. Dependent outputs (screw engagement, roof gap) are regenerated after any change to it. - **Source:** 2026-10-25T00:34, 00:36; `cad/parameters.json` (`tim_note`); `exports/assembly-checks.json`. ### Treat "doesn't block disassembly" as a hard requirement - **Rule:** Before placing anything that is tethered to the internals, decide which part never comes off and attach it there. - **Incident:** The user asked "where can we have RPSMA connectors for wifi and cellular without blocking disassembly?", then added "(2x each)" and "those are not mounted on the PCB, they would be extension cables with a RPSMA sticking through the housing with a nut". All four bulkheads went into the fixed base side walls, so the lid, both I/O plates and the side door lift away with the antennas still fitted. - **Check:** For each removable part, list what is attached to it. No removable part may hold a cable that runs to the board. - **Source:** 2026-10-24T16:35, 16:36, 17:10. ### Turn a configuration list into named test cases - **Rule:** When the user lists the configurations they want, make each one a named case in the check output. - **Incident:** The user: "We want to be able to stack 1 or 2 of them and have them be 2.5" or 3.5" skinny 2.5" sata ssd or thick regular 3.5" hdd", then "(1 of each or 2 of each, or 1 total)", and "The cables can be exposed but need entry/exit points between the drives and the Orin carrier." `storage-checks.json` has seven named stacks, among them "1 total: 2.5 skinny SSDs on clips", "1 of each: 2.5 over 3.5, on plate" and "2 of each". Each one has its own plastic, hardware, chimney and bend-radius results. - **Check:** Each case the user named appears in the check JSON with `pass: true`, and the review site shows it. - **Source:** 2026-10-25T00:39, 00:40, 01:23; `exports/storage-checks.json`. ### Report constraints that undercut the request, with a recommendation - **Rule:** When a hard limit makes part of a request impractical (ports, power), say so plainly and recommend a default. - **Incident:** After the 5 V finding the user asked: "Ok so this can only support the ssd SATA drives realistically?" The answer: yes, 2.5 in drives (SSD or spinning) run from the board, while 3.5 in drives need an added 12 V source. The board has only two SATA ports, so "2 of each" only makes sense with an M.2 SATA adapter. The agent recommended the 2.5 in tray as the standard option and offered to drop the 3.5 in tray. - **Check:** Compare the number of drives in each configuration against the port count and the power budget (see 06). - **Source:** 2026-10-25T01:34, 01:36. ### Make "show it on the website" part of done - **Rule:** For this user, a feature is not done until the review site shows it with evidence. - **Incident:** Requests included "Also show them on the website..." (the drive options), "Launch the server again and show me how you are making progress", and "Where's the base for stacking with drives?". The last one was answered by stating that P1 is the stacking base and adding a "Which base do I print?" section. See 08. - **Check:** Every change in the report links to the section or image on the site that shows it. - **Source:** 2026-10-25T00:31, 00:40, 01:30, 01:36. --- Source: https://cad-agent.valpatel.com/lessons/03-mechanical-design-rules.md # 03 — Mechanical design rules These rules come from printed-enclosure work (FDM, Bambu P1S bed) around a real carrier board. ### Tie tall slender columns into the nearest wall - **Rule:** A tall screw column near a wall should be fused to the wall: a full-height buttress, concave fillets where it meets the wall, and a fillet at its base. It should not stand free. - **Incident:** The user: "P1M and P1 base have 4 long tall skinny standoffs for the lid, can you make them better connected to the outside walls ... so they don't snap off like toothpicks?" Each lid-screw column was Ø10 × 68 mm, with its centre 8.8 mm from the outside face, so it reached only 0.2 mm into the 4 mm wall. The fix had three parts: - a full-height buttress from the wall face to the column centre (a D-shaped pillar); - 4 mm concave fillets on both sides where it meets the wall; - a 45° flare at the floor, later replaced by a 3 mm radius fillet. The lid's 34 mm hanging columns got the same treatment. Clearance to the antenna spot faces stayed at 1.25 mm, and to the nearest vent at 1.0 mm. - **Check:** For each post, compute how far it reaches into the adjacent wall and its height-to-diameter ratio. Flag a post if the wall overlap is near zero. After the change, re-check the clearance to nearby features. - **Source:** 2026-10-25T01:39, 01:45, 02:15. ### When one weak feature is found, survey all similar ones - **Rule:** After fixing one slender feature, rank every similar feature by risk and either fix it or write down why it is left alone. - **Incident:** The user: "What other skinny parts might snap...?" The survey found three more risks: - the board posts and cooler columns, whose flat landing shoulder carries the cooler clamp load; - the storage-tray standoff sleeves, which touched the 3 mm tray wall by only 0.3 mm; - the P9 template posts. Some features were kept on purpose. The lid tongue is supported along its full length, the ribs are 3 × 3 mm, and the rails are fused to the floor. The SSD clip got no fillet, because a fillet in its inside corner would push the drive off. - **Check:** A table of slender features with risk, decision and reason. Fixed items are re-checked for overlaps. - **Source:** 2026-10-25T01:50, 01:51, 01:57. ### Fillet both ends of a stepped standoff with true radii - **Rule:** Put concave radius fillets at the base of each standoff and at each diameter step. Keep the fillets below the bearing face, and re-apply component reliefs after filleting. - **Incident:** The user pointed at a render: "the small standoffs need the same fillet on the bottom that connects them to the base of the housing, as well as the top of the standoff (the small section) needing a fillet connecting to the fat part". The agent had used 45° chamfers there. These became radius fillets: 3 mm at the floor and 2 mm at the landing shoulder, on the board posts, the cooler columns and the P9 template. The lid columns and tray sleeves were given 3 mm floor or roof fillets for consistency. The fillets narrow as they rise, so they print without supports. - **Check:** The landing-top area is unchanged after filleting. The component-relief cuts run after the fillets, so the carrier clearance check still reports 0 collisions. - **Source:** 2026-10-25T02:04, 02:15; `cad/parameters.json` (`support_fillet_note`). ### Size landings to the pad's annular ring, limited by nearby components - **Rule:** Make the plastic landing under a PCB mounting hole as large as the pad, for full contact. Keep a set margin to the nearest component, and give a fit template the same landings and reliefs. - **Incident:** The user asked whether the fit template needed built-in standoffs, and: "Do you have the mounting hole pad sizes to match the plastic to the annular ring ... max contact area without colliding with components?" The landings were set to Ø6.9 (board) and Ø7.14 (cooler), from the STEP pad bodies. The nearest underside part is at least 4.14 mm from any hole centre, so the edges clear components by at least 0.5 mm. The P9 template became a cradle with the base's posts and reliefs on a 3 mm frame, 12 mm tall, with 2.5 mm under the lowest component. - **Check:** Landing radius + margin ≤ the distance from the hole centre to the nearest component's bounding box. The template must pass the same carrier clearance check as the base. - **Source:** 2026-10-24T16:39, 16:42, 17:10; `cad/parameters.json` (`landing_basis`). ### Envelope underside cards and relieve the supports around them - **Rule:** Model envelopes for the cards that plug into underside slots, including their plugs, and cut reliefs into any support they reach. - **Incident:** The user asked whether there was "height clearance on the bottom side of the board for the large double stacked pcie slots". The stacked Mini PCIe and M.2 Key B cards need about 10 mm of the 16 mm available. The M.2 Key E Wi-Fi card envelope clipped a support by 74 mm³, so that support was cut back with a 0.5 mm margin. - **Check:** For each envelope, the intrusion into plastic after relief is 0 mm³ and the gap to the floor is reported (`underside_envelopes` in `storage-checks.json`). - **Source:** 2026-10-24T17:33; 2026-10-25T00:36; `README.md`; `exports/storage-checks.json`. ### Size connector windows to the mating plug's overmold - **Rule:** Work out where the receptacle face sits relative to the outside of the panel. If the plug's overmold has to enter the window, size the window to the overmold, not to the receptacle. Bridge webs that would be too thin. - **Incident:** In Rev 0.4 the 6 mm panels put receptacle faces 7–7.6 mm behind the outside, and the USB-C slot was 5.7 mm tall where typical overmolds are 6.5–8 mm, so plugs could not mate. Rev 0.5 uses 3 mm plates with the inner faces unchanged. Windows were sized to typical overmold envelopes: USB-A 16.5 × 8.5, USB-C 13 × 8, HDMI 11.5 × 21.5 (rotated). Webs under 1.8 mm were bridged. These sizes are typical values, still to be checked against the user's cables. - **Check:** For each port: receptacle depth behind the outside face, window size ≥ envelope, web ≥ the minimum (1.8 mm). Record the sizing basis per port in `ports`. - **Source:** 2026-10-24T07:41; `README.md` (Port windows); `cad/parameters.json` (`plug_envelopes_note`). - **Superseded check:** a size-only check missed windows that were 2 mm off-centre and a plug taller than its header. Model the mated plug and sweep it in (see 05, "Model every mating connector …"). ### Build printable lead-ins into the cutter, and confirm with an overhang screen - **Rule:** Make lead-ins and transitions self-supporting (45° or a shape that narrows as it builds). Prefer tapered cutters to edge chamfers on complex edges. Compare the overhang screen before and after each change. - **Incident:** An edge chamfer on the bridged windows failed (StdFail_NotDone), so the agent built the 45° lead-in into the cutter as a tapered extrude. The horizontal antenna and 12 V jack holes are teardrops with a 45° roof (`teardrop_x` / `teardrop_y` in `cad/build.py`), capped below the split line. Fillets were checked to narrow as they rise. - **Check:** Downward-facing area from `print-review.json` before and after the change. For example, the lid stayed at 803.5 mm² after the cell chamfer was added. - **Source:** 2026-10-24T07:17, 14:50, 17:10. ### Make grilles finger-safe, and shape the fan side for flow - **Rule:** Keep the smallest opening of a grille over a fan below the test-finger size. Taper the inlet side rather than leaving a sharp edge, and do not claim an airflow gain without testing it. - **Incident:** The Rev 0.4 roof cells (25 × 29 mm) let a finger reach the fan. Rev 0.5 has 216 hex cells, 10 mm across flats, which a 12 mm test finger cannot pass. On request ("internal chamfer on the fan side"), each cell got a 1.0 mm deep inlet that opens to 11.2 mm across flats, with a 0.6 mm web edge. That is 31° off the cell axis, chosen over 45° for a longer lead-in on thin webs. The outer 5 mm keeps full 1.8 mm webs. The airflow gain was stated as untested. - **Check:** Smallest opening < test-finger diameter. The overhang screen is unchanged. Any airflow claim is labelled as untested until CFD or a physical test. - **Source:** 2026-10-24T07:41, 14:42, 15:09. ### Keep the shell flush and let the lid capture the loose plates - **Rule:** Prefer a flush shell without overhangs or protruding rails. Have the closing part hold the slide-in panels down, so one set of screws retains everything. - **Incident:** Rev 0.4 overhung by 6.4 mm and had rails protruding 11 mm. Rev 0.5 is a flush R8 shell, 206 × 181 × 112 mm. Plates and the hatch slide down channels, and the lid's ledges over the plates and its skin over the hatch keep all three from lifting. Four M3 screws go in from the top, so the lid opens while the base is bolted to a wall. - **Check:** `assembly-paths.json` shows that the plates slide vertically (0.37 mm front, 0.25 mm rear clearance). Every loose part is either screwed or captured by a screwed part. - **Source:** 2026-10-24T07:41; `README.md` (Assembly step 9). ### Cut every hole last, after all the added features - **What happened:** Rev 0.9 of the J501 lid (2026-10-29) added four stiffening ribs from the fan to the lid-screw corners. The build cut the counterbores and clearance holes first and unioned the ribs afterwards. Each rib ran into its socket-head counterbore, and the lid was printed that way. Every check passed: the lid was a valid watertight solid, it cleared the cooler, and its FEA and slice were fine. - **Rule:** in the build, cut fastener holes, counterbores, countersinks and insert bores after every rib, boss, skirt and gusset has been added. Run `cad-agent holes` (part of `cad-agent all`), which probes every cylindrical hole and countersink in each part's STEP for material inside it. A finding is a build-order bug unless it is a deliberate D-flat or bridge layer, which is listed in `cad.holes.exceptions` with its reason. - **Index:** [docs/common-issues.md](https://cad-agent.valpatel.com/docs/common-issues.md) lists this and the other recurring review findings. - **Source:** mvalancy/j501-agx-orin#9; Valpatel/cad-agent#85. --- Source: https://cad-agent.valpatel.com/lessons/04-fasteners-and-assembly-access.md # 04 — Fasteners and assembly access Bought hardware (screws, nuts, washers, inserts, pins, bearings, standoffs, rod ends) is chosen and placed with [`skills/mcmaster-parts`](https://cad-agent.valpatel.com/skills/mcmaster-parts/SKILL.md): a real McMaster-Carr part number, its STEP model normalised into a known frame, and its specification table in the hardware catalogue, never an envelope. ### Check tool access for every fastener at the step where it is installed - **Rule:** For each fastener, check that a real tool can reach it and turn it at the point in the assembly where it is fitted, not only in the finished assembly. - **Incident:** The first storage-stack design needed standoffs to be turned "inside narrow bores where no tool fits". The 6.6 mm `column_bore` in `parameters.json` holds the 5.5 mm AF hex standoff (6.35 mm across corners), which leaves no room for a 5.5 mm nut driver (about 8 mm OD). In the redesign, the standoffs hang from the part above: the male end passes up through that part's 2 mm ledge, the hex bears in a 2 mm counterbore, and the female end takes the next tray. Every standoff is turned while fully exposed. Earlier, the wall-mount check found that a 20 mm driver envelope collided with a gusset; the fix was projection 24 → 26 mm and hole offset 13 → 15 mm. - **Check:** Sweep a tool envelope (driver diameter or wrench across flats plus swing) to each fastener head at its assembly step. Any intersection with plastic fails. `mount-checks.json` records `driver_access` with a 20 mm tool. - **Source:** 2026-10-24T08:35 (summary of the 07:00 work); 2026-10-25T00:36; `cad/parameters.json` (`interface_note`); `exports/mount-checks.json`. ### Choose the assembly direction that keeps fasteners exposed - **Rule:** If a stack can only be fastened from one side, write the assembly order to match. Flipping the build (upside down) is acceptable. - **Incident:** The storage stack is built upside down on the lid. Working from the top tray down: drive the drive screws in from below, route the leads, offer up the tray, and fit four M3 M-F standoffs through its ledges into the part above. - **Check:** The README assembly steps state the order and which way up the assembly is. Each step names the tool and the access side. - **Source:** 2026-10-25T00:36; `README.md` (Assembly step 10); `cad/parameters.json` (`interface_note`). ### Compute screw length from the stack plus thread engagement - **Rule:** Length = distance from the head seat to the start of the mating thread, plus the required engagement. Then check the result against the depth of thread actually available. - **Incident:** The user defined it: housing bottom to the top of the AGX, plus "something like 8 threads into the standoff". The standoff thread starts at Z 40.76, and 8 threads of M3 (0.5 mm pitch) is 4 mm, so a head flush with the floor would need 44.3 mm. The agent pointed out that an M3 × 45 only fits if the standoff thread is at least 5.2 mm deep. - **Check:** A table per fastener: seat Z, thread-start Z, engagement in threads and mm, the stock length chosen, and the minimum thread depth that length requires. - **Source:** 2026-10-25T00:34, 00:36; `cad/parameters.json` (`heatsink_thread_engagement_note`). ### Move the head seat to reach a standard screw length - **Rule:** If the computed length is an uncommon size, move the seat (counterbore or countersink depth) so a stock length gives exactly the intended engagement. - **Incident:** A 44.3 mm flat head is uncommon. The countersink seat was raised to Z 9.76 inside each Ø14 column, up a Ø7 pocket from the floor, so a standard M3 × 35 (DIN 7991 / ISO 10642) gives exactly 4.0 mm of engagement (9.76 + 35 = 40.76 + 4). This also puts the clamping cone in the solid column instead of the thin floor, and the base still sits flat. - **Check:** Seat Z + stock length − thread-start Z = target engagement, within a stated tolerance. Recompute whenever a layer in the stack changes. - **Source:** 2026-10-25T00:38; `README.md` (Assembly step 5); `cad/parameters.json` (`heatsink_seat_note`). ### Print coupons for inserts and countersinks before the big parts - **Rule:** Give each process-sensitive fastener feature a small test coupon, printed in the intended filament and profile before the main part. - **Incident:** P11 is the M3 heat-set insert pilot coupon (nominal pilot 3.9 mm). P14 is the countersink coupon, used to check that the flat head sits at or below the floor. P12/P13 test the plate channel and key. The filament is unspecified, so insert retention and fits are not qualified. - **Check:** Every insert pilot and countersink in the design has a matching coupon in the part list, and the assembly steps say to print it first. - **Source:** 2026-10-24T07:41; `README.md` (Parts, Assembly step 1); `cad/parameters.json` (`board_insert_pilot`, `lid_insert_pilot`). ### Limit screw penetration into drives to the SFF spec - **Rule:** For screws into third-party devices, take the allowed thread penetration from the device spec. Pick the length so that (length − material under the head) falls inside that range. - **Incident:** The drive hole patterns and penetration limits come from SFF-8301 Rev 1.9 and SFF-8201 Rev 3.4: - 3.5 in: a 6-32 × 3/16 in pan head through 1.9 mm of material, spec penetration 2.39–3.56 mm. - 2.5 in: an M3 × 4 button head through 2.3 mm, spec 0–2.5 mm. - 7 mm SSD side screws: penetration at most 2.0 mm (3.0 mm for thicker drives). By arithmetic (not stated in the session), the chosen screws penetrate about 2.86 mm (6-32) and 1.7 mm (M3 × 4), both inside the ranges. - **Check:** `storage-checks.json` `drive_fastening` records the material under the head and the spec range per drive type. Add a computed-penetration field and assert that it is inside the range. - **Source:** 2026-10-25T01:23; `cad/parameters.json` (`drives`, `ssd_clip`); `exports/storage-checks.json`. --- Source: https://cad-agent.valpatel.com/lessons/05-cables-connectors-and-routing.md # 05 — Cables, connectors and routing ### Model every mating connector, place it on the measured axis, and derive the window from it (standard practice) - **Rule:** For every external port, identify the receptacle's exact part, then look up its mating plug: the manufacturer's drawing or STEP, otherwise a catalogue or typical envelope labelled as assumed. Next: - measure the receptacle's mating face and axis by slicing the board model at the face; - place the plug there in its mated position; - derive the panel window from the part of the plug that passes through the wall on insertion, plus clearance. Never size a window from a receptacle bounding box. Then sweep each plug in along its axis against every printed part and require zero overlap, the stated clearance all round (corner radii included) and no plug-to-plug clash. Use `cadagent.connectors`: plug families, `window()`, `check_ports()` and the `draw_ports()` evidence image. - **Incident:** On 2026-10-25 the user reported: "The DC input connectors, ethernet connectors, and audio connector cutouts do not appear centered properly. … The DC input connector is not able to fit and mate properly." Then: "connector cutouts need to move up a bit, away from the bottom of the PCB." The cause had two parts. - Windows were "solid face bbox + 0.5". A bbox includes the through-hole pins about 2.3 mm below the PCB, so the RJ45 and DC windows sat about 2 mm low. The audio windows sat 0.5 mm low because they used the shell's centre, not the nose's. - The DC header J2 is a 2-pin 5.08 mm screw-flange header, 8.4 mm tall. Its mating plug, the Phoenix MSTB 2,5/2-STF-5,08, is 15 mm tall and 20.17 mm wide, and its 9.9 mm body sits outside the header face, right through the 3 mm plate. The old window stopped 5.9 mm below the plug top, a 354 mm³ sweep collision. Run against the old windows, the new check fails all four front ports. Against the derived windows, all 13 ports in three plate configurations pass. - **Check:** `exports/port-checks.json` `pass` (one row per port, with plug basis, margins, centring offsets and interference volumes), plus `preview/port-fit.png`. The review's `pass_key` includes `port_plug_fit_pass`. - **Also label what the user must get right at the port:** after the fit fix the user asked: "power connector should have polarity and voltage labeled on it, same with ethernet speeds". Take polarity from the schematic net names (J2 pin 1 = DCJ_IN through F1). When the model cannot tell which physical pin is pin 1, say so and ask for a meter check; don't present the guess as fact. - **Source:** 2026-10-25 (J501 session, port-fit fix); `cad/parameters.json` (`ports.*.mate`); `cad/ports.py`; `tools/check_ports.py`; Phoenix 1777989 datasheet. ### Route cables from the connector's real mating direction - **Rule:** Start every route at the connector's actual board side and mating axis, and give the cable a defined entry and exit through the housing. - **Incident:** The SATA receptacles and PH power headers are vertical connectors on the underside (see 01), so the plugs mate straight up from below. The route is as follows: - the leads drop through a base-floor opening directly beneath the connectors; - they continue down a chimney that lines up through every tray floor; - they turn into a cable gutter on the left side that runs the full depth of each tray; - they run straight into the drive plug. A printed cap (P18) closes the floor opening when there is no storage. This answered the user's "cables can be exposed but need entry/exit points". - **Check:** For each stack, the chimney zones (`sata_plugs`, `sata_power_plugs`) report 0 mm³ blocked in `storage-checks.json`. - **Source:** 2026-10-25T00:36, 00:39; `README.md` (Cable routing); `exports/storage-checks.json`. ### Model plug bodies and a straight lead before the first bend - **Rule:** A cable cannot bend at the connector face. Model the rigid plug length and a straight lead-in at each end, then start the bend. - **Incident:** The model uses SATA data plugs of 12 mm at the board and 11 mm at the drive, with an 8 mm straight lead. The PH power plug is 7 mm at the board, the drive power plug 11 mm, with a 6 mm straight lead. Lead diameters are modelled (2.2 mm data, 1.8 mm power, 2.0 mm for 12 V). - **Check:** Each route's geometry includes plug and straight segments sized from `cables` in `parameters.json`. - **Source:** 2026-10-25T01:23; `cad/parameters.json` (`cables`). ### When no standard exists, state the assumed bend radius and check every route - **Rule:** If no published minimum bend radius exists, choose conservative values, label them as assumptions with their basis, and check each route against them in every configuration. - **Incident:** The user asked: "What about the bend radius for the sata cables coming out of drives and so on?" No published SATA bend-radius standard was found. The basis notes that 3M sells a foldable SATA cable and that a general rule of thumb is at least 15× the cable thickness. The design values are 12 mm for data, 6 mm for the 4-wire PH power lead and 8 mm for 12 V. The tightest route is the 3.5 in data lead: 12.06 mm available against 12 mm required. - **Check:** For every route in every stack, `max_uniform_bend_available_mm` ≥ `min_bend_required_mm`. Show the table on the review site. - **Source:** 2026-10-25T00:58, 01:23; `exports/storage-checks.json` (`cables.basis`, `bend_radius`). ### Move the connector to make room for the bend; don't squeeze the cable - **Rule:** When a route fails its bend radius, move the mating connector (or the device) to lengthen the run before the bend. Do not shrink the radius. - **Incident:** After the bend checks were added, two configurations failed: "1 of each: 2.5 over 3.5, on plate" and "2 of each, on plate". In both, the rear SATA connector fed the 3.5 in drive, leaving only 9.1 mm of bend radius against the 12 mm required. The fix was the wiring rule: the front connector feeds the 3.5 in drive. An earlier round had already found routes with only 3.6–11.5 mm available. The drives were moved so their connector ends sit at X 48 (3.5 in) and X 62 (2.5 in) from the left outer face. The 3.5 in drive also shifted rearward, clear of the standoff columns. - **Check:** Re-run the bend and clearance checks for all stacks after the move. All seven stacks pass in `storage-checks.json`. - **Source:** 2026-10-25T01:08, 01:23; `cad/parameters.json` (`connector_x`, `connector_x_note`). ### Write down the wiring rules the geometry forces - **Rule:** If only one port-to-device pairing satisfies the routing limits, publish it as a wiring rule, written in terms the assembler can see. - **Incident:** The 3.5 in drive must take the front SATA connector and a 2.5 in drive the rear one. The other way round, the turn into a 3.5 in drive's data plug allows only about a 9 mm bend. The rule is phrased by position because the STEP does not map J21/J24 to physical connectors. - **Check:** The wiring rule appears in the parameters, the README, the cable diagram and the assembly steps, with the same wording. - **Source:** 2026-10-25T01:23, 01:30; `cad/parameters.json` (`cables.wiring_rule`). ### Keep cable-tie anchors out of the cable paths - **Rule:** Place tie anchors beside the route, against a wall, and include them in the cable collision check. - **Incident:** As part of the bend-radius rework, the cable-tie anchors were moved against the tray wall, out of the cable paths (`gutter_anchors` at X 9). Before that, the cable-clearance check had caught the port-2 data lead to the second 2.5 in bay running through the gutter tie anchor at X 22, Y 90 (7.5 mm³). A flat SATA cable would thread under the anchor's bridge, but the round tube model could not. - **Check:** `cable_route_hits` is empty for every stack in `storage-checks.json`. - **Source:** 2026-10-25T01:23; `cad/parameters.json` (`gutter_anchors`); `exports/storage-checks.json`. --- Source: https://cad-agent.valpatel.com/lessons/06-enclosure-features.md # 06 — Enclosure features ### Put antenna bulkheads in the part that never comes off - **Rule:** Mount panel connectors that carry cables to the internals (RP-SMA pigtails and the like) on the fixed base. Size the wall locally for the hardware stack-up: body, washer, nut and mating thread. - **Incident:** There are four RP-SMA holes, Ø6.6, in the base side walls: WIFI 1/2 on the left and CELL 1/2 on the right, 92 mm apart on each side, above the vents and below the lid joint, with debossed labels. Each hole is spot-faced on the inside to a 2.5 mm wall, so a short-thread jack still leaves room for the washer, the nut and about 4 mm for the antenna. The pigtails fit from inside, with the nut outside. The jack's thread length was left for the user to check against the parts they buy. - **Check:** A ¼-inch rod passes all four holes. The jack models report no collisions. The wall thickness at the spot face plus the nut and washer must be less than the jack's thread length (a supplier check). - **Source:** 2026-10-24T16:40, 17:10; `README.md` (Assembly step 7). ### Give recessed buttons a pin hole and a guide sleeve that clears installation - **Rule:** For right-angle buttons behind a panel, add a pin hole with a lead-in and an inner guide sleeve. Stop the sleeve short of the board, so the panel still installs along its path. - **Incident:** The reset and recovery switches sit 4.8 mm behind the rear plate. The plate has two Ø1.6 pin holes, angled at the opening, for a SIM tool or paper clip. A guide tube on the inside of each stops 0.35 mm short of the board edge, so the plate still slides straight down. - **Check:** A 1 mm pin passes through both bores. A slide-in sweep check confirms that nothing is in the sleeve's path. The label stays provisional ("RST/REC") until the switch identity is confirmed (see 01). - **Source:** 2026-10-24T16:39, 16:40, 16:53, 17:10. ### Build storage trays from the drive specs and make them stack in any order - **Rule:** Take drive outlines and hole patterns from the official form-factor specs. Design the trays as identical interfaces, so any mix stacks in any order. - **Incident:** P15 holds one 3.5 in drive (SFF-8301, all three 6-32 hole pairs) and is 32 mm tall. P16 holds two 2.5 in drives up to 15 mm (SFF-8201, M3 holes) and is 22 mm tall. They are clamped by M3 M-F hex standoffs (M3 × 30 for P15, M3 × 20 for P16), with heat-set inserts in the base column feet. Two of each tray add 108 mm, for 220 mm overall. - **Check:** Every stack the user named passes in `storage-checks.json` (no plastic or hardware overlap, chimney open, bends OK). Hole positions are traceable to the spec table in `parameters.json` `drives`. - **Source:** 2026-10-24T17:48; 2026-10-25T00:36, 01:23; `README.md` (Trays); `cad/parameters.json` (`basis`). ### Support thin drives that lack bottom holes - **Rule:** Check which mounting holes the spec makes optional, and provide a holder that uses the holes that must be there. - **Incident:** SFF-8201 makes bottom holes optional on drives 7 mm or thinner. P19 is a printed clip, four per drive. It takes an M3 × 5 through its wall into the drive's side hole (14.0 / 90.6 mm from the connector, 3.0 mm above the bottom) and an M3 × 6 from under the tray into a captive nut. It uses the tray's existing bottom-hole pattern, so no extra holes are needed. - **Check:** The clip stacks report no `drive_clip_overlaps`. Side-screw penetration stays within 2.0 mm (see 04). - **Source:** 2026-10-25T01:23; `cad/parameters.json` (`ssd_clip`, `bottom_holes_note`). ### Provide a mount plate and a blanking cap for the configurations - **Rule:** Every configuration needs a defined bottom part and every unused opening needs a closure. Say which base to print for which use. - **Incident:** - P1 is the base for desktop use and for every storage stack. - P1M is only for wall or robot mounting without storage. - With storage on a wall or robot, use P1 + trays + P17 (storage mount plate). - P18 (chimney cap) plugs the SATA floor opening when no storage is fitted. - **Check:** A "Which base do I print?" table on the review site and in the README. Each configuration in the checks names its bottom part. - **Source:** 2026-10-25T00:36, 01:36; `README.md` (Parts). ### Do the power budget before promising a device type - **Rule:** Before supporting a device class, compare its supply rails and current draw with what the board actually provides (from the schematic), and design the extra power entry if one is needed. - **Incident:** Each SATA power header supplies switched 5 V only, with a 2 A bead per port. One transistor, Q59 (CJ3407, marked "30V; 4.3A" on schematic sheet 27), switches both ports. The agent's rough figures were 0.5–1 A at 5 V for a 2.5 in SSD and about 1 A at spin-up for a 2.5 in HDD. These are general estimates, not taken from a drive datasheet. A 3.5 in HDD also needs 12 V (about 2 A peak at spin-up, also an estimate). The 3.5 in tray therefore got an 8 mm "12V IN" hole and tie anchors for a 12 V-to-SATA adapter. The board input is 12–36 V, so DC-IN can be shared only if the supply is 12 V. - **Check:** A power table per configuration: rail, source, per-port limit, worst-case draw (cite the drive datasheet once chosen). - **Source:** 2026-10-25T01:30, 01:36; `README.md` (Power). ### Connect insert bosses to the enclosure with filleted load paths - **Rule:** A cable-clamp insert should have a continuous load path through its boss to the floor and nearby wall. Use broad ribs with filleted roots and positive boolean overlap. Check the remaining material after pilots, counterbores and seam grooves, not just the uncut wall or boss diameter. State a project-specific structural minimum; cosmetic engraving strokes are a different feature class. - **Incident:** The Thor clamp's central 2 mm blade did not brace the two inserts to the rear wall. Its 10 mm bar depth left only 1.8 mm beside a 6.4 mm counterbore; a 3 mm wall around a 1.4 mm tongue plus 0.25 mm clearance left 1.35 mm outside the groove. The revised project uses two 3.2 mm ribs with R1.6 roots, a 40 × 12 mm clamp and a 4.5 mm wall around a 2 mm tongue. Two side mounting ears use R2 roots and recessed M3 clearance holes. - **Tool:** `cadagent.fasteners.filleted_wall_rib` builds explicit curved roots and wall overlap. Supply actual dimensions, then fuse to the boss/floor/wall and check one valid solid, insertion, driver, cable and board clearances. The regression test checks curved edges and nonzero overlap with the receiving wall. - **Limits:** CAD connectivity and nominal web width do not prove insert pull-out, fatigue, print anisotropy, creep or safe tightening torque. Print coupons and perform the project's load tests before setting ratings. - **Source:** 2026-10-26, Thor adapter prototype/mounting iteration; `tests/test_fasteners.py` reports three passing checks. ### Fuse engraved text before cutting it, and check the printable mesh - **Rule:** Fuse the glyphs of each text item into one solid before the boolean cut, keeping the union to that one item rather than a whole panel. Judge engraving by the exported mesh being watertight, not by how the BREP looks. - **Incident:** "AUX + PROTOTYPING INSIDE" in DejaVu Sans Bold at 2.2 mm had a 0.0000426 mm³ overlap between two kerned glyph solids (0.6 mm extrusion). Cutting the raw glyph compound gave a non-watertight STL although the lettering looked right. - **Check:** `tests/test_markings.py::test_kerned_bold_letters_export_as_a_watertight_engraving` failed before the fix (`GeometryError: non-watertight STL`); `cadagent.markings` now fuses each item's glyphs, as it already did for a line's overlapping stroke caps. - **Source:** 2026-10-26, Thor adapter lid rebuild. --- Source: https://cad-agent.valpatel.com/lessons/07-verification-and-evidence.md # 07 — Verification and evidence ### Collision-check everything and investigate every hit - **Rule:** Check plastic against plastic, plastic against the vendor board, and plastic against the modelled hardware. Treat every non-zero overlap as a finding until it is explained, however small it is. - **Incident:** Real defects caught this way: - The hatch tongues ran past the bottom V-groove (0.29 mm³, then 0.144 mm³ after the first fix). - The wall-mount driver envelope collided with a gusset. - A mount ear overlapped the panel channel. - The M.2 Key E card envelope clipped a support (74 mm³). - The hardware check reported 4 collisions because the RP-SMA thread cylinder in the visual model pointed vertically instead of through the wall. That was a bug in the agent's own hardware model, not in the enclosure. - The trays' rounded chimney corner (R3) clipped the SATA plug drop zone by 2.0 mm³ per tray. The fix was a narrower plug zone and an R2 corner moved to Y 27.5. - The storage mount plate's tab gussets (copied from P1M) intruded 3.3 mm³ into the lowest tray wall. They are now trimmed at the tray outline. - The data lead to a second 2.5 in bay ran through a tie anchor (7.5 mm³). False alarms, explained and then excluded on purpose: - Each drive's visual connector strip overlapping its own drive body. - The tie-down screws overlapping the P9 fit template (4 × 19.5 mm³). The template is used without those screws. - **Check:** `assembly-checks.json` (all part pairs = 0 mm³), `carrier-clearances.json` (4902 pairs, 0 collisions), `storage-checks.json` (per stack). Each hit is triaged as a design defect, a model defect or intended. - **Source:** 2026-10-24T07:25, 08:35 (summary), 16:53; 2026-10-25T00:36. ### Classify false positives explicitly; don't silence them - **Rule:** When a check flags something that is not a defect, add a named exclusion or category. Do not loosen the check globally. - **Incident:** - A drive's visual connector strip overlapped its own drive body. These strips were excluded from the drive-to-drive comparison. - The link validator reported JavaScript template strings as missing files. The regex was tightened to require a quote or `?` after the link. - Heat-set inserts overlap their holes by design. They are reported separately as `intended_insert_interference` (8 in the carrier check, 4 per stack). The brief also mentioned a fit-template false positive involving the tie-down screws. It does not appear in the transcript. - **Check:** Each exclusion is listed in the check's JSON with its reason. Intended interferences have their own list and count. - **Source:** 2026-10-24T07:40; 2026-10-25T00:44; `exports/carrier-clearances.json`. ### Check motions, not just final positions - **Rule:** For parts that slide, swing or get driven, sweep the motion path and the tool envelope. - **Incident:** - The plates' slide-in path was checked (0.37 mm front, 0.25 mm rear). - A sweep check was added for the button guide sleeves on the way down. - Wall-mount screws are checked with a 20 mm driver envelope. - The first stack design failed this kind of reasoning: its standoffs had no tool access (see 04). - **Check:** `assembly-paths.json`, `mount-checks.json` `driver_access`, and the sleeve sweep in the clearance run. - **Source:** 2026-10-24T07:41, 16:40; 2026-10-25T00:36. ### Never claim what was not tested, and make the checks strict - **Rule:** Every report states what was not verified (physical fit, slicer, thermal, airflow, loads). A check passes only on an explicit true. A missing file or key is a failure. - **Incident:** The Rev 0.5 report opened with "nothing has been printed, run through a slicer, or test-fitted". The hex chamfer report said "the airflow gain is untested". The Bambu link was reported as found in the binary but not tested. `assembly-checks.json` carries `physical_fit_verified: false`. The shared `vptest cad` report "always records 'physical fit not verified' and 'slicer not run', and nothing can set those to true". A missing file, a missing key or a value like "yes" counts as a failure. - **Check:** The report schema has unverifiable flags that cannot be set to true, plus an explicit limits list (the README lists slicer, insert pullout, thermal, vibration, creep and mounting load). - **Source:** 2026-10-24T07:41, 15:09, 17:10; 2026-10-25T01:44; `README.md` (Checks). ### Re-run the pipeline after geometry changes; ignore stale notifications - **Rule:** When geometry changes, stop any run that is checking the old geometry and re-run everything downstream: checks, docs, renders and package. Match each completion notice to the run it belongs to. - **Incident:** - The agent stopped runs whose results would go stale three times (interface change, screw-seat change, fillet change). - Twice it noticed that a completion notice belonged to an older run and kept waiting for the current one. - It found Rev 0.4 numbers left in the measurement list (roof Z 102 instead of 106, gap 11.24 instead of 15.24). - Drift remains in the project files: `README.md` is titled "Rev 0.5", but the exports say `revision: 0.6-storage-modules`. The README checks table says "4 stack combinations", while `storage-checks.json` has seven. - **Check:** Every artefact carries the revision string. The validator fails when a doc's revision or counts disagree with the JSON it summarises. - **Source:** 2026-10-24T15:09, 17:09, 18:02; 2026-10-25T00:38, 01:46, 01:51; `README.md`; `exports/storage-checks.json`. ### Look at every render before showing it - **Rule:** Open each render and check that it is current, lit well enough, and shows the feature in question before linking it. - **Incident:** - Renders being reviewed turned out to be old Rev 0.4 images; the new render pass had not started. - The hex-inlet close-up was too dark and its angle hid the chamfer, so it was re-rendered lighter and more square-on. - The user once pointed at a render made before the latest change, and the agent had to explain that it was stale. - **Check:** Each render's modification time is later than the build that produced its geometry. A visual pass is logged for each new image. - **Source:** 2026-10-24T07:33, 14:58, 15:09; 2026-10-25T02:04. ### Verify generated files by reading them back - **Rule:** After exporting a fabrication file, read it back with an independent parser and compare it with the source mesh. - **Incident:** trimesh's 3MF export needed networkx, so the agent wrote a small standalone exporter. Its self-check then failed, because the read-back also went through trimesh, and the pipeline stopped there. The read-back was switched to a plain XML parse. The check compares triangle count, watertightness and volume; the shared tool uses a 0.1% volume tolerance and deletes any file that does not match. - **Check:** For each 3MF: triangle count equal, closed surface, volume within 0.1%, otherwise delete the file and fail. - **Source:** 2026-10-24T16:43, 16:54; 2026-10-25T01:44. --- Source: https://cad-agent.valpatel.com/lessons/08-review-site-ux.md # 08 — Review site UX The user reviewed the work almost entirely through a locally served preview page. Each request below came from something they could not see or could not act on. ### Keep a progress section during long work - **Rule:** During multi-hour work, keep a progress section at the top of the review page with three lists: done, running and needs your decision. Mark images that are stale until the rebuild finishes. - **Incident:** "Launch the server again and show me how you are making progress." The agent added a "Rev 0.6 progress" section that listed the finished items, the background jobs and two open questions (screw seat, button identity). It said that some renders were from earlier runs. - **Check:** The progress section is updated at each milestone, and each item links to its evidence. - **Source:** 2026-10-25T00:31, 00:36, 01:45. ### Give every printed part a thumbnail and one-click files - **Rule:** Each part row needs a thumbnail and STL, 3MF and STEP downloads. Add a slicer deep link where possible, verify the link format, and say whether it was tested. - **Incident:** The user asked: "'CAD, print files and validation' section needs thumbnails" and "Each printed component section needs STL download links for printer, ideally bambu studio compatible links?" The agent confirmed the `bambustudio://open?file=` handler in the installed binary and added it. It did not open the app to test it, and warned that the link may not accept a local non-https URL, with the 3MF download as the fallback. The 3MFs are in print orientation and centred on the 256 mm bed. - **Check:** Every part in the build has a thumbnail, STL, 3MF, STEP and a deep link. The link checker passes. "Untested" is shown next to any unverified link type. - **Source:** 2026-10-24T16:37, 16:43, 17:10. ### Draw cable routes explicitly, in 2D and 3D - **Rule:** Show cable routing as a labelled 2D diagram and 3D cutaways, with colour-coded leads, numbered steps and a live check table. A render of the parts alone does not show the route. - **Incident:** "cable routing between sata drives and the orin carrier is not at all clear in the preview page". The new "Cable routing" section has: - a labelled 2D side view of the whole route and a plan view of a tray; - two 3D cutaways with translucent plastic (red SATA data, yellow board 5 V, orange 12 V); - six routing steps; - a live table of required and available bend radius per route. - **Check:** Each route in the checks JSON appears in the diagram and the table, with the same names. - **Source:** 2026-10-25T00:46, 01:23; `README.md` (`preview/cable-route-diagram.png`). ### Put the source evidence on the page - **Rule:** When a design decision rests on a datasheet or schematic, show the crop next to the decision, so the user can check it without opening the PDF. - **Incident:** After the 12 V dispute, crops of schematic sheet 27 (SATA power pinout) and sheet 3 (power tree) were added to the Cable routing section, and the user was pointed to `#cables`. - **Check:** Every "per the schematic" or "per the datasheet" claim on the page has an image or a link with the sheet or page number. - **Source:** 2026-10-25T01:29, 01:30. ### Answer recurring "which part" questions with a table and a labelled render - **Rule:** When the user is unsure which variant to use, add a decision table on the page, not just a chat answer. - **Incident:** "P1M and P! don't support stacking the drives right?" and "Where's the base for stacking with drives?" The agent added a "Which base do I print?" section with a labelled underside render: desktop P1; wall or robot without storage P1M; any storage P1 + trays (+ P17 for wall or robot). - **Check:** Each variant in the part list appears in exactly one row of the table. - **Source:** 2026-10-25T01:30, 01:36. ### Provide close-ups of the feature under discussion, at stable URLs - **Rule:** For each detailed feature, render a close-up or half-section and give it a stable file name, so the user can point at it. - **Incident:** The agent made close-ups for each detailed feature: - `heatsink-tiedown.png`, a section through the tie-down; - `hex-inlet.png`, showing the cell chamfer; - `lid-column-detail.png`, showing the column buttress; - `support-detail.png`, a half-cut of both standoff types. The user used the URL of `lid-column-detail.png` to show exactly which fillet they meant. - **Check:** Every feature changed in a revision has at least one close-up linked from its section. - **Source:** 2026-10-24T07:18, 15:09; 2026-10-25T01:45, 02:04, 02:15. ### Keep the review URL stable - **Rule:** When restarting the preview server, reuse the same address so the user's open tab keeps working, and save the URL to a file. - **Incident:** "can you serve it again?" The agent checked that port 43871 was free, served on it again, and confirmed that the page and images load. `tools/serve_preview.py` writes the address to `preview/server-url.txt`. - **Check:** After a restart, fetch the page and one image at the saved URL. - **Source:** 2026-10-24T14:40. ### Make wheel zoom fine enough to inspect small features - **Rule:** Use a moderate shared zoom sensitivity and preserve continuous wheel/trackpad deltas. Do not add a different zoom implementation to each project. - **Incident:** During a later CAN-housing review on 2026-10-27, the user asked for more fine-grained wheel control in the standard viewer. The shared stage now uses OrbitControls `zoomSpeed: 0.25`; custom integrations can override it. This also affects dolly and pinch gestures. - **Check:** In the browser at device pixel ratio 1, a 100-pixel wheel event changed camera distance by 1.29059%, versus 5.26316% at the prior sensitivity. Four fine increments matched one old increment; reversing the wheel restored distance. A 1-pixel delta moved only 0.012824%, with no JavaScript exceptions. - **Source:** CAN breakout review, 2026-10-27; `src/cadagent/webkit/stage.js` and a browser check on the served project viewer. This is a later-project follow-up, not evidence from the original J501 transcript. --- Source: https://cad-agent.valpatel.com/lessons/09-agent-process.md # 09 — Agent process ### Fold mid-turn messages into the current work and report on each - **Rule:** Treat each mid-turn message as a requirement that joins the current plan. Acknowledge it, and account for it in the final report. - **Incident:** Within five minutes the user sent several new requests in a row: - reset and flashing button cutouts; - RP-SMA positions "(2x each)", which are pigtails with nuts; - thumbnails; - STL and Bambu links; - fit-template standoffs. The report opened with "All four of your requests are now in Rev 0.5.2" and covered every item, including the open question. - **Check:** The final report has one entry per user message since the last report, each with a status: done, partial or needs input. - **Source:** 2026-10-24T16:34–16:39, 17:10. ### Give short status during long work, and say what is stale - **Rule:** During long runs, post one-line status updates: what is running, what is waiting, and which outputs are out of date. - **Incident:** The agent posted lines such as "The build is running in the background; I'll pick up when it finishes" and "Some images are still from earlier runs until the full rebuild finishes." The user still asked to see progress, which led to the on-page progress section (see 08). - **Check:** No silent gap longer than one pipeline stage. Every report says which artefacts are stale. - **Source:** 2026-10-24T14:44, 16:46; 2026-10-25T00:36, 01:23. ### Ask before outward or irreversible actions - **Rule:** Before committing, pushing, opening PRs, publishing repos or installing third-party plugins, ask and wait for a clear yes. Build locally first. - **Incident:** - The `vptest cad` work stayed uncommitted in a separate worktree: "I'll ask before committing or opening a PR." - For the proposed public repo, the agent proposed building locally first and publishing only after review, because public content may be copied or indexed. - Installing text-to-cad or a KiCad MCP server "runs their code on your machine", so the agent asked for a go-ahead and had the survey install nothing. - The private repo was created only after the user asked for one. - **Check:** A list of outward actions (git commit/push, repo create, PR, package or plugin install, public upload) that need explicit user approval in the current conversation. - **Source:** 2026-10-25T00:36, 01:45, 02:18, 02:19, 02:20, 02:23. ### Check whether it already exists before building it - **Rule:** Before scaffolding a new tool or framework, search for prior art. Record licence, activity and fit, and prefer adopting it and contributing the gaps. - **Incident:** The agent had started planning a new cad-agent framework ("I'm starting Phase 0 now"). The user said: "I can almost 100% guarantee this already exists?" A search found text-to-cad (MIT, about 23,000 stars at the time), which already ships CAD and DFM skills for Claude Code, Codex and others, plus several KiCad MCP servers. The plan changed to: adopt the best tools, survey the field properly, test-drive them on this project, and contribute only the real gaps (designing an enclosure around a real board, cable bend radius, fastener stack length, evidence-backed review). - **Check:** A landscape file (here `research/landscape.md`) exists before any new framework code. Each gap claimed is backed by a search result. - **Source:** 2026-10-25T02:18, 02:19. ### Mine and handle only the data the user selects - **Rule:** Limit history mining and data handling to the sources the user names. Write that scope down where future runs will see it. - **Incident:** "You shouldn't mine -all- session histories, only this one", and "This one with J501 is important." The repo README and a saved standing preference record the scope. The extractor keeps only user and assistant prose and strips personal details. - **Check:** The miner takes an explicit session ID, never a glob. Its output header names the single source. - **Source:** 2026-10-25T02:22, 02:25. ### Diagnose desktop problems without disrupting the user's session - **Rule:** For problems on the user's machine, diagnose first. Use the least disruptive fix, restore any setting you touch, and never log out, restart or kill the user's processes without asking. - **Incident:** "my mouse cursor looks broken ... I can't click anything". A sub-agent was told to diagnose first and avoid anything that could log the user out. The X server's grab report showed that Bambu Studio held an active pointer grab from a stuck "Seam position" tooltip. Escape and clicking did not release it. The sub-agent briefly enabled the X keyboard grab-break option, sent the ungrab key, and then restored the keyboard options. No apps were closed, and the long-running CAD jobs were left alone. The user was told the project in Bambu was unsaved. - **Check:** Before and after: grab report, keyboard options, pointer position. The final note lists every setting touched and confirms it was restored. - **Source:** 2026-10-25T02:21, 02:23. ### Hand long, independent work to background jobs and agents, and check what comes back - **Rule:** Run slow pipelines and separable sub-projects in the background or in isolated worktrees. Keep working on the main thread, resume agents after interruptions, and verify their claims before relaying them. - **Incident:** - The roughly 15-minute build-and-check pipeline ran in the background while the agent edited docs and the site. - The user asked to "standardize the tooling for the report under some vptest repo sub-folder for CAD designs". One sub-agent first mapped vptest's conventions read-only. A second built `vptest cad` in a separate worktree. - The second agent was cut off by a session restart before it wrote anything, and was restarted. - Its report included a fixed fallback-parser bug with a test that catches it, failing tests compared against a clean HEAD before being called pre-existing, and a tracked file the test suite had rewritten, which it restored. - **Check:** Background agents work in a worktree or scratch copy, never the user's checkout with uncommitted changes. Their reports state what was not done. The parent re-runs at least the key check before reporting success. - **Source:** 2026-10-24T17:35, 17:40, 17:58; 2026-10-25T00:36, 01:44. ### Check facts directly instead of answering from memory - **Rule:** When the user asks a factual question about the current design or the outside world, inspect the artefact or primary source before answering. - **Incident:** On "P1M and P! don't support stacking the drives right?" the agent said: "I'll check both parts directly rather than answer from memory." On prior art it said it was "checking the biggest one directly rather than relying on search snippets". - **Check:** The answer cites the file, part or URL that was inspected. - **Source:** 2026-10-25T01:30, 02:19. --- Source: https://cad-agent.valpatel.com/lessons/10-simulation-and-material.md # 10 — Simulation, material and airflow ### Identify the exact bought part before sizing anything around it - **Rule:** before an envelope, a clearance or a thermal model depends on a bought part, pin down its exact SKU and datasheet, and record the source next to the number. "Same vendor, same board, same purpose" is not the same part. - **Incident:** the J501 enclosure was sized for a 110 × 100 × 50 mm cooler taken from Seeed's *reComputer mini J501* heatsink datasheet (SKU 100099421). The README's reference cooler is a different Seeed product, the WS-RDN-601 (p-5970), 100 × 87 × 34 mm. The lid was about 16 mm taller than it needed to be, and the intake gap was wrong for airflow. Found on 2026-10-26 while building the thermal model from the datasheet. - **Check:** every part dimension in the parameters names its source document. Where the user owns the part, ask them to measure it before printing. ### Judge material savings on slicer grams, not CAD volume - **Rule:** a filament-reduction claim uses the slicer's grams and print time with a named profile (`cad-agent slice`). CAD volume misleads: walls and floors print as perimeters, skins and sparse infill. - **Incident:** the Rev 0.7 base is 293 cm³ of solid, which would be 363 g of PLA, but it slices to 196 g. The lid is 198 cm³ but slices to 164 g, because its 6 mm hex grille is mostly perimeters. The two parts don't scale the same way. - **Gotcha:** Bambu Studio's command line needs flattened profiles (the system profiles inherit from parents; unflattened, the filament density is 0 and it reports 0 g) and `from: system` (a `User` process fails the printer compatibility check). ### A thinner shell must be re-checked under load, and the check must catch it - **Incident:** the first Rev 0.8 lid had a 3.5 mm roof (down from 6 mm). Under 300 N on the lid it: - deflected 2.4 mm, twice Rev 0.7's 1.19 mm; - reached a 99.9th-percentile stress of 19.4 MPa, a safety factor of 1.3 on PLA's layer strength. Rev 0.7 had 6.4 MPa. Its "design" stress (the peak away from the supports) read 56 MPa, but that was one element at a notch. - **Ribs:** the roof topology study showed radial ribs from the intake ring to the walls and corners. - **Sweep:** a parametric sweep (roof 3.5 / 4 / 4.5 mm × no, cross or star ribs, nine FEA runs) picked a 4.5 mm roof with the star ribs: 0.87 mm, 11.7 MPa (safety factor 2.1), 133 cm³ against Rev 0.7's 198 cm³. - **Where the stress was:** the hottest elements located the remaining weak points. Ribs ended on the lid's vent slots, and the rib-to-ring junctions were sharp inside corners. - **Rule:** report deflection, a percentile stress (99.9th) and the peak with its location. One element at a notch is a mesh-dependent spike; a stiffness loss is real. Compare against the previous revision computed the same way, with the acceptance criteria fixed before the sweep. ### Thermal models of printed enclosures - Check the plastic, not just the chip. PLA's heat-deflection temperature is 57 °C and PETG's is 69 °C (Bambu TDS); air leaving a cooler can exceed that. Report the walls' air temperature against a design limit below the HDT. - A fan is a curve, not a flow rate. Model it on its datasheet curve (`cadagent.cfd.Fan`) so the grille, fins and vents set the operating point. - **Check that still air stays still before believing a buoyant case.** The first J501 runs used a uniform *static* pressure on the open boundary (`prghTotalPressure`). Real room air needs the hydrostatic gradient, so the model blew a fake wind through the room: about 350 m³/h, nine times the fan's free-air flow. That made the intake air read as room temperature and every number optimistic. The separate review agent on the cad-agent PR caught it from the boundary velocities (air going *down* through the top of a heated room). Fixed with `p_rgh` uniform (hydrostatic). An unheated test room now stays at 0.009 m/s mean, against 0.62 m/s before. All results were re-run. - **Close the energy balance.** The heat leaving with the air must equal the heat put in. That check would have caught both the draft and a calibration that targeted the wrong power. - Stacked 0.2-0.3 mm fins cannot be meshed at enclosure scale. Use a compact model: a porous block fitted to an analytic plate-fin model (`cadagent.heatsink`). Then turn the CFD's fan flow and intake temperature into the plate temperature with the same model, and say so. - Measure recirculation directly: the air temperature entering the fan, against the room. An intake ring from the grille to the fan is the fix when it is above room temperature. ### Steady CHT of a box in an open room converges slowly: calibrate on local quantities - With the stable settings (velocity relaxation 0.3, energy 0.7), the heat leaving the room and the intake temperature drifted for more than 2000 iterations. That's the buoyancy-coupled circulation settling, not the linear solver: multigrid for energy changed nothing. Tighter energy solves, less energy relaxation, and frozen-flow energy passes all diverged in the first iterations. - What works: - start cautious; - restart with faster relaxation once the flow has formed; - set the fin temperature from the block's own heat, exactly hA (T_fin - mean block air temperature), which is local and settles early; - keep the room's energy balance as the honest "has everything caught up" indicator; - give the room only modest margins (30 mm sides, 40 mm above): every extra litre of slow air is more iterations. - The fan flow changed by 2× between a 16 mm and an 8 mm base mesh: thin shroud plates and grilles need their cells. Compare designs on the same mesh, and say which mesh it was. ### Compute is shared: one heavy solver at a time - MPI CFD runs only as fast as its slowest rank. With topology optimisation, FEA (MKL/PARDISO threads) and another session's jobs on the same 24 cores, the solver slowed from 6 s to about 60 s per iteration. Pause or nice the others (`kill -STOP` on the ranks is safe), and never `pkill -f` a pattern that appears in your own command line. - **Source:** 2026-10-26 (J501 session, Rev 0.8 thermal and material work); `cad/parameters.json` (`thermal`, `cooler`); `tools/thermal.py`, `tools/structure.py`, `tools/topology.py`; Seeed datasheets S03 and S05. --- Source: https://cad-agent.valpatel.com/lessons/11-pcb-evidence-and-review.md # 11 — PCB evidence, enclosure readback and release packaging Distilled from the incident notes of a second project: a two- and four-port CAN breakout PCB with a printed housing, designed with KiCad 10 and cad-agent on 2026-10-26 (repository `mvalancy/pcb-agx-thor-can-breakout`). The board-specific detail (coordinates, net names, project tools) stays in that repository's `.agents/` notes; each **Source** line names the note. Nothing here was electrically or physically tested; the lessons are about CAD evidence. ### Treat ERC, DRC, connectivity and schematic parity as separate evidence - **Rule:** a routed board with zero unconnected items is not a verified board. Keep ERC, DRC violations, unconnected items and schematic parity as separate results, and never reduce a DRC report to its `violations` array. - **Incident:** the first routed KiCad 10 reports showed 0 unconnected items but 100/131 schematic parity warnings. The PCB net names lacked the schematic's root `/` namespace, no-connect pads had no isolated net, and footprint fields were missing. Netlist-based synchronisation and board-only mount attributes closed the parity gap. - **Check:** `cad-agent pcb-check` (docs/pcb.md) fails on any error, warning, unconnected item or parity finding. - **Source:** `.agents/inbox/2026-10-26-pcb-evidence.md` (cad-agent PR #1). ### Run every severity, and account for every ignored check - **Rule:** generate ERC/DRC with `--severity-all`. A default kicad-cli run leaves excluded violations out of the report and `--severity-error` drops warnings, yet both reports look clean. Checks a project switched off (`ignored_checks`) are findings too: accept each one only by name, with a written reason. - **Incident:** the committed DRC report recorded `included_severities: ["error","warning"]` and five ignored checks (for example `missing_courtyard`). The first evidence adapter passed it with no trace of either. A review of the adapter caught it by re-running DRC with `--severity-error`, which still passed. - **Check:** the adapter fails a report whose `included_severities` lacks error, warning or exclusion, and fails every ignored or excluded check key the evidence manifest does not waive with a reason. - **Source:** cad-agent PR #1 review (finding on `pcb.py`); `exports/2port/drc.json` in the PCB project. ### Re-run DRC on the bytes you saved - **Rule:** bind reports to source hashes taken after the last write to the sources. `kicad-cli pcb drc --refill-zones --save-board` writes the board after its JSON, so the report describes the board before the save; run DRC again on the saved board without saving. Touching a report's timestamp is not evidence. - **Incident:** a refill-and-save run produced a report older than the board it described; the export sequence now runs a second, read-only DRC. - **Check:** the bundle records `source_sha256` and `report_sha256`; binding rejects reports older than any source. - **Source:** `.agents/inbox/2026-10-26-report-freshness-formats.md`. ### Check each report's declared hashes with one shared helper - **Rule:** different reports declare different evidence (source hashes, report hashes, mechanical sources, exported solids). Verify whichever maps a report declares, all through one containment-aware function, and use it everywhere a pass is displayed. An empty or invalid declared map fails. - **Incident:** the review workbench applied the PCB-bundle checker to every report with `source_sha256`, so current routing and fabrication reports showed STALE. The standalone report had the opposite gap: it trusted `pass: true` without checking hashes, so a changed solid still passed. Later, the design card and the workbench disagreed about a bundle whose source path left the project root. - **Check:** `cadagent.evidence.hashes_are_current`; regression tests change one source byte and expect STALE in the workbench, the report row and the design card. - **Source:** `.agents/inbox/2026-10-26-report-freshness-formats.md`; cad-agent PR #1 review. ### Measure routing geometry and the return plane; DRC does not - **Rule:** connectivity and clearance checks say nothing about differential pairing or return-path continuity. Measure the shortest layer-aware copper path per signal (excluding stubs such as termination branches), require the protection pads on that path, compare pair imbalance and layer changes, and sample the reference copper under each trace. Route constrained pairs first and reserve the plane beneath them before routing anything else. - **Incident:** boards that passed ERC, DRC and parity had separated pair conductors, and an auxiliary track left a 19.3 mm gap in the reference plane under one pair. A total-copper-length sum hid it by adding the termination branch. - **Check:** `cadagent.pcb_routing` graph/path and paired-spacing measurements, with project-defined limits. They do not establish impedance, data rate, EMC or transient immunity. - **Source:** `.agents/inbox/2026-10-26-can-routing-is-not-connectivity.md`. ### Prove a stitching via joins the main plane, not another island - **Rule:** a via touching copper on both layers may join two isolated islands. When a zone-to-zone ratsnest remains, inspect the filled, connected regions and re-run native connectivity after each stitch. Never disable the unconnected check or treat a zone-to-zone finding as cosmetic. - **Incident:** one DRC `unconnected_items` finding persisted after stitching; the via had joined a small bottom island to a separate front region. A second via where the island overlapped the main-plane region closed it. - **Check:** DRC with `--refill-zones` reports zero unconnected items. - **Source:** `.agents/inbox/2026-10-26-ground-islands-need-a-real-bridge.md`. ### A part substitution is a new design: re-source and re-check it - **Rule:** identify a bought part by manufacturer plus exact MPN plus full supplier code. A short name, pitch or category is not substitution approval. After changing a footprint, rerun electrical and mechanical checks, even within the same connector family. - **Incident:** exact connector pad geometry replaced a generic footprint of the same family and changed clearances, which needed a fresh DRC. A TVS part was referred to by a short family name that matches several products. - **Check:** BOM rows carry exact C-codes (`cadagent.pcb.check_jlc_files`), and a C-code is still not proof of stock or orientation. - **Source:** `.agents/inbox/2026-10-26-pcb-evidence.md`, `.agents/domains/pcb.md` (cad-agent PR #1). ### Align a PCB STEP with a rotation, never a mirror - **Rule:** reorient native or manufacturer STEP assemblies with proper rotations and translations (determinant +1). A mirror can make a symmetric outline fit while reversing every asymmetric connector. Record the transform and apply the same map to labels, port centres, mating envelopes and clamps. - **Incident:** the enclosure import used `mirror('XZ')` to make the board's Y positive. Outline collision checks passed while the ribbon header sat on the mirrored side. A 180° rotation about Z plus a translation fixed it. - **Check:** check one asymmetric feature (a header, a polarised connector) in housing coordinates after import. - **Source:** `.agents/inbox/2026-10-26-preserve-pcb-handedness.md`. ### Give joined features positive overlap; a valid BREP can still mesh badly - **Rule:** a boss or rib that only touches a wall tangentially can give a valid single solid and a non-manifold STL. Joined features need positive volume overlap. Check the solid, the STL and the 3MF separately after every change. - **Incident:** a Ø9.2 mm corner boss touched the inner wall with no overlap; the CAD was valid but the STL had six edges not shared by exactly two faces. Ø9.6 mm (0.2 mm overlap) fixed it. - **Check:** the watertight-mesh check in `cad-agent check`. - **Source:** `.agents/inbox/2026-10-26-tangent-boss-mesh.md`. ### Render final review images from the exported STEP - **Rule:** final assembly pictures should show the deliverable: re-import the exported STEP for each scene and compare visible placement to model coordinates, especially for text, repeated instances and exploded views. - **Incident:** an in-memory render showed two lid labels run together although their centres were 42 mm apart; the STEP readback rendered them correctly. The exported solids were right; the preview was not. - **Check:** render from readback; record export hashes next to the images. - **Source:** `.agents/inbox/2026-10-26-review-export-readbacks.md`. ### Engrave panel artwork in bounded operations - **Rule:** do not subtract one compound of many overlapping text and stroke tools. Cut item by item, fusing only each polyline's own stroke and cap solids, and validate the final solid count and the exported mesh. - **Incident:** one aggregate subtraction ran for more than twelve minutes without finishing; the staged cuts finished a probe in about 109 s with one valid solid. - **Check:** `cadagent.markings.PanelMarkings.engrave`; timing depends on the artwork and is not guaranteed. - **Source:** `.agents/inbox/2026-10-26-panel-engraving-overlap-cost.md` (cad-agent PR #1). ### Package releases from the validated manifest, not a folder glob - **Rule:** release membership comes from the validated public file list. Compare the member hashes of a local package with one built from a clean checkout. - **Incident:** local PCB packages contained KiCad's Git-ignored `.kicad_prl` UI-state files; CI packages built from clean checkouts did not. Both passed source validation because the glob, not the manifest, chose the files. - **Check:** package candidates are filtered through the allowlist; local and clean-checkout ZIP membership match. - **Source:** `.agents/inbox/2026-10-26-release-manifest-allowlist.md`. ### Don't let `.github/README.md` replace the repository overview - **Rule:** GitHub picks the landing README from `.github/`, then the root, then `docs/`. When the root README is the overview, do not create `.github/README.md`; document CI in `.github/workflows/README.md`. After publishing, check the hosted `/readme` API and the visible page, not only local links. - **Incident:** a README-in-every-folder generator created `.github/README.md`, and the public page showed only "CI validation and prerelease publication". - **Check:** `gh api repos///readme --jq .path` returns `README.md`. - **Source:** `.agents/inbox/2026-10-26-github-readme-precedence.md`; https://docs.github.com/en/repositories/managing-your-repositorys-settings-and-features/customizing-your-repository/about-readmes ### Keep CAD checks, fit and qualification as separate gates - **Rule:** a clean CAD check never turns fabrication, physical fit, transient protection, bus timing, stock or supplier orientation green. Check the enclosure against the native PCB STEP with its components, mating plugs, cables, fasteners and tool access, not a bare-board proxy; record physical qualification as pending until measured. - **Incident:** the review playbook for the breakout listed eight steps from carrier revision to physical qualification; the evidence bundle keeps `physical_fit_verified` and `electrical_tested` false and release gates open. - **Check:** design cards show CAD status and open release gates separately (docs/pcb.md). - **Source:** `.agents/playbooks/pcb-review.md`, `.agents/issues/pcb-evidence.md` (cad-agent PR #1). --- Source: https://cad-agent.valpatel.com/lessons/12-original-file-viewer.md # Original-file previews ### Parse the requested original and preserve its identity during recovery - **Rule:** A file preview must parse that file's actual bytes, units and component transforms. Do not substitute a companion with a similar name. If a failed replacement leaves an earlier model visible, name the retained file explicitly and keep the requested download clearly identified. - **Incident:** On 2026-10-29, real barrel STL/3MF print exports had dimensions about 30 × 35 × 100 mm while the STEP was 100 × 35 × 30 mm. Those different export orientations were real; using a sibling would have hidden the difference. Independent review also identified a potential mismatch between candidate title/download and a retained older mesh during an error. - **Check:** `node tests/webkit-file-viewer-browser.mjs` checks known-dimension originals, declared-inch 3MF, translated/reflected instances and `A→failedB→retry` identity. The remote 495-file parser receipt is in `docs/validation/file-viewer-corpus-results.json`; this does not replace browser visual checks. - **Source:** 2026-10-29, PR 63 / issue 62; direct barrel probe and independent actual-parser review. No CAD geometry was changed. ### Verify bundled parser behavior rather than assuming a newer API - **Rule:** Test the pinned parser's actual classifier, unit behavior and dependency recovery. Keep CPU work in a terminable worker and ensure the page can still respond to Cancel. - **Incident:** Three r160's 3MF loader reads unit metadata without applying its scale. Its bundled fflate 0.6.9 ignores a modern unzip filter option, so the wrapper initially tried to validate relationship XML as a model. The STEP runtime internally retries a failed WASM fetch, requiring a sustained dependency failure in the error fixture. These were found using real originals and explicit failure injection. - **Check:** The browser suite validates millimeter/inch conversion and reflected winding; worker wrappers filter actual model keys, preflight STL/ZIP admission, and validate finite indexed surfaces. A busy-worker fixture proves main-page animation frames continue and native Cancel calls worker termination. Failed WASM, stalled response body and failed entry-module fixtures all recover through native Retry. - **Source:** 2026-10-29; `file-mesh-worker.js`, `file-step-worker.js`, `file-loader.js` and the dedicated browser/validator tests. Limits remain explicit: texture images omitted, required 3MF extensions rejected, capped input/triangles, parser deadlines. ### Check the distributed wheel, including dependency notices - **Rule:** Inspect the built package for required runtime, license and source-reference files; a source-tree listing is insufficient. Use visible filenames for required metadata that packaging globs may omit. - **Incident:** Independent review flagged that hidden `.gitmodules` could be absent from a wheel. The viewer supplies its exact upstream contents as `SUBMODULES.gitconfig`, alongside licenses, importer sources and pinned full-source/build/replacement links. The 7.6 MB WASM fits the static host's per-file limit. - **Check:** `uv build --wheel --out-dir /tmp/cad-file-viewer-wheel`; compare every file in `vendor/file-viewer-sources.json` against the wheel's bytes and confirm all seven entry/parser files plus notices are present. - **Source:** 2026-10-29, PR 63 packaging check. Source availability and replacement instructions apply to the pinned build and need fresh review when dependencies change. --- Source: https://cad-agent.valpatel.com/lessons/README.md # Lessons from the J501 enclosure session Lessons for an AI hardware-design agent, mined from **one** Claude Code session: the J501 AGX enclosure design session (session `d8e464a0-f4a5-4edd-9190-6fd66a0508b0`, 2026-10-24 to 2026-10-25). In that session the agent and the user designed a 3D-printed enclosure for a Seeed reServer J501 carrier with a Jetson AGX Orin module, plus storage trays, SATA cable routing and a review website. No other session histories were mined; the user asked for this one only. ## How they were mined - **Input:** a scrubbed, chronological transcript produced by `mining/extract_session.py`. It keeps only the prose of user messages, mid-turn user messages and assistant replies. Tool calls and tool output are left out. Personal data (addresses, paths, hostnames) is replaced with placeholders such as `` and ``. - **Gaps in the transcript:** - Context was compacted at 2026-10-24T08:35. A summary covers the 07:00–07:41 work. - The session restarted between 2026-10-24T18:03 and 2026-10-25T00:31. Most of the storage-tray, chimney and standoff work happened in that window, so it appears only in later assistant summaries. - **Cross-check:** facts were confirmed read-only against the project files `README.md`, `cad/parameters.json` and `exports/*.json`. When a lesson relies on a project file, its **Source** line names the file. - **What counts as a lesson:** user corrections, requirements as the user stated them, assumptions that turned out wrong, checks that caught real bugs (or raised false alarms), and process choices the user endorsed or pushed back on. - **Limits:** - Nothing in this session was printed, sliced or test-fitted. Lessons about fit describe design intent and CAD checks, not physical validation. - Where the brief for this mining run mentioned an incident that could not be found in the transcript or the project files, the lesson says so rather than inventing details. File 08 also includes an explicitly attributed later CAN-project wheel-zoom follow-up (2026-10-27). File 11 comes from a different project: the incident notes of a CAN breakout PCB and housing designed on 2026-10-26. Its Source lines name those notes, which stay in that project's repository. ## Index | File | Topic | |---|---| | [01-verify-from-source.md](https://cad-agent.valpatel.com/lessons/01-verify-from-source.md) | Confirm board facts from schematics, photos and models, not from assumptions | | [02-user-intent-and-requirements.md](https://cad-agent.valpatel.com/lessons/02-user-intent-and-requirements.md) | How the requirements evolved, and the user's corrections | | [03-mechanical-design-rules.md](https://cad-agent.valpatel.com/lessons/03-mechanical-design-rules.md) | Strength, printability, landings, reliefs, windows, grilles, shell | | [04-fasteners-and-assembly-access.md](https://cad-agent.valpatel.com/lessons/04-fasteners-and-assembly-access.md) | Tool access, assembly order, screw length, inserts, drive screws | | [05-cables-connectors-and-routing.md](https://cad-agent.valpatel.com/lessons/05-cables-connectors-and-routing.md) | Mated-plug port windows (standard practice), SATA routing, plug lengths, bend radius, wiring rules | | [06-enclosure-features.md](https://cad-agent.valpatel.com/lessons/06-enclosure-features.md) | Antennas, service pins, storage trays, mount plate, cap, power budget | | [07-verification-and-evidence.md](https://cad-agent.valpatel.com/lessons/07-verification-and-evidence.md) | Checks that caught bugs, false positives, honest claims, stale outputs | | [08-review-site-ux.md](https://cad-agent.valpatel.com/lessons/08-review-site-ux.md) | What the user wanted to see on the review site, and why | | [09-agent-process.md](https://cad-agent.valpatel.com/lessons/09-agent-process.md) | Mid-turn messages, status, consent, prior art, scope, delegation | | [10-simulation-and-material.md](https://cad-agent.valpatel.com/lessons/10-simulation-and-material.md) | Exact bought parts, slicer grams, re-checking thinner shells, thermal models of printed enclosures, shared compute | | [11-pcb-evidence-and-review.md](https://cad-agent.valpatel.com/lessons/11-pcb-evidence-and-review.md) | KiCad report severities and waivers, parity, source hashes, routing geometry, STEP handedness, readback renders, release allowlists (from a second project; see below) | | [12-original-file-viewer.md](https://cad-agent.valpatel.com/lessons/12-original-file-viewer.md) | Original-file identity, parser units/frames, cancellable loading, dependency and wheel evidence | ## Lesson format ```markdown ### - **Rule:** one or two sentences, usable on any project. - **Incident:** what happened in this session (specific and factual; brief user quotes where they matter). - **Check:** how an agent or tool verifies it (a concrete check, threshold or artefact). - **Source:** transcript timestamp(s) such as 2026-10-24T16:35, and/or a project file. ``` Timestamps are UTC as they appear in the transcript, truncated to the minute. Part numbers (P1, P9, P15 and so on) are the project's printed-part IDs. ## Later rendered-motion incidents The 2026-10-28 Gyropup pivot validation lesson is maintained in [the rendered-motion domain](https://github.com/Valpatel/cad-agent/blob/dev/.agents/domains/rendered-motion.md), with a [symptom index](https://github.com/Valpatel/cad-agent/blob/dev/.agents/SYMPTOM-INDEX.md). It is not part of the original J501 transcript mining. --- Source: https://cad-agent.valpatel.com/research/agent-toolkits-2026-10.md # Agent toolkits for mechanical CAD, DFM/DFA and FEA: refresh since 2026-10-24 (checked 2026-10-31) For Valpatel/cad-agent #96 (landscape refresh) and #94 (compliant-mechanism engineer). Extends `research/landscape.md` (2026-10-24); it does not repeat the KiCad or benchmark sections. **Method.** Licence, stars, created and pushed dates and commit counts come from `gh api repos/OWNER/REPO` on 2026-10-31. Capabilities come from each README, manifest or source file as read on that day. Candidates came from `gh search repos … --created >=2026-10-15`, `gh search code "snap-fit filename:SKILL.md"` and web search. **(s)** means a search snippet only. **(u)** means unverified. **Nothing was installed or run.** Stars below 20 mean "new, unproven", not "bad". ## 1. Changes to projects already in landscape.md | Project | Change since 2026-10-24 | Effect on our recommendation | |---|---|---| | [earthtojake/text-to-cad](https://github.com/earthtojake/text-to-cad) | **v0.8.0 (2026-10-27) → v0.8.4 (2026-10-30)**. PR #568: the "xbf engine" replaces the 0.7 file pipeline with warm workers and a `Document` API. The migration guide says "no authoring compatibility layer… no shims, no aliases… no codemod" ([migrating-0.7-to-0.8.md](https://github.com/earthtojake/text-to-cad/blob/main/docs/migrations/migrating-0.7-to-0.8.md)). The plugin now pins `cadgen==0.8.4` ([claude.mcp.json](https://github.com/earthtojake/text-to-cad/blob/main/claude.mcp.json)). Telemetry is **still on by default** once cadgen has shown its notice; `DO_NOT_TRACK=1` or `CADGEN_TELEMETRY=0` turn it off ([cli/telemetry.py](https://github.com/earthtojake/text-to-cad/blob/main/packages/cadgen/src/cadgen/cli/telemetry.py)). The PCB PR #518 was **closed unmerged** on 10-28. Issue #626 (large-STEP viewer memory) was closed as completed on 10-28. The sheet-metal unfold proposal #614 is still open | Still adopt, but **pin 0.7.26 or 0.8.4 deliberately**. 0.7 scripts break on 0.8. Re-test the viewer with the J501 STEP. The PCB-to-enclosure path via text-to-cad is gone for now | | [gumyr/build123d](https://github.com/gumyr/build123d) | `BuildSheet` sheet metal is on the dev branch: `flange`, `bend`, `corner_relief`, `bend_relief`, `hem`, `jog`, `miter`, `thicken`, and **`unfold`** to a flat pattern from thickness, K-factor and bend radius ([docs/sheet_metal](https://github.com/gumyr/build123d/tree/dev/docs/sheet_metal)). First commit 2026-07-21, latest 2026-10-21. It is **not in v0.13.0** (2026-09-21): the file 404s at that tag | Watch; plan to adopt when released. It covers text-to-cad #614 and our sheet-metal checks | | [jdilla1277/agentcad](https://github.com/jdilla1277/agentcad) | v0.7.1 (2026-10-30), comments in the live viewer; 191★ | No change | | [KittyCAD/mcp](https://github.com/KittyCAD/mcp) | v0.33.0 (2026-10-30) | No change (closed cloud engine) | | [pzfreo/build123d-mcp](https://github.com/pzfreo/build123d-mcp) | No release since v0.3.91 (2026-10-15) | No change | ## 2. New, or missing from landscape.md ### 2a. Slicers (process-aware loop) | Project | Licence | Activity | What it does | Security | Rec. | |---|---|---|---|---|---| | **OrcaSlicer 2.5.0 built-in MCP server + Design tab** ([v2.5.0-beta](https://github.com/OrcaSlicer/OrcaSlicer/releases/tag/v2.5.0-beta), 2026-10-27; [`McpControl.cpp`](https://github.com/OrcaSlicer/OrcaSlicer/blob/main/src/slic3r/GUI/CAD/McpControl.cpp)) | AGPL-3.0 | Official project; OCCT 8.0.1; kernel tests in CI ([scripts/CAD/README.md](https://github.com/OrcaSlicer/OrcaSlicer/blob/main/scripts/CAD/README.md)) | Turned on under Preferences › General › AI features › MCP server. Loads, arranges and slices models, sets presets, supports and modifiers, runs calibration, and models parts in a parametric Design (CAD) tab | Server "accepts connections from that computer only" ([PRIVACY.md](https://github.com/OrcaSlicer/orcaslicer-mcp-skills/blob/main/PRIVACY.md)). Needs a running GUI; the GUI checks need OpenGL. Beta | **Watch** until 2.5.0 is stable, then **adopt as an external process** (AGPL: never link). It could replace our flattened-profile Bambu CLI for slice evidence | | [OrcaSlicer/orcaslicer-mcp-skills](https://github.com/OrcaSlicer/orcaslicer-mcp-skills) | AGPL-3.0 | Created 2026-10-29, 5 commits, official org | CC and Codex plugin: one SKILL.md and references (actions, settings, supports, calibration, cad, output) | No code, no network; plugin only ([PRIVACY.md](https://github.com/OrcaSlicer/orcaslicer-mcp-skills/blob/main/PRIVACY.md)) | **Adopt as a plugin** with Orca 2.5. Do not copy its text into our MIT repo (AGPL) | | [MaxEllis/orcaslicer-mcp](https://github.com/MaxEllis/orcaslicer-mcp) | AGPL-3.0 | 86★, v0.1.17 (10-12) | Third-party Orca MCP | — | Skip; the built-in server supersedes it | ### 2b. build123d / CadQuery agent toolkits (nearest to cad-agent) | Project | Licence | Activity | What it does on our tasks | Security | Rec. | |---|---|---|---|---|---| | [KD5RYN/b123d-print](https://github.com/KD5RYN/b123d-print) | MIT | Created 2026-10-17; at least 100 commits; PyPI; docs site; CI; 2★; one maintainer | MCP + CLI + CC plugin. `check` runs: valid, overlap, overhang (bridge vs cantilever), bridge length, wall/thin (knife edges), holes (round-top horizontal holes sag), bed-edge fillet, **tip-over** (Orca auto-brim formula), **gap/pip_clearance** for print-in-place, fit, probe, mate/align ([checks.md](https://github.com/KD5RYN/b123d-print/blob/main/docs/using/checks.md)). `suggest_orientation` ([orient.py](https://github.com/KD5RYN/b123d-print/blob/main/src/b123d_print/orient.py)). Examples: flip hinge, detent, overhang/bridge coupon | `.mcp.json` pins `b123d-print==0.3.2` via `uvx`; SECURITY.md (it runs AI-written code and can serve several users over HTTP/SSH); no telemetry hits in code search | **Vendor ideas / borrow checks** (MIT): tip-over, round-top hole, bed-edge fillet, pip-gap. Watch for maturity | | [ballerabdude/agent-cad-works](https://github.com/ballerabdude/agent-cad-works) | Apache-2.0 | Created 2026-10-26, 4 commits, 1★ | build123d motion sweep for collisions, single watertight solid, nothing printing in mid-air, OrcaSlicer times, fit against vendor STEP, BOM, FreeCAD exploded views, Blender renders; CC plugin; 16 tests | `uv sync` pinned environment | **Watch**; it overlaps cad-agent almost one for one. Compare its gates with ours | | [gjaloyan/print3d-designer](https://github.com/gjaloyan/print3d-designer) | MIT | Created 2026-10-28, 13 commits | Skill: measures a reference picture, builds from tested shapes, silhouette IoU ≥ 0.92 per view, slices with the user's presets, **reads the G-code back layer by layer** | — | Watch; G-code readback is a good evidence idea | | [SiddhuYen/eitri](https://github.com/SiddhuYen/eitri) | NOASSERTION (no standard LICENSE found) | 72 commits since 10-18 | Local agent: build123d, geometry report (holes, thinnest wall, knife edges, clearances), browser editor | — | Skip code (licence unclear); ideas only | | [pzfreo/step-diff-demo](https://github.com/pzfreo/step-diff-demo) + [pzfreo/specify-core](https://github.com/pzfreo/specify-core) | Apache-2.0 | 16★; specify-core-rust 0.1.5 (2026-10-31) | A STEP diff comment on every PR: named feature changes ("depth 11 → 13"), before/after picture, volume/area/bbox, and manufacturing answers carried to the new revision | GitHub Action | **Adopt candidate** for the review packet (#97 coverage, PR reviews). Trial on one product repo | | [naman113/Designstudio](https://github.com/naman113/Designstudio) ("Buildcore") | MIT | 8★, 3 commits | STEP → auto-dimensioned PDF drawings, grouped BOM, GLB viewer, parts catalogue (Docker) | Docker compose, local port 8800 | Watch | | [heartland-eng/bd_hardware](https://github.com/heartland-eng/bd_hardware) | **none** | 1 commit, README only | "Function-first hardware feature library for build123d … snap fits" | — | Skip (no code, no licence) | ### 2c. Vendor MCP servers missing from landscape.md (closed CAD) | Server | Status | Rec. | |---|---|---| | Autodesk **Fusion MCP** (local; Fusion must be running) and **Fusion Data MCP** (cloud) | Announced around 2026-04 ([engineering.com](https://www.engineering.com/autodesk-announces-fusion-mcp-servers-and-more-ai-updates/); [Autodesk help](https://help.autodesk.com/view/fusion360/ENU/?guid=FMCP-OVERVIEW)) | Skip (closed; no Linux Fusion) | | Autodesk **Fusion Compute MCP** | Public beta, cloud-hosted, no local Fusion needed (s) ([blog](https://www.autodesk.com/products/fusion-360/blog/fusion-compute-mcp/); the page returned 403 to fetch) | Watch | | PTC **Onshape FeatureScript MCP** | Launched 2026-08-13 via Onshape Labs / App Store ([press release](https://www.placera.se/pressmeddelanden/ptc-ptc-advances-leadership-in-ai-driven-design-with-launch-of-onshape-featurescript-mcp-server-20260813)) (s) | Skip (SaaS) | | SolidWorks community MCPs, e.g. [soheil-mp/solidworks-mcp](https://github.com/soheil-mp/solidworks-mcp) (MIT, 10★, created 10-23) | Windows-only | Skip | ### 2d. FEA / simulation agents | Project | Licence | Activity | What it does | Security | Rec. | |---|---|---|---|---|---| | [novasolver/novasolver-studio](https://github.com/novasolver/novasolver-studio) | GPL-3.0 | Created 2026-10-25, at least 100 commits | Local CAE with an MCP server: CalculiX structural/thermal, OpenFOAM, and a built-in quadratic-tet solver. Every result passes **ran → converged → verified** gates (Roache GCI mesh convergence; closed-form templates). The README lists nonlinear (plasticity, large deformation), and contact (mortar, tied) plus fatigue "0.7" with a Hertz check ([README](https://github.com/novasolver/novasolver-studio)) | "No account, no upload, no telemetry"; Windows download; browser demo | **Watch**; run only as an external process (GPL). **Borrow the 3-gate idea** for `cadagent.fea` | | [WifiLast/freecad-mcp](https://github.com/WifiLast/freecad-mcp) | **none** | 2 commits (10-17) | FreeCAD FEM + gmsh + CalculiX statics; SIMP topology optimisation keeping mounting faces exact; dimension optimisation | **Binds `0.0.0.0:2022` by default** (streamable HTTP) | Skip | | [V0v1kkk/freecad-engineering](https://github.com/V0v1kkk/freecad-engineering) | MIT | 3★, 2026-08 | Skills: `fdm-structural-review` (cites ASTM F3489/F3529, ISO; a material-profile validator script), `mechanical-strength-review`, `freecad-fem-check`, `mechanical-constraint-analysis` | — | **Vendor ideas** for the compliant-mechanism agent's evidence checklist | | [n3r/AgentCAD](https://github.com/n3r/AgentCAD) `fem-workflow` skill | Apache-2.0 | 7★, 100 commits, macOS-first | gmsh + FEM workflow; says contact and nonlinearity are out of scope | — | Watch | | [google/feabench](https://github.com/google/feabench) ([arXiv 2504.06260](https://arxiv.org/abs/2504.06260)) | Apache-2.0 | — | LLM agents on FEA problems; **needs a COMSOL licence**; no agent fully solved a problem (s) | — | Skip (COMSOL); cite as prior art | ### 2e. DFM / DFA | Project | Licence | What it does | Rec. | |---|---|---|---| | [Vivek-Boora/dfm-agent](https://github.com/Vivek-Boora/dfm-agent) | **none** | STEP → optimal pull direction, faces classed core/cavity/undercut, draft against pull, parting-line loop, Three.js view | Ideas only, for the moulding checks (no licence) | | [shayya/dfm-agent](https://github.com/shayya/dfm-agent) | none | Claude Agent SDK + pythonOCC; "day 4", topology counts only | Skip | | Boothroyd Dewhurst [DFM Design Review Checklist](https://www.dfma.com/resources/pdf/dfm-design-review-checklist.pdf) | vendor PDF | Process prompts (§3 of fea-and-process-tools.md) | Cite; seed #97 | ### 2f. Published skills for compliant mechanisms and snap fits **Yes, several exist**, all created in 2026, all prompt-only, and none with tested calculators: | Skill | Licence | Activity | Content | Quality notes | Rec. | |---|---|---|---|---|---| | [static74/3dp-compliant-mechanisms](https://github.com/static74/3dp-compliant-mechanisms) | MIT | Created 2026-10-26, 0★ | FDM-only skill: selection table (grip-fin lids, snap-in tabs, S-bracket clips, forked detent, flexible T-slot, fluted pins, printed vs metal springs with capture rules, glue features); `fundamentals.md` with an orientation rule, a tagged allowable-strain table (`[derived]` from Bayer rules × Prusament/Polymaker yield), perimeter quantisation and a clearance table; 3 evals with graders; sources in `docs/research` (largely Slant 3D videos) | Every number is tagged with its provenance. Its allowables are about 2× our TDS-derived values for PETG (compliant-mechanisms.md §6). No code, no FEA | **Vendor selectively**: the selection table, eval cases and provenance-tag scheme, with attribution. Recompute the strain table | | [n3r/AgentCAD](https://github.com/n3r/AgentCAD) `skills/snap-fits` | Apache-2.0 | 2026-08 | Cantilever and annular sizing, L ≥ 5t, taper rule, `material_strain.json` (per-material %, FDM derate 50–70 % in-plane), `cantilever_lid.py` | Some rows attributed to "Bayer 1998" (ABS 4–6 %) are not in the Bayer copy we read | Borrow the JSON-schema idea; check every value | | [MP-AI-20/mechanical-engineering-skills](https://github.com/MP-AI-20/mechanical-engineering-skills) `snap-fits`, `design-for-assembly` | MIT | 10★, one push (2026-06-09), "647 skills" | Generic textbook prompts (y = εL²/1.5h, strain tables with ranges) | Looks bulk-generated; few primary citations | Skip | | [dwragon/Fusion360SnapFitGenerator](https://github.com/dwragon/Fusion360SnapFitGenerator) | MPL-2.0 | Created 2026-10-24, v1.1.0 | Fusion add-in (not an agent skill): 5 snap types with strain and force calculation | — | Reference for parameters | | [Kayforkind/skill-slice](https://github.com/Kayforkind/skill-slice) `3d-articulated-print-in-place` · [laurigates/mcu-tinkering-lab](https://github.com/laurigates/mcu-tinkering-lab) `printed-mechanism` · [ghbalf/freecad-ai](https://github.com/ghbalf/freecad-ai) `enclosure` (LGPL-2.1, 601★) | MIT / MIT / LGPL | — | Print-in-place articulation; servo mechanism clash sweep; snap-fit lid option (fixed 1 mm gap, 0.5 mm tab) | Shallow on snaps | Skip | No published skill or agent: - reproduces design-guide worked examples in tests; - carries **process- and orientation-specific allowables from TDS** (beyond static74's derived table); - covers flexure pivots (notch, CAFP, LET) or bistable beams; or - links a snap design to large-deflection FEA or to a printed coupon result. That is the gap cad-agent #94/#95 fills. ## 3. Security notes for anything we might run - **Network binding.** WifiLast/freecad-mcp listens on all interfaces. b123d-print can serve over HTTP/SSH (stdio by default per its plugin config). Orca's server is local-only. text-to-cad's viewer has no auth on 127.0.0.1 (landscape.md). - **Arbitrary code.** Every code-CAD MCP (b123d-print, text-to-cad, agentcad, eitri) runs model scripts written by the agent. Run them in the project venv or a container, never with fleet credentials in the environment. - **Supply chain.** Pin plugin versions. Both text-to-cad and b123d-print use `uvx` with an exact version but unhashed dependency ranges (landscape.md §2 for text-to-cad). - **Telemetry.** text-to-cad is on by default (off with the env vars above). NovaSolver and Orca state none. The others were not audited. - **Licences.** AGPL/GPL tools (Orca, NovaSolver, MaxEllis) run only as separate processes. The Orca skills plugin is AGPL text: install it, do not copy it. Repos without a licence (WifiLast, Vivek-Boora, bd_hardware, eitri) are ideas only. ## 4. Recommendations | # | Item | Decision | |---|---|---| | 1 | OrcaSlicer 2.5 MCP + official skills | **Adopt when 2.5.0 is stable** (external process). Pilot now on a non-fleet workstation for slice evidence and supports | | 2 | text-to-cad 0.8 | **Keep pinned**; decide 0.7.26 vs 0.8.4 explicitly and record it in `docs/toolkit.md`. Keep telemetry env vars | | 3 | step-diff (specify-core) | **Trial** in one product repo's PRs (Apache-2.0) | | 4 | b123d-print checks | **Borrow** tip-over, round-top hole, bed-edge fillet, print-in-place gap as cad-agent checks with seeded-defect fixtures (#97) | | 5 | static74 skill | **Vendor selectively** (MIT, attribution) into `skills/compliant-mechanisms/references/` after recomputing allowables from TDS | | 6 | NovaSolver Studio | **Watch**; copy the ran/converged/verified gate idea, not the code | | 7 | build123d sheet metal | **Watch**, adopt on release | | 8 | Fusion / Onshape / SolidWorks MCPs, FEABench | **Skip** (closed, non-Linux, or COMSOL) | --- Source: https://cad-agent.valpatel.com/research/compliant-mechanisms.md # Compliant mechanisms and single-part joints: references, equations, allowables, process effects (2026-10-31) For Valpatel/cad-agent #94 (compliant-mechanism engineer), #95 (calculators), #97 (pitfalls), #99 (process profiles). Extends `research/landscape.md` (2026-10-24) and `research/simulation-tools.md` (2026-10-26). Neither covers this field. **How this was checked.** "Read" means the text was pulled from the PDF or page on 2026-10-31 (`pdftotext` or the page's own Markdown) and the number is quoted from it. **(s)** means the number comes only from a search-engine snippet of the page, not from reading the page. **(u)** means unverified: from memory, or from a source that could not be opened. **[derived]** means I calculated it from cited inputs; the method is stated beside it. Citation keys such as [BAY] are listed in §10. ## 1. Feature catalogue | Feature | Use it when | Governing equations / reference | Typical failure modes | Process notes | |---|---|---|---|---| | **Cantilever snap**: constant section, tapered to h/2, or width tapered to b/4 | One-off or occasional assembly of a lid, cover or panel; you want the joint stress-free once seated | Bayer Table 1 [BAY]: y = K·ε·l²/h, P = b·h²·E_s·ε/(6l), W = P(μ+tanα)/(1−μ·tanα). DuPont: S = FLc/I, y = FL³/3EI [DUP]. See §2 | Root crack at a sharp fillet; strain over the allowable because the undercut was guessed; creep loss of retention when left deflected; weld line at the hook [DUP] | Moulded: a 90° undercut needs a side core or a slot in the part [DUP]. FDM: deflect within the layers and never stack the beam in Z [KLA][HUBS-SF] | | **U-shaped / L-shaped snap** | Not enough straight length for the strain: folding the arm makes it longer in the same envelope | Bayer recommends a curved-beam analysis and gives no closed form [BAY]. BASF manual pp. V-1…V-4 [BASF] (s). A Fusion add-in implements U-shaped and overlay snaps [F360SF] | Strain peaks at the inner radius of the U; the fold becomes a stress raiser | FDM: the U must lie flat in XY | | **Torsion snap** | Release by pressing a lever; the hook rotates rather than bends | φ_pm[°] = (180/π)·γ_pm·l/r; γ_pm ≈ (1+ν)·ε_pm ≈ 1.35·ε_pm; P₁l₁ = P₂l₂ = γ·G·I_p/r, with I_p = πr⁴/2 for a round bar [BAY] (the PDF text is partly garbled; the form is standard torsion) | Shear fracture of the torsion bar; posts too weak | FDM: run the bar along a layer; posts in Z are weak in bending | | **Annular snap** | Round, rotationally symmetric parts: caps, lamp covers, bearings | y_pm = ε_pm·d with one part rigid (halve the strain if both parts are equally flexible); P = y·d·E_s·X; X_N = 0.62·√[(d₀/d−1)/(d₀/d+1)]/{[(d₀/d)²+1]/[(d₀/d)²−1]+ν} (the square root is on the rendered page; pdftotext drops it; lamp cover: 1.69e-3, Bayer 1.7e-3); a groove far from the tube end needs up to 3× the force [BAY]. DuPont: hub-expansion force from interference stress and geometry factor W [DUP] | Hoop crack at a weld line [DUP]; an inseparable return angle needs a split-cavity mould [BAY] | FDM: a full ring is too stiff, so slot the collar into fingers [F360SF] | | **Living hinge** | Lid and box in one part, many cycles, moulded PP/PE | Moulded PP: 0.012 in (0.30 mm) thick, about 0.060 in (1.5 mm) spacing, a 0.008 in reduction on the side it folds towards, and a 0.030 in radius on the tension side [PL-LH]. Land 1.5 mm, thickness 0.2–0.4 mm [PT-LH] (s). Strain ε = t·θ/(2L) under uniform bending [derived] | Cracks at once if not flexed while warm (K-resin) [PL-LH]; knit line across the hinge [PL-LH] | A 180° fold of 0.3 mm over 1.5 mm reaches ε ≈ 31 % [derived], which only orienting PP/PE survives. FDM PLA/PETG hinges are short-life: print them flat with lines across the hinge axis (u). BOSL2 `living_hinge_mask` models a printed hinge by layer height [BOSL2] | | **Leaf flexure / parallel-guided stage** | Short-stroke guidance without backlash: probe mounts, stages, grippers | Small deflection: one leaf K_θ = EI/L under end moment; a fixed-guided leaf k = 12EI/L³, so two leaves give k = 24EI/L³ and σ_max = 3E·t·δ/L² [derived, beam theory]. Large deflection: PRBM γ = 0.85, K_Θ ≈ 2.65 for end force [PRB][CHEN-PRB] (s). References: Howell [HOW], Smith [SMITH] | Fatigue at the clamp; buckling under axial load; parasitic motion | FDM: leaves in XY, at least 2 perimeters, no infill in the leaf (u) | | **Notch hinge** (circular, elliptical) | Precision pivots with small rotation | Paros & Weisbord 1965, simplified (t ≪ R): θ/M ≈ 9πR^½ / (2E·b·t^{5/2}) (u: the constant was not checked against the 1965 paper; see Lobontiu [LOB]) [PW] | Stress concentration at the throat limits the angle to a few degrees | Needs isotropic, notch-tough material; poor in FDM (the notch sits across layers) (u) | | **Cross-axis flexural pivot (CAFP) / cross-spring** | Larger rotation than a notch, with less centre shift than a single leaf | Haringx 1949: the pivot point is near where the leaves cross and shifts with angle [HAR]. PRBM/CBCM model of CAFPs [CAFP]. The often-quoted K ≈ 8EI/L for leaves crossing at mid-length is **(u)** | Centre shift; stiffness depends on load direction [HAR] | FDM: leaves that cross in the XY plane print. Leaves crossing in Z need bridges (u) | | **LET joint** (lamina emergent torsion) | A rotational joint cut from flat sheet: laser-cut, waterjet or planar-printed | Jacobsen, Chen, Howell, Magleby 2009 give the force-deflection equations: torsion bars and bending segments combined as series/parallel springs [LET]. The equations were not read here (the PDF is bot-blocked): (u) | Parasitic motion, so the off-axis stiffness is low [LET]; torsion-bar shear | Planar by design: printed flat in XY, or cut from sheet. BYU LET-joint chair model [BYU] | | **Bistable latch** (curved beam) | Two stable states without a spring: switches, latches | Qiu cosine double beam, centrally clamped, second mode constrained: bistable when Q = h/t > 2.31; for Q ≥ 6, f_top ≈ 740·EIh/l³, f_bot ≈ 370·EIh/l³, d_mid = 1.33h, d_top ≈ 0.16h, d_bot ≈ 1.92h [QIU] (read) | Second-mode buckling with only one beam; asymmetric clamping; stress relaxation flattens the curve | FDM: the beams must lie in XY; the amplitude h must be ≥ several line widths | | **Detent** (cantilever and bump, ball and spring) | Indexed positions, holding a lid open | Cantilever equations from §2. Holding force uses the same W formula with the return angle α′ in place of α [BAY][derived] | The bump wears; the holding force drifts with friction (the μ ranges in §4) | Printed bumps on sloped faces chatter across the stair-steps [KLA] | | **Spring tab** (printed cantilever or serpentine) | Preload against a part, anti-rattle, battery contacts | Cantilever formulas; design for sustained strain well below the snap allowable (u) | Creep: a preload carried by a printed polymer relaxes. No study of permanently deflected printed snaps was found (§9) | A metal spring is safer for sustained load. static74's skill offers a printed/metal choice for every spring [S74] | | **Crush / press ribs** | A press fit into a drafted or variable hole without tight tolerance | At least three undrafted ribs along the hole [PL-CR]; rib about 2.5 mm diameter with about 0.25 mm interference [RD-CR] (s) | Ribs shear off; hoop crack in a thin boss | Printed: no published values were found, so print a coupon. FDM ribs in Z are strong in shear | | **Print-in-place joint** | Hinges and chains that come off the bed already assembled | XY clearance 0.2–0.4 mm for a 0.4 mm nozzle (forum and third-party guides, not official) [PIP]; FDM 0.5 mm, SLA/SLS/MJF 0.3 mm [HUBS-SF]. PrusaSlicer merges bodies closer than about 0.5 mm unless the slice-gap closing radius is changed [PIP-PS] (s) | Fused joint; elephant's foot locks the first layer | Make Z gaps a multiple of the layer height [PIP] (s). b123d-print's `gap` check fails solids closer than `pip_clearance` [B123] | | **Sheet-metal spring clip / tab** | A metal latch or ground spring cut and bent from tempered strip | Beam formulas with the yield of the temper: 301 full-hard has UTS ≥ 1276 MPa, yield ≥ 965 MPa, elongation ≥ 9 % [ULB] (s). Associated Spring flat-spring design stresses (u, not found) | Cracks at the bend in hard temper; fatigue at the root | Protolabs: features within about 4T of a bend distort; tab width ≥ max(2T, 3.2 mm) [PL-SM]. Bend radius against temper (u) | ## 2. Snap-fit equations and worked examples for tests (Bayer guide, read) Source [BAY]: Bayer MaterialScience, *Snap-Fit Joints for Plastics – A Design Guide* (26 pp). Covestro is the successor company and the issue cites the Covestro edition [COV]; the copy read here is the Bayer-branded PDF, and the Covestro edition prints the same equations and worked examples. Cite them, do not redistribute them. - **Undercut = deflection.** Partially crystalline resins may be strained almost to yield in a single brief snap. Amorphous resins may be strained to about 70 % of the yield strain. Glass-filled resins (no yield point) may be strained to about half the elongation at break. For frequent separation, use about 60 % of the single-use value. - **Taper.** A beam whose thickness falls linearly to h/2 (Table 1 design 2) allows **more than 60 % more deflection** than a constant section: y = 1.09·ε·l²/h. A constant section (design 1) has y = 0.67·ε·l²/h and a width taper to b/4 (design 3) has y = 0.86·ε·l²/h. These two constants are **(u)**: Table 1 is an image in this copy. They agree with the 1.09/0.67 ≈ 1.63 ratio, and 0.67 is exact beam theory for a constant rectangular section (y = PL³/3EI with ε = PLh/2EI gives y = (2/3)·ε·l²/h) [derived]. The Covestro edition's worked examples print 1.09 (design 2) and the general-section 0.55 (design 2) in text (read). The polarised-light figure shows a constant-section arm with 46 % higher strain and 17 % more material than the optimum. - **Root fillet.** Stress concentration levels off near R/h = 0.6, but a large radius makes a thick section that sinks. Use a compromise, and **never less than 0.015 in (0.38 mm)**. DuPont's general rule is a fillet of t/2 and a corner of at least 0.020 in (0.5 mm) [DUP]. - **Mating force:** W = P·(μ+tanα)/(1−μ·tanα). E_s is the strain-dependent secant modulus, taken at the design strain. | Gold test case | Inputs | Expected output [BAY] | |---|---|---| | Example I, tapered hook (design 2, rectangular section) | Makrolon PC; l = 19 mm; b = 9.5 mm; y = 2.4 mm; α = 30°; ε_pm = 4 % with design ε = ½ε_pm = 2 %; E_s(2 %) = 1815 MPa; μ = 0.5×1.2 = 0.6 | h = 1.09·0.02·19²/2.4 = **3.28 mm**; P = **32.5 N**; (μ+tanα)/(1−μ·tanα) = 1.8; W = **58.5 N** | | Example II, ring-segment hook (design 2, shape C) | Bayblend PC/ABS, frequent separation: ε = 0.6×2.5 % = 1.5 %; l = 25.4; r₂ = 20; r₁ = 17.5; h = 2.5; θ = 75°; K₂ = 2.67 (Fig. 10) | y = 1.64·K₂·ε·l²/r₂ = **2.11 mm**. Cross-check: c₂ = 2.52 mm, y = 0.55·ε·l²/c = 2.11 mm | | Annular lamp cover | Makrolon; d = 200; t = 2.5; undercut 2×1 mm (equal stiffness); α = 45° taken as 30° effective; E_s = 2200 MPa; d₀/d = 1.025 → X_N = 1.7e-3 | ε = 0.5 %; P = **748 N**; W = 748×1.8 = **1346 N** | These three cases are the acceptance tests the issue asks for ("calculators reproduce the design guide's worked examples"). ## 3. Allowable strain tables (moulded resin) **Bayer Table 2** [BAY] (read): short-term strain limits at 23 °C for a single assembly; use about 60 % for frequent separation. | Resin | Single | Frequent (×0.6) | |---|---|---| | Apec high-heat PC | 4 % | 2.4 % | | Bayblend PC/ABS | 2.5 % | 1.5 % | | Makroblend PC blends | 3.5 % | 2.1 % | | Makrolon PC | 4 % | 2.4 % | | Makrolon PC, 10 % glass | 2.2 % | 1.3 % | | Makrolon PC, 20 % glass | 2.0 % | 1.2 % | **DuPont Table 10.06** [DUP] (read): suggested allowable strain for lug-type snap fits. | Resin | Used once (new material) | Used frequently | |---|---|---| | Delrin 100 (POM) | 8 % | 2–4 % | | Delrin 500 (POM) | 6 % | 2–3 % | | Zytel 101 (PA66), dry | 4 % | 2 % | | Zytel 101, 50 % RH | 6 % | 3 % | | Zytel GR (glass), dry | 0.8–1.2 % | 0.5–0.7 % | | Zytel GR, 50 % RH | 1.5–2.0 % | 1.0 % | | Rynite PET GR | 1 % | 0.5 % | | Crastin PBT GR | 1.2 % | 0.6 % | | Hytrel (TPC elastomer) | 20 % | 10 % | - **BASF** *Snap-Fit Design Manual*, p. IV-4, has allowable strain and friction for eight resins, with worked examples for an Ultradur PBT grade and an Ultraform POM grade [BASF]. The values were **not read**: the tables are images, and only unofficial Scribd/studylib copies exist. - **Celanese/Ticona**: a dynamic strain limit up to 70 % of the yield strain for resins with a yield point, and 60 % of that for repeated engagement [CEL]. These figures are (s): the OCR is garbled. - **Older Bayer table.** Third-party skills quote ABS 4–6 % and PA 4–6 % "from the Bayer 1998 manual" [AGCAD]. That is **(u)**: the copy read here has only the six Bayer rows above. Do not carry those values over without the original. ## 4. Friction coefficients (Bayer Table 3, plastic on steel; same-material factor in brackets) [BAY] (read) PTFE 0.12–0.22 · PE rigid 0.20–0.25 (×2.0) · PP 0.25–0.30 (×1.5) · POM 0.20–0.35 (×1.5) · PA 0.30–0.40 (×1.5) · PBT 0.35–0.40 · PS 0.40–0.50 (×1.2) · SAN 0.45–0.55 · PC 0.45–0.55 (×1.2) · PMMA 0.50–0.60 (×1.2) · ABS 0.50–0.65 (×1.2) · PE flexible 0.55–0.60 (×1.2) · PVC 0.55–0.60 (×1.0). ## 5. FDM anisotropy: in-plane (X-Y) vs inter-layer (Z) data from manufacturer TDS (read) All specimens were 100 % infill, ISO 527 / GB/T 1040. Z means pulled across the layers. | Material (TDS version) | E XY / Z (MPa) | UTS XY / Z (MPa) | Elong. at break XY / Z (%) | Z/XY strength | Z/XY strain | Source | |---|---|---|---|---|---|---| | PLA Basic, Bambu (V2.0) | 2680 / 2160 | 39 / 35 | 12.2 / 7.5 | 0.90 | 0.61 | [BBL-PLA] | | PLA Matte, Bambu (V2.0) | 1960 / 1670 | 32 / 25 | 32.8 / 4.8 | 0.78 | 0.15 | [BBL-PLAM] | | PolyLite PLA, Polymaker (V5.4) | 3427 / 3065 | 52.3 / 40.5 | 6.3 / 1.8 | 0.77 | 0.29 | [PM-PLA] | | PETG Basic, Bambu (V2.0) | 1460 / 1120 | 48 / 39 | 11.2 / 5.7 | 0.81 | 0.51 | [BBL-PETG] | | PETG HF, Bambu (V1.0) | 1810 / 1540 | 34 / 23 | 8.6 / 5.1 | 0.68 | 0.59 | [BBL-PETGHF] | | PETG-CF, Bambu (V2.0) | 2460 / 1340 | 59 / 38 | 10.4 / 4.7 | 0.64 | 0.45 | [BBL-PETGCF] | | PolyLite PETG, Polymaker (V5.4) | 2117 / 1899 | 50.8 / 42.8 | 8.4 / 3.3 | 0.84 | 0.39 | [PM-PETG] | | ASA, Bambu (V2.0; annealed and dried 80 °C/12 h) | 2450 / 2120 | 52 / 35 | 9.2 / 4.6 | 0.67 | 0.50 | [BBL-ASA] | | PolyLite ASA, Polymaker (V5.4) | 2379 / 1965 | 43.8 / 32 | 6.7 / 1.65 | 0.73 | 0.25 | [PM-ASA] | | PolyMide CoPA, dry (annealed 80 °C/6 h) | 2703 / 2209 | 78.0 / 45.8 | 12.7 / 1.3 | 0.59 | 0.10 | [PM-COPA] | | PolyMide CoPA, wet (6.16 % moisture) | 724 / 660 | 34.3 / 13.7 | 13.2 / 1.7 | 0.40 | 0.13 | [PM-COPA] | | Fiberon PA6-CF20, dry (annealed 100 °C/16 h; V1.1) | 8637 / 3760 | 109.3 / 54.0 | 2.1 / 1.9 | 0.49 | 0.90 | [PM-PA6CF] | | Fiberon PA6-CF20, wet | 2508 / 1056 | 54.7 / 25.5 | 7.0 / 6.7 | 0.47 | 0.96 | [PM-PA6CF] | | PA6-CF, Bambu | — | — | 5.8 / 3.7 | — | 0.64 | [BBL-PA6CF] (s; the PDF now returns 404) | | TPU 95A HF, Bambu (V1.0) | 9.8 / 7.4 | 27.3 / 22.3 | >650 / >480 | 0.82 | ≥0.74 | [BBL-TPU] | | PolyFlex TPU95, Polymaker (V5.4) | 33.6 XY (ISO 37) | — | 551 XY | — | no Z data | [PM-TPU] | Reading the table: - **Strain to failure across the layers falls far more than strength.** For PLA, PETG, ASA and CoPA the Z/XY strength ratio is 0.40–0.90 (0.59–0.90 without wet CoPA), but the Z/XY elongation ratio is 0.10–0.61. How much of the *allowable* this costs depends on which limit governs in §6. Where 0.7·UTS/E governs, or the two limits are close (PLA, PETG, Bambu ASA), the allowable across the layers is 78–100 % of the in-plane value. Where half the elongation at break governs across the layers (Polymaker ASA, CoPA) it falls to 26–64 %. The orientation rule below applies either way: the notch effect of layer lines is not in a tensile test. - **Allum et al. 2020** found that the bond between layers has bulk strength in printed PLA. Their explanation for the anisotropy is the extruded-filament geometry: grooves and voids concentrate strain, not incomplete bonding [ALL]. So layer lines act like notches, and Bayer's "half the elongation at break" rule for materials without a yield point is the right model for Z. - **Carbon fibre lowers in-plane strain** (PA6-CF20: 2.1 % XY dry), so CF grades are poor for snap fits even though they are strong. Moisture roughly halves CF-nylon strength [PM-PA6CF]. That matches `cadagent.fea`'s ×0.6 humid factor. - **Orientation rule.** Lay the flexing member in XY and keep the joining direction independent of the bending direction. A cantilever built along Z is "poor", and the stair-step notches add stress concentration [KLA]. Hubs: avoid Z-built cantilevers; MJF root at least 1 mm thick; fillet ≥ 0.5×root thickness; width ≥ 5 mm [HUBS-SF]. Schreiber et al. 2021 found that moulding guidelines transfer poorly to FDM and SLS [SCH] (s). **HP Jet Fusion 5200 (MJF), XY / Z** [HP] (read): | Material | UTS (MPa) | Elong. at yield (%) | Elong. at break (%) | |---|---|---|---| | PA 12 | 50 / 50 | 10 / 8 | 17 / 9 | | PA 11 | 54 / 54 | 25 / 20 | 40 / 25 | | PA 12 GB | 31 / 30 | 8 / 4 | — | | PP | 29 / 29 | 9.5 / 9.5 | 20 / 14 | MJF is isotropic in strength but not in strain. **SLA (Formlabs).** - Tough 1500 V2: E about 1460 MPa, elongation 155 % [FL-T1500] (s). - Formlabs does not recommend Tough 2000 for living hinges [FL-T2000]. - No XY/Z breakdown was found, so SLA isotropy is (u). ## 6. Printed allowable strain: a starting rule to be confirmed by coupons [derived] Rule: 1. Single assembly: ε_single = min(0.7·UTS/E, 0.5·ε_break), applied separately to XY and Z values. 0.7·σ/E is Bayer's amorphous rule using UTS/E as a lower bound on the strain at maximum stress. 0.5·ε_break is Bayer's no-yield rule. 2. Repeated assembly: ε_repeat = 0.6·ε_single. 3. Never exceed the moulded value for the same polymer family (§3). 4. In Z, use min(Z, XY). 5. Bayer's own example designs at ½ε_pm, which is a factor of 2. | Material (TDS) | XY single / repeat | Z single / repeat | static74 skill, in-plane single / repeat / across layers [S74] | AgentCAD table, design value before its printing derate [AGCAD] | |---|---|---|---|---| | PLA (Polymaker) | 1.1 / 0.6 % | 0.9 / 0.5 % | 2.0 / 1.2 / ≤0.5 % | 1.2 % | | PLA Basic (Bambu) | 1.0 / 0.6 % | 1.0 / 0.6 % | — | — | | PETG (Polymaker) | 1.7 / 1.0 % | 1.6 / 0.95 % | 3.6 / 2.1 / ≤1.0 % | 3.0 % | | PETG Basic (Bambu) | 2.3 / 1.4 % | 2.3 / 1.4 % | — | — | | PETG HF (Bambu) | 1.3 / 0.8 % | 1.0 / 0.6 % | — | — | | ASA (Polymaker) | 1.3 / 0.8 % | 0.8 / 0.5 % | 2.0 / 1.2 / 0.3–1.0 % | — | | ASA (Bambu) | 1.5 / 0.9 % | 1.2 / 0.7 % | — | — | | CoPA, dry (Polymaker) | 2.0 / 1.2 % | 0.65 / 0.4 % | 3–4 / 2 / ≤0.4 % | PA 6 % (moulded basis) | | CoPA, wet | 3.3 / 2.0 % | 0.85 / 0.5 % | — | — | | PA6-CF20, dry | 0.9 / 0.5 % | 0.9 / 0.5 % | — | — | | TPU 95A | strain does not govern; size for force and retention | — | ≥10 % | — | - The derived values are **about half** of static74's for PETG, which applied 70 % of an estimated yield strain. AgentCAD's 3.0 % is before its own printing derate. After that derate (1.5–2.1 % in the layer plane, 0.9 % across the layers) it agrees with this table. - Rule 3 has no moulded value to compare PLA, PETG or ASA with: none of the guides read here lists them. Treat every row as a hypothesis until the cad-agent coupon (#94 item 5) measures it. - The repo's existing `cadagent.fea.MATERIALS` already uses weak-direction strengths for printed materials, which is consistent. ## 7. How the process changes each feature | Process | Changes | Key numbers | |---|---|---| | **FDM** | Anisotropic strain (§5); stair-step on slopes (ratchet feel across the steps) [KLA]; walls come in whole perimeters [S74]; bridges sag; creep in PLA (u) | Clearance 0.5 mm for snaps [HUBS-SF]; print-in-place 0.2–0.4 mm XY [PIP]; overhang about 45°, bridges under 5 mm sag least [HUBS-FDM] | | **SLS / MJF** | Near-isotropic strength with lower Z strain [HP]; no supports; powder must escape; PA12 picks up moisture | Clearance 0.3 mm; MJF root ≥ 1 mm [HUBS-SF] | | **SLA** | Choose a tough or durable resin, because standard resins are brittle [HUBS-SF]; post-cure changes the properties | Tough 2000 is not for living hinges [FL-T2000] | | **Injection moulding** | Isotropic but with weld lines [DUP]; undercuts need side actions or slots [DUP]; draft; fillet t/2 [DUP]; flex the hinge warm off the press [PL-LH]; the annular undercut must survive ejection [BAY] | Allowables in §3; draft 0.5° on vertical faces, 2° in most cases, 3° minimum with light texture and 5° or more with heavier texture (PM-T2), 3° minimum on shut-offs [PL-IM] | | **Laser-cut sheet / plastic** | Planar flexures (LET, kerf-pattern hinges) [LET][LH-INK] | Hole ≥ T; edge distance 1.574 mm for T ≤ 0.914 mm, else 3.175 mm [PL-SM] | | **Bent sheet metal** | Spring temper vs formability; relief and edge distances | Flange ≥ 4T; features within about 4T of a bend distort; hem ID ≥ T with a 6T return [PL-SM]; hole-to-bend ≥ 2T + R [BD-CHK] | ## 8. Failure modes that become pitfall-catalogue rows (#97) | Failure | Deterministic check candidate | |---|---| | Strain at the root fillet over the allowable | Calculator: ε(y, l, h, taper) ≤ derated ε_allow(material, process, orientation, cycles); flag a fillet under max(0.38 mm, 0.5·h) [BAY][HUBS-SF] | | Snap beam bending across layer lines | Geometry: the beam's long axis or bending-plane normal against the print-rotation Z; fail when the bending strain direction has a Z component above a threshold [KLA] | | Permanently loaded snap or spring tab (creep) | Assembly state: residual deflection after seating > 0 means "sustained", which needs PETG/ASA/PA or metal, and a stress-relaxation note (u) | | Undercut that cannot be moulded or printed | Moulding: undercut faces against the pull direction (cf. the dfm-agent approach [DFMAG]). FDM: the hook overhang angle in print orientation | | Print-in-place gap too small, or merged by the slicer | Minimum distance between solids of one part ≥ pip_clearance [B123]; Z gaps an integer number of layers [PIP] | | Living hinge in a material or process that cannot take ε = tθ/2L | Calculator plus a material whitelist (PP/PE moulded; TPU or PP printed) [PL-LH] | | Friction assumption (μ) unstated | Lint: every W calculation names its μ source row (§4) | ## 9. Open-source calculators and libraries | Project | Licence | Activity | What it implements | Use | |---|---|---|---|---| | [BelfrySCAD/BOSL2](https://github.com/BelfrySCAD/BOSL2) | BSD-2-Clause | push 2026-10-30, 2441★ | `snap_pin`/`snap_pin_socket`, `rabbit_clip`, `half_joiner`, `dovetail`, `living_hinge_mask` (layer-height aware), `knuckle_hinge`, `snap_lock`/`snap_socket`, `apply_folding_hinges_and_snaps` | Geometry ideas; port shapes to CadQuery (OpenSCAD runtime not needed) | | [dwragon/Fusion360SnapFitGenerator](https://github.com/dwragon/Fusion360SnapFitGenerator) | MPL-2.0 (LICENSE file; GitHub shows NOASSERTION) | created 2026-10-24, v1.1.0, 18 commits | Fusion add-in for FDM enclosures: cantilever, overlay, U-shaped, torsion and annular snaps; material presets (thickness, engagement, clearance, allowable strain, E); detachable 60° vs permanent 90° return angle | Best reference for parameter UX; MPL is file-level copyleft, so reimplement rather than copy | | [Mechanical-Python/SnapFit_Calculator](https://github.com/Mechanical-Python/SnapFit_Calculator) | LGPL-2.1 | last push 2022-03-16 | Cantilever, annular and torsion calculator; ships .exe/.7z binaries | Skip (stale, binaries) | | [n3r/AgentCAD](https://github.com/n3r/AgentCAD) `skills/snap-fits` | Apache-2.0 | push 2026-08-26 | Skill, `material_strain.json`, `cantilever_lid.py` snippet | Data format idea; values need checking (§3) | | [static74/3dp-compliant-mechanisms](https://github.com/static74/3dp-compliant-mechanisms) | MIT | created 2026-10-26, 0★ | Skill with tagged allowables, clearances and 3 evals; FDM only | See agent-toolkits note | | [aatmdelissen/pyMOTO](https://github.com/aatmdelissen/pyMOTO) | MIT | (simulation-tools.md) | `ex_compliant_mechanism*.py` topology-optimisation examples | Adopt for compliant topology optimisation (already the recommended TO engine) | | [ninja7v/TopoptComec](https://github.com/ninja7v/TopoptComec) | MIT | push 2026-10-31, 18★ | 2D/3D topology optimisation of compliant mechanisms, GUI + CLI | Watch | | [GazzolaLab/PyElastica](https://github.com/GazzolaLab/PyElastica) | MIT | push 2026-10-25, 363★ | Cosserat-rod large-deflection beams | Optional fast large-deflection check of slender arms | | [artofscience/flexures](https://github.com/artofscience/flexures) | GPL-3.0 | 2023 | MATLAB/COMSOL/STL flexure material | Reference only | | BYU CMR software page [BYU] | no licence stated | — | MATLAB/XLS large-deflection beam scripts for the *Handbook* examples | Equations only; ask before copying | | [CameronBrooks11/snapfit-scad](https://github.com/CameronBrooks11/snapfit-scad) (MIT), [nohkumado/openscad_snapfit](https://github.com/nohkumado/openscad_snapfit) (GPL-3.0), [jmj3d/snapmates](https://github.com/jmj3d/snapmates) (CERN-OHL-W) | as listed | small | Parametric snap geometry, no strain maths | Skip | | Laser living hinges: [buxtronix/living-hinge](https://github.com/buxtronix/living-hinge) (GPL-3.0), [Gernreich/living-hinge](https://github.com/Gernreich/living-hinge) (CC0) [LH-INK] | as listed | 2024 / 2026-10 | Kerf-pattern SVG generators | CC0 one is freely reusable | | [skyneticist/flexure-hinge-calculator](https://github.com/skyneticist/flexure-hinge-calculator) | MIT | 1★ | HTML/JS hinge thickness and length | Skip | **No maintained Python or JS library** implements the Bayer/BASF/DuPont snap-fit calculations, PRBM flexures or Qiu bistable beams with tests. cad-agent #95 has to build this; it is small (§2 equations plus tables), and the §2 gold cases are its tests. ## 10. References - **[COV]** Covestro LLC, *Snap-Fit Joints for Plastics – A Design Guide* (the Covestro edition of [BAY]); a copy supplied by the project owner, read for the 1.09 and 0.55 factors and Example II; not redistributed. - **[BAY]** Bayer MaterialScience, *Snap-Fit Joints for Plastics – A Design Guide*: https://cdn.sparkfun.com/assets/home_page_posts/1/4/1/0/Plastic_Snap_fit_design.pdf (read); mirror: https://fab.cba.mit.edu/classes/S62.12/people/vernelle.noel/Plastic_Snap_fit_design.pdf - **[DUP]** DuPont, *General Design Principles – Module I*: https://www.emcoplastics.com/assets/pdf/acetal/General%20Design%20Principles%20for%20Engineering%20Polymers.pdf (read) - **[BASF]** https://ulprospector.ul.com/1248/snapfit-3/ (read; points to manual pp. IV-3…IV-5 and V-1…V-4) - **[CEL]** https://www.docketalarm.com/cases/PTAB/IPR2017-01990/Inter_Partes_Review_of_U.S._Pat._6631715/12-12-2017-Patent_Owner/Exhibit-2002-18-Exhibit_2002_Snap_Fits_Celanese/ (s) - **[KLA]** Klahn, Singer, Meboldt, Procedia CIRP 50 (2016) 264–269: https://publikationen.bibliothek.kit.edu/1000142464 (read) - **[SCH]** https://www.doi.org/10.1007/978-3-030-90700-6_31 (s) - **[HUBS-SF]** https://www.hubs.com/knowledge-base/how-design-snap-fit-joints-3d-printing/ - **[HUBS-FDM]** https://www.hubs.com/knowledge-base/how-design-parts-fdm-3d-printing/ - **[ALL]** Allum et al., *Addit. Manuf.* 34 (2020) 101297: https://hull-repository.worktribe.com/output/4511720/interlayer-bonding-has-bulk-material-strength-in-extrusion-additive-manufacturing-new-understanding-of-anisotropy (abstract) - **Bambu TDS mirrors** - [BBL-PLA] https://www.additive-x.com/shop/mpattachments/file/viewonline/id/494/product_id/2236 - [BBL-PLAM] …/id/513/product_id/2261 - [BBL-PETG] …/id/580/product_id/2330 - [BBL-PETGCF] …/id/596/product_id/2346 - [BBL-ASA] …/id/612/product_id/2399 - [BBL-TPU] …/id/823/product_id/2584 - [BBL-PETGHF] https://botland.com.pl/img/art/inne/25540_karta_produktu.pdf - [BBL-PA6CF] https://polyalkemi.no/wp-content/uploads/2024/01/Bambu_PA6-CF_Technical_Data_Sheet-v2.pdf (404 on 2026-10-31) - **Polymaker TDS** (wiki; append `.md` for the text) - [PM-PLA] https://wiki.polymaker.com/polymaker-products/more-about-our-products/documents/technical-data-sheets/pla/polylite-tm-pla - [PM-PETG] …/petg-pet/polylite-tm-petg - [PM-ASA] …/abs-asa/polylite-tm-asa - [PM-COPA] …/nylon/polymide-tm-copa - [PM-TPU] …/tpu/polyflex-tm-tpu95 - [PM-PA6CF] https://cdn.shopify.com/s/files/1/0548/7299/7945/files/TDS_FIBERON_PA6-CF20_V1.1_EN.pdf - **[HP]** HP white paper, Jet Fusion 5200 mechanical properties: https://info.sculpteo.com/hubfs/Material%20documentation/PA11%20HP/TDS%20HP%20pa12%20pa12gb%20pa11%20pp%20(1).pdf (read) - **[FL-T1500]** https://formlabs.com/global/support/Using-Tough-1500-Resin/ (s) - **[FL-T2000]** https://formlabs.com/blog/tough-2000-questions/ (s) - **[PL-LH]** https://www.protolabs.com/resources/blog/living-hinge-basics-for-injection-molding/ (read) - **[PT-LH]** https://www.plasticstoday.com/plastics-processing/can-this-part-be-saved-part-3-living-hinges (s) - **[PL-CR]** https://www.protolabs.com/resources/design-tips/adding-crush-ribs-to-molded-parts/ (s) - **[RD-CR]** https://www.rapiddirect.com/blog/crush-ribs/ (s) - **[PL-SM]** https://www.protolabs.com/services/sheet-metal-fabrication/design-guidelines/ (read) - **[PL-IM]** https://www.protolabs.com/services/injection-molding/plastic-injection-molding/design-guidelines/ (read) - **[BD-CHK]** https://www.dfma.com/resources/pdf/dfm-design-review-checklist.pdf (read) - **[ULB]** https://www.ulbrich.com/blog/301-stainless-steel-strip-for-spring-applications/ (s) - **[PRB]** https://mecheng.iisc.ac.in/suresh/me254/Lectures/PRB.pdf (read: γ = 0.85, Howell & Midha 1995) - **[CHEN-PRB]** https://web.xidian.edu.cn/gmchen/files/20110919_163448.pdf (s: K_Θ = 2.65, c_θ = 1.24) - **[QIU]** Qiu, MIT thesis, eqs. 2.10 and 2.47–2.48: https://pergatory.mit.edu/research/jqiu/thesisscreen.pdf (read); JMEMS 13(2) 2004: https://ieeexplore.ieee.org/document/1284352 - **[LET]** https://scholarsarchive.byu.edu/facpub/1560; patent https://patents.google.com/patent/US9157497 - **[CAFP]** https://scholarsarchive.byu.edu/facpub/6578 - **[HAR]** Haringx 1949: https://www.doi.org/10.1007/BF02120338 (abstract) - **[PW]** Paros & Weisbord, *Machine Design* 37(27) 1965, cited in https://pmc.ncbi.nlm.nih.gov/articles/PMC10358504 - **[LOB]** Lobontiu, *Compliant Mechanisms: Design of Flexure Hinges*, CRC 2002 (u) - **[HOW]** Howell, *Compliant Mechanisms*, Wiley 2001; Howell, Magleby, Olsen, *Handbook of Compliant Mechanisms*, Wiley 2013 (u: not opened) - **[SMITH]** Smith, *Flexures: Elements of Elastic Mechanisms*, CRC 2000 (u: not opened) - **[FACT]** Hopkins, MIT thesis 2007: https://dspace.mit.edu/handle/1721.1/39879; summary: https://en.wikipedia.org/wiki/Freedom_and_constraint_topologies; UCLA BLOT optimiser: https://techtransfer.universityofcalifornia.edu/NCD/29415.html (no FACT software package found) - **[BYU]** https://compliantmechanisms.byu.edu/ (maker resources, books, videos); MATLAB scripts: https://compliantmechanisms.byu.edu/software-analysis - **[PIP]** https://forum.prusa3d.com/forum/prusa-core-one-hardware-firmware-and-software-help/what-are-the-minimum-reliable-printing-distances; https://fab.cba.mit.edu/classes/863.24/people/HayashiAni/2024/09/27/3d-prints.html (s) - **[PIP-PS]** https://forum.prusa3d.com/forum/prusaslicer/prusa-slicer-merging-my-print-in-place-bodies (s) - **[F360SF]** https://github.com/dwragon/Fusion360SnapFitGenerator (README read) - **[S74]** https://github.com/static74/3dp-compliant-mechanisms (`skill/references/fundamentals.md` read) - **[AGCAD]** https://github.com/n3r/AgentCAD/blob/HEAD/agentcad/skills/snap-fits/tables/material_strain.json (read) - **[B123]** https://github.com/KD5RYN/b123d-print/blob/HEAD/docs/using/checks.md (read) - **[BOSL2]** https://github.com/BelfrySCAD/BOSL2 (`joiners.scad`, `hinges.scad` read) - **[DFMAG]** https://github.com/Vivek-Boora/dfm-agent (README read; no licence) - **[LH-INK]** https://github.com/buxtronix/living-hinge; https://github.com/Gernreich/living-hinge **Could not verify:** - Bayer Table 1 constants 0.67 and 0.86 (image). - BASF and Celanese strain tables. - The older Bayer ABS/PA rows. - Paros–Weisbord constant. - CAFP 8EI/L. - LET equations (PDF bot-blocked). - Formlabs XY/Z data. - Associated Spring flat-spring stress limits. - Printed-snap creep (no study found). - FDM living-hinge cycle life. --- Source: https://cad-agent.valpatel.com/research/design-workflows.md # Design workflows for CAD agents: what works, with evidence (verified 2026-10-27) Scope: how the best agentic CAD systems, professional mechanical-design practice and model-integrity verification can be turned into a process that a CAD agent executes. [`landscape.md`](https://cad-agent.valpatel.com/research/landscape.md) covers tool *features*; this survey covers *workflow and method*. The plan that applies it is [`docs/design-process-plan.md`](https://cad-agent.valpatel.com/docs/design-process-plan.md). Method: papers were read on arXiv (abs and HTML, version and date noted); repositories through the GitHub API and raw files; vendored upstreams (`vendor/`) from their pinned source. **(V)** = verified from the primary source; **(u)** = README, vendor page or third-party claim not checked further. Licences are noted before any idea or code is borrowed (§7). Machine-readable copy: [`design-workflows.json`](https://github.com/Valpatel/cad-agent/blob/dev/research/design-workflows.json). Motivating incident, stated generically: a turret assembly in a robot project rendered its ammunition outside the hopper that should hold it, with subassemblies that read as boxes stuck on the side. Every per-part check passed. §6 says which practices would have caught it. ## 1. Summary: the practices that have evidence | # | Practice | Evidence grade | Source | |---|---|---|---| | 1 | **Kernel checks and a hard validity gate before any render** (invalid solid = fail, score 0), with the judge reading measurements before images | strong: the largest gains in every ablation that separates them | CADSmith Table I (median IoU 0.81→0.96 with the judge given kernel metrics and no render; the render adds 0.96→0.963); CADGenBench scoring; Embodied CAD; CAD-Coder RL reward (§2.4) | | 2 | **Decide interfaces, joints and connectors before geometry** (assembly-level decomposition) | strong for assemblies: the largest single ablation effect found | ArtiCAD (late assembly prediction: motion 3.82→3.16, success −11 pt); AssemCAD typed spec, text-to-CAD setting: assembly preservation 87.5 % vs 66.7 % for the best code-centric baseline (§2.4) | | 3 | **Containment and interpenetration as first-class relations** (`apart / touching / containing / interpenetrating`), not only overlap volume | practice, no ablation; it is exactly the incident's missing check | build123d-mcp `clearance`; AssemCAD port checks via `BRepClass3d_SolidClassifier` (§2.2, §4.2) | | 4 | **Author-declared structure expectations** (expected solid count, parts allowed to float, named intended fits) diffed against the built geometry | practice; vendored, Apache-2.0 | agentcad `expect_solids` / `floating`; text-to-cad "intended fits must be named" (§2.2, §4.6) | | 5 | **Spec-driven conformance with evidence tiers** (measured / structural / recognised / unverified; a spec that verifies nothing never conforms) | practice; vendored, Apache-2.0 | build123d-mcp `verify_spec` (§2.2) | | 6 | **Visual review as diagnosis, not proof**: few views chosen for the question, specific yes/no questions, "unclear" allowed, every visual concern converted to a deterministic check | moderate: +18 % point-cloud distance in CADCodeVerify, removes catastrophic outliers in CADSmith, no gain in median accuracy; documented failure modes on gaps and hidden interiors | CADCodeVerify Tables; CADSmith; CADReview; text-to-cad snapshot policy; MAC judge prompt (§2.5, §5) | | 7 | **A judge that did not write the code, given measurements first and images second, with anti-hallucination rules** (accept/halt need a hard data point; hedged language is not evidence; no image ⇒ `unverified`) | practice; MIT | MAC `qa_judge.md`; CADSmith's stronger-model validator (§2.1) | | 8 | **Interface control documents and requirement traces** (requirement → feature → verification method) | professional standard; automatable as a lint | NASA SE Handbook, INCOSE, 29148 (§3.1–§3.2) | | 9 | **Decision records with alternatives rejected**, written with the design | professional standard (ADR/MADR, QOC); evidence on use is thin but the artefact is cheap | §3.4 | | 10 | **DFMEA rows and the DFA part-count questions** as the review checklist for each part | professional standard | AIAG-VDA, Boothroyd-Dewhurst (§3.5–§3.6) | | 11 | **Assembly-sequence and tool-access checks at the step that installs each part** | practice; already partly in cad-agent (lesson 04) | §3.9 | | 12 | **Sign-off invalidated by a geometry hash** (review bound to the bytes it reviewed) | practice; cad-agent already does it for PCB evidence | `cadagent.evidence`, text-to-cad `document_hash` (§2.2) | ## 2. Agentic and AI CAD systems: workflow and method ### 2.1 Pan-Chera/Multi-Agent-CAD (MAC): the judge agent - [github.com/Pan-Chera/Multi-Agent-CAD](https://github.com/Pan-Chera/Multi-Agent-CAD), **MIT (V, API)**, last push 2026-10-17, 1,055 stars. Vendors text-to-cad's runtime under MIT. - **Pipeline (V, `multi_agent_cad/README.md`, `WORKFLOW.md`, `prompts/qa_judge.md`):** Spec Planner (prompt and reference images → `CADBrief`) → Geometric Architect (`ArchitectPlan`) → a deterministic translator from plan steps to build123d (unsupported steps become `TODO` markers for a repair agent) → execution → two QA engines (STEP topology; STL mesh) → **QA Judge** → Aider-based repair. Outer loop of 5 retries; the judge engages only after one blind repair; inner loop of 3 for execution failures. - **What the judge sees (V):** the user request as ground truth, the planner's `special_features`, per-feature bounding boxes measured *before* booleans (white-box instrumentation), the QA engines' error list, the retry count, and, only with `JUDGE_MULTIMODAL`, four 512×512 isometric renders covering all octants. The prompt says: *"You never see the raw 3D mesh, STEP file, or Python source"* and *"When view evidence conflicts with feature_measurements, trust the measurements."* - **Decision schema (V):** `{action: accept|repair|halt, reason, confidence, evidence[], disputed_errors[], semantic_verification: verified|failed|unverified, modification_suggestions}`. Accept or halt requires at least one hard data point in `evidence`, otherwise the pipeline downgrades to repair; hedged words are not evidence; without images `semantic_verification` must be `unverified`, and lack of vision cannot trigger a repair. - **Own evaluation (V, `docs/quantified_quality.md`):** 10 prompts, 141 binary features read off the prompts. A single-agent skill baseline scored 138/141 at 104 M tokens; MAC v1 140/141 at 0.9 M tokens (116× fewer); MAC v2 with visual and geometric judging 140/141 at 1.4 M tokens. The document itself says who judged is unstated, the comparison is "controlled but not isolated", and assembly outputs are curated. **The robust finding is cost, not quality**; 3 vs 1 failures on 141 items is noise. ### 2.2 earthtojake/text-to-cad `cad` skill, build123d-mcp and agentcad (vendored, pinned) - **text-to-cad** ([repo](https://github.com/earthtojake/text-to-cad), **MIT (V, `vendor/text-to-cad/LICENSE`)**, pinned at `2f79365`, imported 2026-10-24; upstream released 0.8.1 on 2026-10-27). Workflow (V, `skills/cad/SKILL.md`, `references/`): a model is a parameterless decorated function; the rebuild is the script run; user-given dimensions are checked by an `assert` in the model or a measurement, *"never read off a picture."* Snapshot policy (V, `snapshot-review.md`): one reviewed snapshot per visible change, views chosen for the feature, *"No fixed set of views proves every face or feature is correct"*, *"Do not loop on snapshots"*, every visual concern becomes a deterministic check (asymmetric holes → measure centres; floating boss → solid count and contact distance; wrong bore → clipped view then measure). Inspection recipes (V, `inspection-and-validation.md`): `overlap_volume` (zero means at most touching; *intended fits must be named*), `closest_points` (does not measure penetration), cheap bounding boxes as a pre-filter, `is_valid`, `self_intersections`, `boundary_edges`; a check that cannot decide raises and *"has shown nothing about the design"*. A scene is bound to a `document_hash`; selector ids are revision-scoped. **No plan-before-build step exists (V)**: the brief says a simple part may need a sentence and a complex assembly a dimension/interface checklist, with no required format. - **build123d-mcp** ([repo](https://github.com/pzfreo/build123d-mcp), **Apache-2.0 (V, LICENSE)**). Its system prompt (V, `default_prompt.md`) orders the loop: `measure` after every `execute` (faces and volume must change as expected after a boolean), `clearance` between mates before any render (`touching` or `apart`, never `interpenetrating`), render only after those pass, `design_audit` (±10 % nudges of every named parameter; `brittle`/`coupling` verdicts) before finishing, `validate` then test-export. Tools (V, `llms.md`): `clearance` returns one of `apart | touching | containing | interpenetrating` with `intersection_volume`, `a_volume_outside_b` and, for `containing`, the worst-direction wall thickness; `verify_spec` (experimental) checks a declared spec with evidence tiers `measured | structural | recognised | unverified`, and *"conforms = no FAILs and ≥1 requirement actually checked"*; `lint_drawing` must return zero violations before a drawing is done. CADGenBench: a build123d-MCP entry leads the leaderboard at 86.9 % (u, via a 2026-10-25 third-party snapshot; the HF Space did not render). - **agentcad** ([repo](https://github.com/jdilla1277/agentcad), **Apache-2.0 (V, LICENSE)**). Validation layers (V, `validation.py`): BRepCheck, shell closure (free edges), mesh manifold, structure, advisory (sliver faces, loose tolerances). Authors declare `expect_solids`, `expect_shells` and `floating: true` per shown object (V, `validation_guidance.py`); a disconnected body that is not declared floating is reported with its nearest part and distance. `edit_risk.py` classifies imported B-reps (face/edge counts, free edges, severe validity errors) before an agent commits to editing them. Shared human/agent review comments live in `.agentcad/reviews/comments.json` with statuses `draft | open | addressed | resolved` (V, `reviews.py`). Its CADGenBench claim (48 % higher score, 2.5× valid outputs with GPT-5 Nano) is a single uncontrolled run by its own README (V, README caveat). ### 2.3 Commercial systems - **Zoo Zookeeper** ([press release 2026-02-05](https://zoo.dev/press/zoo-introduces-zookeeper), V): researches, proposes constraints and parameters and *"generates a clear design plan before producing a CAD model"*; has engine-level tools to inspect, snapshot and debug geometry; output is an inspectable feature tree. No verification method or metrics published. - **Autodesk Assistant (Fusion)**: autodesk.com refused the fetch (403). Trade press (u): assistant GA at AU 2026; an agentic version that can "flag problems, trace knock-on effects" previewed for 2027; Fusion MCP servers released June 2026. No published method. - **Onshape AI Advisor** ([feature page](https://www.onshape.com/en/features/ai-advisor), V): documentation Q&A only; *"does not generate designs, predict errors in real time, or make complex engineering decisions."* - **Leo AI** ([vendor page](https://www.getleo.ai/ai-for-cad), V as a claim, u as fact): finds guidelines and formulas, runs calculations, asks clarifying questions, outputs an editable assembly with a part and feature tree. No accuracy data. ### 2.4 Academic systems with verification or decomposition | System | Source, date, licence | Technique | Measured effect | |---|---|---|---| | **CADCodeVerify** (ICLR'25) | [arXiv 2410.05340](https://arxiv.org/abs/2410.05340) v2 2025-02-28; code repo **no licence file (V)** | compile-repair loop, then the VLM writes 2–5 yes/no questions from the spec and answers them on 4 renders (0/90/180/270°), "Unclear" allowed; only non-yes answers feed back; 2 iterations (no gain beyond) | CADPrompt, GPT-4 few-shot medians: point-cloud distance 0.155→0.127, Hausdorff 0.494→0.419, compile 96.0→96.5 %; CodeLlama compile 67→73.5 %. Ablation on 100 samples: removing the renders 0.126→0.153. A solver with ground-truth access reaches 0.103 (upper bound) | | **CADFusion** (ICML'25) | [arXiv 2501.19054](https://arxiv.org/abs/2501.19054) v3; [microsoft/CADFusion](https://github.com/microsoft/CADFusion) **MIT (V)**, archived | training-time visual feedback: a 7B VLM scores one render 0–10, ~1,500 DPO pairs per round, alternated with sequence learning | Table 1: CD 19.89 vs Text2CAD 30.23; Table 2: visual score 7.69→8.96 but invalidity 4.84→6.20 %; visual feedback alone collapses (invalidity 88.87 %) | | **From Idea to CAD** (Honda RI) | [arXiv 2503.04417](https://arxiv.org/abs/2503.04417) v1 2025-03; no code | requirements engineer / CAD engineer (numbered plan, AST check, exec) / QA agent renders 7 views and lists the 2 most relevant discrepancies | **no numbers**: 5 designs, a qualitative figure; authors note variability and failure on complex parts | | **CADSmith** | [arXiv 2603.26512](https://arxiv.org/abs/2603.26512) 2026-03-27 (V); code licence not stated | planner (JSON plan: components, target bbox, constraints) → coder (RAG over API docs) → sandboxed executor → validator = a stronger model given prompt, code, kernel metrics (volume, bbox, centre of mass, face/edge counts, validity) and 3 renders → refiner; 5 iterations; invalid solid = hard fail | Table I, 100 prompts (IoU and the second CD are medians): zero-shot exec 95 %, IoU 0.8085, mean CD 28.37 / median 0.55; **no-vision** (the LLM judge reads kernel metrics, no render): exec 99 %, IoU 0.9563, mean CD 18.19 / median 0.48; **full** (judge also sees the renders): exec 100 %, IoU 0.9629, mean CD 0.74, **median CD unchanged** (0.48). The render removed catastrophic outliers, not fine error | | **CADDesigner** | [arXiv 2508.01031](https://arxiv.org/abs/2508.01031) v2; licence not stated | ReAct agent; 6-view renders → 0/1 checker drives regeneration; case library | Text2CAD 1k subset: IoU 0.277 / success 100 % vs CADCodeVerify 0.235 / 86.1 %. **No with/without-vision ablation** | | **CAD-Assistant** | [arXiv 2412.13810](https://arxiv.org/abs/2412.13810) v3 2025-08-26; [repo](https://github.com/dimitrismallis/CAD-Assistant) custom licence (NOASSERTION) | VLLM planner emits plan plus Python per step into FreeCAD; observes JSON or renders | SGPBench CQA GPT-4o 0.686/0.782→0.791/0.857 (2D/3D); autoconstrain F1 0.693→0.979; tool-use validity 98.5 %; most residual errors are reasoning or *misreading renders* | | **CAD-Coder** (Doris et al., MIT) | [arXiv 2505.14646](https://arxiv.org/abs/2505.14646); [repo](https://github.com/anniedoris/CAD-Coder) **Apache-2.0 (V)** | fine-tuned VLM image→CadQuery; no loop | 100 % valid syntax; beats GPT-4.5 and Qwen2.5-VL-72B on IoU | | **CAD-Coder** (CoT + geometric reward) | [arXiv 2505.19713](https://arxiv.org/abs/2505.19713) | SFT, CoT cold start, GRPO with a CD-based reward that is 0 for non-executing code | mean CD 6.54 vs Text2CAD 29.29; invalid 1.45 %; w/o CoT 17.34 | | **CADReview / ReCAD** (ACL'25) | [arXiv 2505.22304](https://arxiv.org/abs/2505.22304); [repo](https://github.com/Gary-code/CADReview) **no licence (V)** | trained reviewer: 3 reference views + numbered program + 1 render → feedback generator (DPO) + code editor | error-localisation accuracy GPT-4o 41.5 %→71.8 % (machine-made), 31.8→63.6 % (human-made); CD 4.34→1.43. Accuracy drops on programs with **hidden internal components** | | **ArtiCAD** | [arXiv 2604.10992](https://arxiv.org/abs/2604.10992) v2 2026-04-14 (V); licence not stated | Design agent sets connectors (attachment points, joint parameters) *before* geometry; per-part generation agents; assembly agent; review agent on multi-view renders plus motion keyframes; cross-stage rollback separating code errors from design errors | ArtiCAD-Bench (120 tasks, 1–5): single VLM geo 3.31 / detail 2.82 / motion 3.67 → 3.57 / 3.14 / 3.91. **Ablation: predicting assembly late drops motion 3.82→3.16 and success 100→89.2 %**; w/o rollback 95 %. No ablation removing the review agent | | **AssemCAD** | [arXiv 2607.05123](https://arxiv.org/abs/2607.05123) 2026-07-06 (V) | an axiomatic spec first: typed parts, geometry-backed ports verified by `BRepClass3d_SolidClassifier` point sampling (bore, shaft, flat-face), closed-form mate transforms, mate-aware clash check; then deterministic execution | AssemBench Table 3 (V, HTML), **text-to-CAD setting**: AssemCAD success 89.17 %, assembly preservation (APR) 87.50 %; baselines: Claude-4.8 85.00 % / 0.83 %, GPT-5.5 79.17 % / 66.67 % (the best baseline APR), Qwen3.7-Max 78.33 % / 39.17 %. Image-text setting: AssemCAD 84.17 % / 82.50 %. The paper's Table 4 lists AssemCAD's text APR as 82.50, which disagrees with Table 3 (the paper is inconsistent). The abstract gives no numbers. Appendix H, Proposition 3: Chamfer distance is non-identifiable for assemblies (the page truncated before the proof) | | **Embodied CAD** | [arXiv 2606.31252](https://arxiv.org/abs/2606.31252) 2026-06-30 | step-wise skills; the kernel accepts or rejects each op; GRPO on solver rewards | executable 100 %; exact-policy 93.1→93.2 % only; authors: solver feedback *"necessary but not sufficient"* | | **AADvark** (CAIS'26) | [arXiv 2604.15184](https://arxiv.org/abs/2604.15184) v2 | FreeCAD renders with unique per-face colours and labels; a joint solver as the verification signal | scissors with a revolute joint by iteration 4; 468 LLM calls, 4.1 h, $15.85; qualitative | | **CADGenBench** | [huggingface/cadgenbench](https://github.com/huggingface/cadgenbench) **Apache-2.0 (V)**, data ODC-BY; 81 fixtures | validity gate (watertight manifold, else 0), then 0.4 shape (F1 + IoU) + 0.4 interface (keep-in/keep-out IoU) + 0.2 topology (Betti) | leaderboard (u, third-party snapshot 2026-10-25): build123d-MCP + Opus 5.5 86.9 %, MCP + Opus 5 59.6 %, single-shot baselines 16–36 %, Claude Code + text-to-cad skill 28.0 % vs bare model 27.4 %. Tool-using agents with validity gates dominate; entries are not controlled | | Others (abs only, V) | Text2CAD NeurIPS'24 ([2409.17106](https://arxiv.org/abs/2409.17106), custom licence); CAD-Recode ICCV'25 ([2412.14042](https://arxiv.org/abs/2412.14042), custom); FlexCAD ICLR'25 ([2411.05823](https://arxiv.org/abs/2411.05823), MIT); CAD-Editor ([2502.03997](https://arxiv.org/abs/2502.03997), MIT); CAD-Llama ([2505.04481](https://arxiv.org/abs/2505.04481)); IterCAD ([2606.13368](https://arxiv.org/abs/2606.13368), compiler + runtime + orthographic-render feedback with RL); BenchCAD ([2605.10865](https://arxiv.org/abs/2605.10865), code MIT); survey Zhang et al. ([2505.08137](https://arxiv.org/abs/2505.08137), ACM CSUR 2026) | mostly fine-tuned generators without inference loops | no verification-loop ablations | ### 2.5 What the evidence says - **Kernel feedback is the most reliable signal.** CADSmith's no-vision configuration (an LLM judge reading kernel metrics and validity, no render) gives most of the total gain (median IoU 0.81→0.96); CADCodeVerify's compile loop; Embodied CAD and AssemCAD get 100 % / 89 % executability by gating every op on the kernel; CAD-Coder's zero reward for non-executing code cut invalidity to 1.45 %. CADGenBench's hard validity gate is why tool-using entries dominate. Caveat (Embodied CAD): solver acceptance does not prove intent. - **Assembly-level decomposition (interfaces first) has the largest measured effect.** ArtiCAD's "late assembly" ablation and AssemCAD's typed spec (text-to-CAD APR 87.5 % vs 66.7 % for the best baseline; one baseline, Claude-4.8, scores 0.83 % APR at 85 % success, which shows how little a high success rate says about assembly structure). For single parts, planners appear in CADSmith, Idea-to-CAD, MAC and Zookeeper but **no paper ablates the planner alone**; MAC's 99.3 % vs 97.9 % is within noise. - **Render plus VLM self-critique helps modestly and mainly catches gross errors.** CADCodeVerify −18 % distance and +21 % without images; CADSmith's judge moved the mean, not the median; CADFusion's visual preference raised the score but also the invalidity rate; ArtiCAD, CADDesigner and Idea-to-CAD never ablate the reviewer. The survey (2505.08137 §7) concludes LLMs *"can generally determine whether the design is satisfactory, but they often lack the necessary information to understand how it should be improved."* - **Documented visual-review failure modes.** CADCodeVerify's VQA answers are only 64.6–68.2 % correct with 19–27 % "Unclear"; its metrics miss *"small gaps between a desk's legs and top"*. CADSmith passed a quadcopter with arm-hub gaps on the first try (fixed 3 views, render scale). CADReview drops on **hidden internal components**. BenchCAD: a target render *replacing* text scores near zero (renders carry no numbers); adding one to text barely helps and hurts the strongest thinking model. CADFusion uses one view because *"LVMs perform worse with multiple images."* [2607.05573](https://arxiv.org/abs/2607.05573): a VLM critic diverges most on rotationally symmetric parts (u, abs). CAD-Assistant: most failures were reasoning or *"misreading tool-generated renderings."* Both MAC's judge prompt and text-to-cad's policy encode the same lesson: renders are for relative shape; dimensions, interference and containment come from measurements. ## 3. Professional mechanical design practice an agent can execute For each practice: the canonical reference, the artefact, what an agent can produce or verify from a parametric model plus a YAML dossier, and the honest limit. NPR 7123.1D was read from the published PDF. Paywalled standards are cited, not read. Access failures: DTIC (MIL-STD-1472 tables), ANSI previews, ecss.nl (ESA outage), PTC and FreeCAD wiki pages; values from those are (u). | § | Practice | Canonical reference | Artefact | Agent produces / verifies | Not automatable | |---|---|---|---|---|---| | 3.1 | Top-down, skeleton and interface control documents | NASA SE Handbook SP-2016-6105 Rev 2 App. L, [IRD outline](https://www.nasa.gov/reference/appendix-l-interface-requirements-document-outline/) (V): interface description, responsibilities, coordinate systems, units and tolerances, mass, structural/mechanical (attachment, stiffness, envelope), fluid, power, signal, data, environments; ECSS-E-ST-10-24C ICD DRD (V listing); Onshape *modelling in context*: contexts are snapshots, never auto-updated (V); PTC skeleton models (V, Toolkit docs) | a skeleton part (datums, axes, envelopes, layout dimensions) and one ICD row per interface pair: id, parties, owner, frame, units, pattern, envelope, loads, change authority | every ICD row has a named entity in the skeleton; child parts reference the skeleton, never each other; the mating envelope lies inside the ICD envelope; "ICDs ready to baseline" is a literal PDR entrance item (NPR 7123.1D G-6 6.m, V) | what counts as an interface and who owns it | | 3.2 | Requirements traceability | NASA SE Handbook §5.3 [verification](https://www.nasa.gov/reference/5-3-product-verification/) (V): methods analysis, demonstration, inspection, test; a matrix with bidirectional trace, method, pass/fail and the *versions* verified; NPR 7123.1D PDR criterion 2 (V); ISO/IEC/IEEE 29148:2018 characteristics (u, paywalled) | the verification matrix: `id, text, parent, rationale, method ∈ {I,A,D,T}, success criterion, feature, evidence, status, version verified` | unique ids; every requirement has a parent or is marked derived; every leaf has a method and evidence; every analysis/inspection requirement binds to an executable check; suspect links when parent text changes (Doorstop's fingerprint, V); coverage | whether a requirement is correct or necessary; the method choice | | 3.3 | Design reviews (PDR/CDR) | NPR 7123.1D (2023) App. G Tables G-6, G-7 (V, read from the PDF): PDR entrance includes a preliminary drawing tree, ICDs ready to baseline, single-point-failure list; success includes complete traceable flow-down, margins, manufacturability, FMEA maturity; CDR: technical data package with ICDs, analyses, material tests, manufacturability; ECSS-M-ST-10C / 10-01C (cited) | the review package and checklist with per-criterion status; a RID/RFA log with disposition and closure | a gate script: drawing tree nodes resolve to files; ICD count equals interface count at status ≥ ready; every TBD has an owner and date; margins numeric; FMEA has a row per function; all prior RIDs closed | risk acceptance, margin adequacy, the board | | 3.4 | Design rationale | Nygard ADR 2011 (V): context, decision, status, consequences, never renumber, superseded kept; [MADR](https://github.com/adr/madr) (V, MIT or CC0): decision drivers, considered options, outcome, **confirmation**, pros and cons; IBIS (Kunz & Rittel 1970), QOC (MacLean et al. 1991); evidence: Burge 2008 (V abstract) says most rationale systems had little or no empirical evaluation; the AI EDAM special issue reports consensus on value and equal concern about capture cost | a decision record per decision with ≥ 2 options and a confirmation naming the check that proves it still holds | lint: status, date, ≥ 2 options, outcome, successor for superseded, confirmation resolves to a passing check; orphan-parameter report (named dimensions no decision or requirement mentions) | which decisions deserve a record; honest context | | 3.5 | DFMEA | AIAG-VDA FMEA Handbook 2019 seven steps (V via secondary): planning, structure, function, failure, risk, optimisation, documentation; Action Priority replaces RPN; SAE J1739_202101 (V listing). The 1000-cell AP table is copyrighted; open implementations reconstruct the band structure (V, Schematex docs) | one row per focus element: function, failure effect / mode / cause, S, prevention control, O, detection control, D, AP, action, owner, status | structure tree from the assembly tree; function rows seeded from the trace; completeness (every element a function, every function a mode, S/O/D 1–10, AP from a versioned table); geometric prevention controls ("clearance", "captive", "keyed") resolve to CAD checks | realistic modes and causes; ratings | | 3.6 | DFM/DFA (Boothroyd-Dewhurst) | Boothroyd, Dewhurst, Knight 2011 (u); the three criteria for a theoretically necessary part (V via two secondaries): relative motion, different material for a fundamental reason, separate for assembly or service; DFA index = N_min × 2.93 s / T_total (V secondary); handling and insertion penalty tables are proprietary | the DFA worksheet: part, qty, handling and insertion codes and times, necessary (criterion), notes; N_min, T, index | part and fastener counts; symmetry classes from principal inertia; insertion directions (fraction from above); lead-ins on mating cylinders; criterion 1 from mate DOF, 2 from material, 3 flagged for a human; **no open-source Boothroyd implementation exists (V, negative search)**, so a simplified declared table is needed | criterion 3 and real times | | 3.7 | Tolerance stack-ups | PTC EZ Tolerance summary (V): worst case all contributors at limits; RSS statistical; ASME Y14.5-2018 (R2024) (V listing); ISO 2768-1 class m: ±0.1 (0.5–6), ±0.2 (6–30), ±0.3 (30–120), ±0.5 (120–400) (V secondary); FDM accuracy: Hubs desktop FDM ±0.5 % with a ±0.5 mm floor, industrial ±0.15 % / ±0.2 mm (V); Prusa FAQ 0.1 mm Z, 0.3 mm XY (V) | the stack table per loop: dimension, nominal, ± tolerance, sensitivity, source, contribution; worst-case and RSS results against the requirement | build the loop along a named direction from the mate graph; nominals from the model; tolerances from the dossier, else a general class, else the process table; WC and RSS; flag loops that pass RSS but fail WC; **no open-source stack-up tool found (V)** | datums and loop choice; capability data | | 3.8 | Drawings and GD&T | ASME Y14.5-2018, Y14.100-2017, Y14.1-2020 (V listings); ISO 1101, ISO 7200 (cited); open tools: FreeCAD TechDraw (LGPL, limited GD&T, u), [draftwright](https://github.com/pzfreo/draftwright) (**AGPL-3.0**, V: auto views and sections, ISO 7200 title block, `lint()`), build123d drafting helpers (Apache-2.0), text-to-cad `engineering-drawing` (MIT); build123d-mcp's rule "a drawing is done when `lint_drawing` returns zero violations" (V) | views and sections, title block from the dossier, datums, FCFs on functional features, critical dimensions, revision block | title block from the dossier (rev = tag); every critical dimension appears; every FCF references a declared datum; drawing revision equals model revision; lint zero | datum scheme and which dimensions are critical | | 3.9 | Assembly access and serviceability | MIL-STD-1472 access-opening tables and MIL-HDBK-470A §2.4, §2.11 (V listings; tables **not read**, DTIC 403); ISO 15534-2 / EN 547-2 openings sized for the 95th percentile, reach for the 5th (V listing); ISO 2936 hex-key dimensions (paywalled); Unbrako Engineering Guide counterbore and clearance table: M3 Ø6.5, M4 Ø8.25, M5 Ø9.75, M6 Ø11.25 (V) | the serviceability matrix: item, task, opening, body part, tool, sweep ok, swing available, fastener visible, removal order, captive | the strongest area: sweep a modelled tool along the fastener axis and through its swing arc; line of sight from the opening; opening size against the body-part table; removal-order graph from the contact graph; lesson 04 already does the driver sweep | which tasks are service tasks; posture and strength | | 3.10 | Configuration management | SAE/ANSI EIA-649C (V listing); five functions (V, NDIA slides): planning, identification, change management, status accounting, verification and audit; functional / allocated / product baselines | configuration index (CI, part number, revision, baseline, change id, approver), change log, as-built audit | baseline = annotated tag; revision string stamped in every artefact (cad-agent does this); PR template lists affected items; CI re-exports from the tag and diffs hashes; LFS for binaries with locks (u) | what is a CI; the change board | | 3.11 | Part numbers, BOM, assembly tree, mates | ASME Y14.34-2013 associated and indentured lists (V listing); Onshape mates: fastened 0 DOF, slider 1 translation, revolute 1 rotation, planar, cylindrical, pin slot, ball, parallel, tangent, width (V) | indented BOM: level, item, part number, revision, description, qty, material, make/buy, vendor PN, mass, parent; assembly tree; mate list with DOF | BOM ↔ bodies bijective; qty = instance count; mass roll-up against budget; every bought part has a vendor PN and a STEP matching the fitted geometry (the McMaster skill); every instance fully constrained unless declared a mechanism with the declared joint type | numbering policy, make/buy | ## 4. Model-integrity verification: algorithms, APIs, licences, performance ### 4.1 Contact graphs and interference - **Commercial reference behaviour (V, vendor help pages).** SolidWorks Interference Detection reports a B-rep interference *volume* per pair and has *Treat coincidence as interference* (touching faces reported), *Create fasteners folder* (thread overlaps segregated) and *Include multibody part interferences*; the help warns that faceted curved faces can touch falsely. Onshape's tool reports the interfering region's bounding box, not a volume, and excludes standard content (fasteners) by default. Fusion's `Design.analyzeInterference()` returns interference bodies with volume and can include coincident faces (zero-volume hits). The Fusion 360 Gallery assembly dataset defines a *contact* as two B-rep faces coincident or within 0.1 mm (V, `docs/assembly.md`). - **Liaison graphs.** Bourjault (1984) and De Fazio & Whitney, *Simplified generation of all mechanical assembly sequences*, IEEE J. Robotics & Automation 3(6):640–658, 1987 (V bibliographic; the IEEE page did not serve the abstract): nodes are parts, edges are mating contacts; two precedence questions per liaison give the feasible assembly sequences (u for the question count). This is the graph the connectivity gate builds. - **OCCT primitives** ([OCCT](https://github.com/Open-Cascade-SAS/OCCT), **LGPL-2.1 with the OCCT exception (V)**; CadQuery and build123d use it through OCP): `BRepExtrema_DistShapeShape(a, b)` → `Value()`, witness points and support shapes, `InnerSolution()` true when one shape is a solid and the other lies wholly or partly inside it, `SetMultiThread(true)` (V, refman); `BRepAlgoAPI_Common` plus `BRepGProp::VolumeProperties` for exact overlap volume; `BRepAlgoAPI_Section` for touching faces with zero common volume (u, standard usage); `BOPAlgo_CheckerSI` for self-interference of one compound with `SetLevelOfCheck(0–9)` (V); `BRepClass3d_SolidClassifier.Perform(p, tol).State()` → IN/OUT/ON (V); `BRepCheck_Analyzer` for validity. Distance 0 cannot distinguish touching from overlapping: combine with Common. - **Mesh-level**: trimesh `CollisionManager` (MIT, V `collision.py`) wraps python-fcl (BSD, V PyPI; FCL 0.7 with `DynamicAABBTreeCollisionManager` broad phase, `continuousCollide` giving a time of contact); manifold3d (Apache-2.0, V) for fast robust mesh booleans that error on non-manifold input. - **Measured here (throwaway experiment, 2026-10-27, CadQuery/OCP on a loaded workstation):** 100 synthetic solids (boxes, cylinders, spheres): AABB broad phase over 4,950 pairs → 100 candidates in 3 ms; `DistShapeShape` on the candidates 9.9 ms per pair; exact Common volume 3.4 ms per pair; `SolidClassifier` 24 points in 7 ms; contact graph and components trivial; **1.35 s total**. Real parts with hundreds of faces cost 10–100× more per pair, which keeps a 100-part assembly within minutes cold (an estimate, not measured: `DistShapeShape` on freeform or heavily filleted faces and `Common` on shelled parts can take seconds per pair); a cache keyed by content hashes of the two shapes makes a rebuild that changes one part re-query only its pairs. Script: [`bench/gate_timing.py`](https://github.com/Valpatel/cad-agent/blob/dev/research/bench/gate_timing.py). ### 4.2 Containment No published "components must lie inside their cavity" validator was found (gap); the primitives are all there: 1. **Exact volume test on the B-rep:** `vol(A ∩ cavity) == vol(A)` within tolerance ⇒ inside; `0 < vol < vol(A)` ⇒ straddling the wall; `0` with positive distance ⇒ outside. build123d-mcp's `clearance` returns exactly this as `containing | interpenetrating | apart | touching` with `a_volume_outside_b` and, for containing, the worst-direction wall thickness (V, `llms.md`). The cavity must be a solid: register it from the build, or derive it (hull minus part) and say so. 2. **Point sampling** with `BRepClass3d_SolidClassifier` on the item's vertices and centre: cheap, misses thin protrusions between samples; `DistShapeShape.InnerSolution()` is a one-bit hint. AssemCAD verifies ports this way (V). 3. **Meshes:** `trimesh.Trimesh.contains(points)` casts rays in a direction and its negative with parity, accepts only when both agree, retries disagreements once at random, raises on non-watertight meshes (V, source). ### 4.3 Mates and joints - **Vocabularies (V):** Onshape mates (fastened, revolute, slider, planar, cylindrical, pin slot, ball, parallel, tangent, width; limits on the moving ones). build123d joints `RigidJoint`, `RevoluteJoint(axis, range)`, `LinearJoint`, `CylindricalJoint`, `BallJoint` with `connect_to()`; values outside range raise; no solver (joints are explicit transforms), so consistency means a tree rooted at a fixed part where every `connect_to` succeeded. CadQuery assembly constraints (`Plane, Point, Axis, PointInPlane, PointOnLine, Fixed, FixedPoint, FixedAxis, FixedRotation`) are solved by CasADi/IPOPT as squared residuals (V, `solver.py`); a non-zero residual after solving is an inconsistent or over-constrained mate. - **JoinABLe / Fusion 360 Gallery assembly-joint** (Willis et al., CVPR 2022; [repo](https://github.com/AutodeskAILab/JoinABLe)): code MIT, **dataset "non-commercial research purposes only" (V, LICENSE.md)**. A joint is two occurrences, the B-rep entity pair that defines the axis, offset, angle, flip, and `joint_type ∈ {Rigid, Revolute, Slider, Cylindrical, PinSlot, Planar, Ball}` with limits. Useful as a vocabulary; the data cannot be used commercially. - **URDF/MJCF:** URDF must be a tree (V, spec; `check_urdf`); inertia must be positive definite with the triangle inequality (common practice, u as a single source); cad-agent's `robot.check_urdf` already does this. - **Consistency rules an agent can run (synthesis; no published spec found):** the joint graph is connected and every part reaches a grounded part; loops close within tolerance; mated axes coincide (angle and point-to-line distance under tolerance); pin/hole diameters compatible with positive overlap length; after placement, every joint's two parts are in contact or within the declared clearance, otherwise it is a floating joint. ### 4.4 Kinematic interference - **Exact swept volumes** exist (Sellán, Aigerman, Jacobson, *Swept Volumes via Spacetime Numerical Continuation*, ACM TOG 2021; [code](https://github.com/sgsellan/swept-volumes) MIT but **patent-pending per its README (V)**; maintained in gpytoolbox `swept_volume`, MIT). They are mesh methods, seconds per part, and only needed when the envelope geometry itself is wanted (to cut a clearance pocket). - **Sampled poses are the practice.** MoveIt's Setup Assistant builds the allowed-collision matrix from 10,000 random configurations and a 2025 paper notes undersampling can wrongly disable pairs (V, arXiv 2512.23140). FCL's `continuousCollide` does conservative advancement between two poses (V). MuJoCo: sweep-and-prune broad phase, per-body AABB trees, parent–child filtering, meshes collide as convex hulls (V, docs). SolidWorks *Collision Detection* stops a drag at the first collision; Onshape animates mates and interference stays a static tool (u). - **Recommendation for ~100 parts × N poses:** tessellate once into a `CollisionManager`; per pose, `set_transform` the moving subtree and query `in_collision_internal` and `min_distance_internal`; pick the pose step from the smallest clearance and the largest surface speed between samples (step ≤ d/v misses nothing, the conservative- advancement argument); confirm any mesh hit on the exact B-rep with Common at that pose (facet chord error gives false positives, the SolidWorks caveat). Report the sample density; never claim an exact sweep. ### 4.5 Minimum wall and feature size - **Ray casting along the inward normal** is what text-to-cad's `dfam-check` (MIT, V `SKILL.md`: "fact-only, never pass/fail", mesh only) and Casys `mcp-dfm` (MIT) do; the documented weakness is that thin *diagonal* walls are undersampled when the ray follows the normal (V, mcp-dfm). libigl's `shape_diameter_function` (MPL-2.0) averages a cone of rays, which mitigates it. - **Medial-axis / inscribed-sphere** methods are exact: Attene et al., *ε-shapes*, Computers & Graphics 2017 ([arXiv 1704.08049](https://arxiv.org/abs/1704.08049), V): finds thin walls *and* thin gaps; O(n²) worst case per vertex (2,720 s complete vs 45 s thresholded map in the paper); no code release found. - **Slicers** check per layer only: PrusaSlicer's "detect thin walls" offsets by half an extrusion width and takes a Voronoi medial axis (V, OrcaSlicer mirror); Arachne replaces it with adaptive widths. - **B-rep probes:** build123d-mcp `verify_spec` has `wall_thickness_at(point, direction)` (exact ray through the solid) and an approximate global `min_wall_mm` (V); OCCT negative offset (`BRepOffsetAPI_MakeOffsetShape`) and comparison is possible but negative offsets fail on some geometry (V, tracker issues). ### 4.6 Existing open-source assembly validators and CAD lint | Tool | Licence | What it checks | Status | |---|---|---|---| | [CADCLAW](https://github.com/sunnyday-technologies/CADCLAW) | MIT (V); deps OCCT LGPL, CasADi LGPL-3 | gate chain on CadQuery/OCCT: inventory, **interference** (bbox pre-filter → boolean), **floating** (parts isolated from labelled structure beyond a max gap), adjacency, dimensional, orientation, PMI presence, AP242 round-trip, BOM, parity | the closest thing to an assembly lint; MIT, so its structure can be borrowed with attribution | | [build123d-mcp](https://github.com/pzfreo/build123d-mcp) | Apache-2.0 (V, vendored) | `interference`, `clearance` (four states), `validate`, `verify_spec` (`wall_thickness_at`, `min_wall_mm`, `material_at_point`), `design_audit` | vendored and pinned | | [Casys mcp-build123d](https://jsr.io/@casys/mcp-build123d) | MIT (V) | `observe_assembly_integrity(STEP)`: per-pair contact, intersection volume, min distance, validity, free edges; limited to 32 occurrences | | | [agentcad](https://github.com/jdilla1277/agentcad) | Apache-2.0 (V, vendored) | part-level build/measure/check-spec/diff; `expect_solids`, `floating` declarations; **no assembly checks** | vendored and pinned | | cadpilot (LBurny) | not stated (u) | FreeCAD `verify_assembly`: floating (gap > 1 mm), interferences, anchor distances | ideas only | | [text-to-cad](https://github.com/earthtojake/text-to-cad) | MIT (V, vendored) | `dfam-check`, URDF validator | vendored and pinned | | NIST STEP File Analyzer | free, NIST disclaimer (V) | Part 21 syntax, CAx-IF validation properties, PMI | Windows + Excel | | [STEPcode](https://github.com/stepcode/stepcode) | BSD-3 (V) | schema parsing only | | **Gaps (V, by absence after search):** no open tool checks *joint-graph* consistency; none checks "part inside its cavity" beyond build123d-mcp's pairwise `clearance`; none ties checks to a design dossier; none evaluates section or exploded renders as judge inputs. That is the space the plan fills. ## 5. Visual review of renders by a vision model What the measurements say (details and citations in §2.4–§2.5): - **Works:** a few *named* views chosen for the question (CADCodeVerify's four orthogonal views; CADSmith's iso, high rear and front); specific yes/no questions written from the spec with "unclear" allowed; a judge stronger than the generator; kernel metrics given to the judge first with the validity gate as a hard fail; measurements trusted over images when they conflict (MAC). - **Does not work:** counting many features (VLMCountBench: Gemini 2.5 Flash 0.58→0.30 as compositional difficulty rises, V); small gaps and clearances (CADCodeVerify, CADSmith); interior and hidden parts (CADReview); orientation and unusual viewpoints (3DSRBench ICCV'25: GPT-4o 44.2 %, Claude 3.5 Sonnet 48.2 %, human 95.7 %; orientation 21.6 % / 31.4 %; uncommon viewpoints −13.5 %, V); multi-view reasoning (BLINK ECCV'24: GPT-4V 51.3 % vs humans 95.7 %, specialists +34.6 points, V). - **Unmeasured (gap):** no paper evaluates section cuts, exploded views or per-section colour coding as judge inputs. They are the obvious mitigations for the interior and counting failures (AADvark colours faces uniquely, V, but reports no numbers), so the plan uses them and measures them (plan §6). ## 6. The incident, and what would have caught it Stated generically: a turret assembly in a robot project rendered its ammunition outside the hopper that should hold it; subassemblies read as boxes stuck on the side; every per-part check (valid solid, watertight, within the bed, no plastic-on-plastic overlap) passed. | Symptom | Practice that catches it | Where it comes from | |---|---|---| | ammunition outside the hopper | a declared `contains` relation and a containment gate (`vol(item ∩ cavity) == vol(item)`) | §1 row 3; §4.2; build123d-mcp `clearance(status=containing)` | | subassemblies that only touch by coincidence, or float | author-declared interfaces diffed against the contact graph; floating components flagged unless declared free | §1 row 4; §4.1; agentcad `floating`; CADCLAW floating gate | | boxes with no features where a mechanism should be | interfaces and joints decided before geometry, with a card per part that names its function and mates; a reviewer that did not write it answering "does any part appear as a plain box?" | §1 rows 2, 7; ArtiCAD; MAC judge | | nothing in the pipeline looked | a render packet per section with named views and section cuts through each cavity, reviewed against yes/no questions, with the answers and the geometry hash recorded; sign-off invalidated when the hash changes | §1 rows 6, 12; §5; CADCodeVerify; text-to-cad snapshot policy | | no record of why the design is as it is | spec cards with decisions and alternatives rejected; a lint that fails a part without a card | §1 row 9; §3.4 | ## 7. Licences before borrowing | Project | Licence | What may be taken | |---|---|---| | earthtojake/text-to-cad (vendored, pinned) | MIT (V) | snapshot policy wording, inspection recipes, dfam-check approach, with attribution | | pzfreo/build123d-mcp (vendored, pinned) | Apache-2.0 (V) | the four-state `clearance` semantics, `verify_spec` evidence tiers, `design_audit` idea, with attribution and NOTICE | | jdilla1277/agentcad (vendored, pinned) | Apache-2.0 (V) | structure expectations (`expect_solids`, `floating`), review-comment store shape, edit-risk classification | | Pan-Chera/Multi-Agent-CAD | MIT (V) | judge prompt rules (evidence requirement, measurements over images, `unverified` without images) | | sunnyday-technologies/CADCLAW | MIT (V); depends on CasADi LGPL-3 | gate-chain structure (inventory, interference, floating, adjacency); do not import its CasADi path | | Casys mcp-build123d / mcp-dfm | MIT (V) | assembly-integrity report shape; ray-thickness caveat | | huggingface/cadgenbench | Apache-2.0 code, ODC-BY data (V) | the validity-gate-then-score pattern; a regression eval | | microsoft/CADFusion, anniedoris/CAD-Coder, FlexCAD, CAD-Editor, BenchCAD code | MIT / Apache-2.0 (V) | ideas; none needed as code | | OCCT (through OCP) | LGPL-2.1 with exception (V) | already a dependency via CadQuery | | trimesh, python-fcl, manifold3d, gpytoolbox | MIT, BSD, Apache-2.0, MIT (V) | collision manager for the motion gate; mesh containment fallback | | MADR | MIT or CC0 (V) | the decision-record template | | **Do not copy code from:** CADCodeVerify and CADReview repos (no licence file, V); CAD-Assistant, Text2CAD, CAD-Recode (custom or NC licences); JoinABLe *dataset* (non-commercial research only, V); draftwright (AGPL-3.0, V: run as a separate program only); CADSmith, ArtiCAD, AssemCAD, CADDesigner, Idea-to-CAD (no code licence stated); the swept-volumes code (MIT but patent-pending per its README); the AIAG-VDA AP table and Boothroyd penalty tables (copyrighted: declare simplified tables of our own) | | | Standards (NASA SP-2016-6105, NPR 7123.1D) are US government works and may be quoted; ASME, ISO, SAE, AIAG and ECSS documents are cited by number only. --- Source: https://cad-agent.valpatel.com/research/fea-and-process-tools.md # FOSS large-deflection + contact FEA, orientation, sheet metal and DFM checklists (2026-10-31) For Valpatel/cad-agent #96 (items 3–5), #94 (FEA step), #97 (pitfall catalogue), #99 (process profiles). Extends `research/simulation-tools.md` (2026-10-26), which covers topology optimisation, CFD/CHT, post-processing and slicer CLIs. Notation: **(s)** search snippet only · **(u)** unverified · **[derived]** my calculation · "read" = text read on this date. ## 0. What `cadagent.fea` does today From the module docstring, read from `origin/dev:src/cadagent/fea.py`: - gmsh tetrahedra and scikit-fem P2 linear elasticity. - Solvers: PARDISO, SciPy direct, or CG with pyamg. - "linear and small-deflection; isotropic", with weak-direction strengths for printed materials. - "Contact, bolt preload and buckling are not modelled." A snap engagement needs geometric nonlinearity, contact with friction, and preferably an orthotropic printed material, so the current module cannot model one. Closed-form checks (compliant-mechanisms.md §2) cover sizing. FEA is needed for force-vs-travel curves, U/L shapes, ring segments, both parts flexing, and checking the root fillet. ## 1. Solvers for nonlinear geometry + contact | Solver | Licence | Version / install on our hosts | Large deflection | Contact | Orthotropic (layer frame) | Python driving | Fit for snap engagement | |---|---|---|---|---|---|---|---| | **CalculiX ccx** | GPL-2.0 ([dhondt.de](http://www.dhondt.de/)) | **2.23**, manual dated 2025-10-19 ([ccx_2.23.pdf](http://www.dhondt.de/ccx_2.23.pdf), read). Ubuntu apt `calculix-ccx` **2.21** (checked on this workstation: noble); conda-forge `calculix` **2.23** | `*STEP, NLGEOM` (44 hits in the manual) | `*CONTACT PAIR` NODE TO SURFACE, SURFACE TO SURFACE (penalty), **MORTAR**; `*SURFACE BEHAVIOR` LINEAR / EXPONENTIAL / TABULAR / TIED; `*FRICTION`; `*RIGID BODY` (manual) | `*ELASTIC, TYPE=ENGINEERING CONSTANTS` + `*ORIENTATION` (manual) | Write `.inp` text; read `.frd`/`.dat` (e.g. [ccx2paraview](https://pypi.org/project/ccx2paraview/) 3.2.0, licence (u)) | **Best fit**: mature contact, small binary, apt/conda, Abaqus-like syntax that LLMs know. Run as a subprocess (GPL) | | **FreeCAD FEM** (CalculiX writer) | LGPL-2.1 | FreeCAD **1.1.4** (2026-09-28); 26.3 RC2 (2026-10-18) ([releases](https://github.com/FreeCAD/FreeCAD/releases)) | `GeometricalNonlinearity` adds `, NLGEOM` ([write_step_equation.py](https://github.com/FreeCAD/FreeCAD/blob/main/src/Mod/Fem/femsolver/calculix/write_step_equation.py), read) | Writes `*CONTACT PAIR … TYPE=SURFACE TO SURFACE`, LINEAR (slope) / HARD / TIED, `*FRICTION µ, stick slope`, optional ADJUST ([write_constraint_contact.py](https://github.com/FreeCAD/FreeCAD/blob/main/src/Mod/Fem/femsolver/calculix/write_constraint_contact.py), read) | Material cards (isotropic in the GUI) (u) | `freecadcmd` scripts; the FreeCAD wiki is behind Anubis bot protection | Good for humans and for reading `.inp` examples. Heavier than writing `.inp` ourselves | | **Elmer** | GPL-2+/LGPL mix (simulation-tools.md) | release-26.2 | ElasticSolve, nonlinear elasticity (u) | Mortar contact in `ContactUtils.F90`; **26 contact regression tests** incl. `ContactFriction`, `ContactFrictionNonlin`, `ContactBlunt2D*`, `ContactPatch3D*` ([fem/tests](https://github.com/ElmerCSC/elmerfem/tree/devel/fem/tests), read) | (u) | `.sif` text | Second choice; good docs-by-tests | | **Code_Aster** | GPL-3.0 (+ CeCILL-C/Apache/LGPL parts) | conda-forge `code-aster` **18.1.11** (read via the anaconda API) | STAT_NON_LINE (u) | DEFI_CONTACT (u) | yes (u) | `.comm` Python-like | Most capable; heaviest to learn. Use for difficult validation cases | | **FEniCSx** | LGPL-3.0 (dolfinx 0.11) | Docker/conda (simulation-tools.md) | Native (UFL hyperelastic, Newton) | Core has none; [dolfinx-contact](https://github.com/Wells-Group/asimov-contact) (MIT) is "under heavy development and highly experimental", needs dolfinx 0.11 | Custom UFL | Pure Python/UFL | Not now; penalty contact against a rigid plane is easy to hand-write | | **scikit-fem** | BSD-3-Clause | **12.0.2**, already in cad-agent | Hyperelastic examples ex36, ex43, **ex55 (updated Lagrangian)** | Mortar contact ex04 and **ex51** (2D, linear elastic) ([docs/examples](https://github.com/kinnala/scikit-fem/tree/master/docs/examples), read) | Write our own | In-process | No ready nonlinear-contact example. Writing a 2D total-Lagrangian + penalty contact is feasible later (BSD, in-process) | | **SfePy** | BSD-3-Clause | PyPI **2026.3** | Total-Lagrangian hyperelastic (u) | Penalty contact terms: `elastic_contact_planes.py`, `elastic_contact_sphere.py`, `two_bodies_contact.py` ([examples](https://github.com/sfepy/sfepy/tree/master/sfepy/examples/linear_elasticity), read) | yes (u) | Python | Viable permissive in-process option; worth a spike against ccx | | **Kratos** | BSD-4-clause-style with an advertising clause ([kratos/license.txt](https://github.com/KratosMultiphysics/Kratos/blob/master/kratos/license.txt), read; GitHub shows NOASSERTION) | PyPI `KratosMultiphysics` + `KratosContactStructuralMechanicsApplication` **10.4.4** | yes (u) | Mortar contact app (u) | (u) | `pip`, JSON + Python | Watch; wheels make it the easiest permissive 3D contact install | | MOOSE | LGPL-2.1 | Source/conda build | yes (u) | contact module (u) | yes (u) | `.i` files | Skip (build weight) | | [PyChrono](https://github.com/projectchrono/chrono) / [PyElastica](https://github.com/GazzolaLab/PyElastica) | BSD-3 / MIT | active | Beams, shells / Cosserat rods | Chrono FEA contact (u) | no | Python | Fast large-deflection beam checks only | **Recommendation.** - Add `cadagent.fea_nl`, which writes CalculiX `.inp` from our gmsh mesh and runs `ccx` as a subprocess (GPL boundary as in simulation-tools.md). Validate it on the three Bayer gold cases first. - Keep scikit-fem for the linear checks. - Spike SfePy or Kratos only if we need contact in-process. - Use Elmer or Code_Aster as independent cross-checks on one case. ## 2. Minimal snap-engagement run (CalculiX) Settings verified in the ccx 2.23 manual: - Linear pressure-overclosure K "5 to 50 times the E-modulus of the adjacent materials". - Stick slope "about 100 times smaller than the spring constant"; μ "usually 0.1–0.5". - Convergence advice: try without NLGEOM first, SMALL SLIDING first, and a linear pressure-overclosure. Base the slave surface on faces, especially with quadratic elements. The slave mesh must be at least as fine as the master. - Plane-stress elements are expanded to 3D internally and "must have a small thickness". | Item | Choice for a cantilever-hook engagement | |---|---| | Geometry | The 2D section of the beam with its hook and root fillet, plus the mating ramp or edge. Use 3D only for ring segments, U shapes or annular snaps | | Mesh | gmsh second-order triangles (CPS6) or quads (CPS8), at least 4 elements through the root thickness, refined at the fillet and the contact faces | | Material | Secant E at the design strain (Bayer Fig. 16 for PC), or the printed XY/Z E from TDS (compliant-mechanisms.md §5). For printed beams: `*ELASTIC, TYPE=ENGINEERING CONSTANTS` with E₁ = E₂ = E_XY, E₃ = E_Z, G and ν estimated (u), and `*ORIENTATION` taken from the part's print rotation (`cad/build.py` table) | | Mating part | Rigid: `*RIGID BODY, NSET=…, REF NODE=…` driven by `*BOUNDARY` displacement. Or elastic if both parts flex (Bayer "both mating parts elastic") | | Contact | `*CONTACT PAIR, INTERACTION=SI, TYPE=SURFACE TO SURFACE` with hook faces as slave; `*SURFACE BEHAVIOR, PRESSURE-OVERCLOSURE=LINEAR` K ≈ 10·E; `*FRICTION` μ from Bayer Table 3, λ = K/100 | | Step | `*STEP, NLGEOM, INC=…` + `*STATIC` with a small initial increment. Drive the mate through insertion, then back out for the release force | | Outputs | `*NODE PRINT, TOTALS=ONLY` RF on the reference node, giving the F–δ curve, peak insertion force W and release force; `*EL FILE` S, E giving peak strain at the root; `*CONTACT FILE` CDIS, CSTR | | Acceptance | (1) At small strain, ccx P and W within about 10 % of Bayer closed form (Example I: P = 32.5 N, W = 58.5 N) [target, derived]. (2) The result changes < 5 % on mesh halving (or a GCI study, as NovaSolver does). (3) The F–δ curve returns to ≈ 0 after release. (4) Peak strain in the print frame ≤ the derated allowable: ε_XY in the layer plane, ε_ZZ across layers | | Evidence to store | `.inp`, solver version, F–δ CSV, a strain map PNG, the hash of the STEP it came from (binding as `cad-agent` already does for other checks) | | Run cost | 2D: about 10³–10⁴ elements, seconds to minutes (u). 3D annular: minutes to an hour; use the cad-remote-runs skill for long runs | ## 3. Print-orientation optimisers | Tool / method | Licence | What it optimises | Anisotropy-aware | Use | |---|---|---|---|---| | [ChristophSchranz/Tweaker-3](https://github.com/ChristophSchranz/Tweaker-3) | GPL-3.0 | Overhang/support area, bottom area, contour; evolutionary-tuned weights; 110★, push 2026-03-24 | No | External comparator (subprocess) | | Slicer auto-orient: Bambu/Orca CLI `--orient` (simulation-tools.md §5); Orca 2.5 MCP (agent-toolkits note) | AGPL | Support/overhang | No | Cross-check | | [b123d-print `suggest_orientation`](https://github.com/KD5RYN/b123d-print/blob/main/src/b123d_print/orient.py) | MIT | Overhang plus the tip-over measure (Orca auto-brim formula) ([checks.md](https://github.com/KD5RYN/b123d-print/blob/main/docs/using/checks.md)) | No | Borrow ideas | | Umetani & Schmidt 2013, cross-sectional structural analysis ([Autodesk Research](https://www.research.autodesk.com/publications/cross-sectional-structural-analysis-for-3d-printing-optimization)) | paper / patents (US10239258) | Weakest cross-section under bending, then the orientation | Assumes isotropy (s) | Method idea | | Ulu et al., build orientation for maximum safety factor ([ITU record](https://research.itu.edu.tr/en/publications/enhancing-the-structural-performance-of-additively-manufactured-o/)) | paper | Orientation maximising the minimum FoS with anisotropic properties from coupons, using a surrogate | **Yes** (s) | The method to copy for loaded parts | | Anisotropic multi-component TO with build orientation ([arXiv 1911.10393](https://arxiv.org/abs/1911.10393)) | paper | Joint topology and orientation | Yes | Research only | | pyMOTO `OverhangFilter` (simulation-tools.md §1) | MIT | Topology under a fixed build direction | n/a | Already recommended | **Gap and proposal.** No FOSS tool scores orientation against the *strain direction of declared compliant features*. Proposed deterministic scorer [derived]: for each of the 6 axis-aligned orientations (plus slicer suggestions), compute - overhang area (`cadagent.geometry.downward_area`, already exists); - support volume; - the tip-over measure; - for each declared flexing feature, the fraction of peak bending strain whose direction has a Z component across layers. Reject any orientation that puts a snap or flexure's bending across layers (Klahn 2016, Hubs; compliant-mechanisms.md §5). ## 4. Sheet metal: unfold and bend tables | Tool | Licence | Status | Bend model / tables | Headless | Use | |---|---|---|---|---|---| | **build123d `BuildSheet` + `unfold`** | Apache-2.0 | dev branch only (not in v0.13.0); commits 2026-07-21 → 2026-10-21 | Neutral radius from thickness, K-factor and reference surface; flange, bend/corner relief, hem, jog, miter, thicken ([docs](https://github.com/gumyr/build123d/tree/dev/docs/sheet_metal), read) | yes (Python) | **Adopt on release**: same kernel as text-to-cad, permissive | | [shaise/FreeCAD_SheetMetal](https://github.com/shaise/FreeCAD_SheetMetal) | LGPL-2.1 | 350★, push 2026-10-17 | K-factor ANSI or DIN; a "material definition" spreadsheet mapping R/T → K per bend; example `MDS/mild_steel.csv` (K = 0.40 for 1–6 mm); `tools/calc-unfold.py`; unattended unfold and DXF/SVG export; `SMTests/testKfactor.py` (README and files read) | via `freecadcmd` (u) | Fallback (external process) | | [alexneufeld/YouCanNotUnfold](https://github.com/alexneufeld/YouCanNotUnfold) | LGPL-2.1 | 22★, push 2026-10-09 | "Fast robust sheet metal unfolding tools for FreeCAD" | (u) | Watch | | SendCutSend specs JSON (landscape.md §5) | vendor data | live | 178 materials: K-factor, bend radius, bend deduction, minimum hole and bridge | fetch | Source for the K and R tables (fetch and cite, don't redistribute) | | text-to-cad #614 `cadgen.unfold` | MIT | open proposal | — | — | Contribute or reuse build123d's | Bend allowance BA = θ·(R + K·T); flat length = Σ flats + Σ BA [derived; this is the neutral-axis model the build123d docs describe]. ## 5. Published checklists whose items can become deterministic checks (#97) Sources: the DuPont design manual [DUP]; the Boothroyd Dewhurst DFM checklist [BD]; Protolabs moulding [PL-IM] and sheet-metal [PL-SM] guidelines; Hubs FDM [HUBS-FDM] and snap-fit [HUBS-SF] guides; the UF design-lab checklist [UF] and common-mistakes list [UF-M]; b123d-print checks [B123]; Bayer [BAY]; the Klahn paper [KLA]; Boothroyd DFA criteria [DFA]. "Exists" means cad-agent already has a check, according to `docs/common-issues.md` on origin/dev. | ID | Check | Rule / threshold | Source | Process | Implementation hint | Status | |---|---|---|---|---|---|---| | G1 | Holes and countersinks clear of later features (cylinders **and cones**) | Probe material inside each hole and countersink cone | common-issues.md; #98 | all | Extend `cad-agent holes` to `Cone` faces | partly exists (#98) | | G2 | Tool/driver access along the fastener axis | Swept tool envelope collision-free | [UF] "fastener head types allow adequate motion with tools" | all | Sweep a hex-key or driver cylinder along the axis | exists (assembly-access gate) | | G3 | Thread engagement | ≥ 5 threads (UF lab rule) or project rule | [UF] | all | Stack length vs pitch | exists (fastener gate) | | G4 | Rib/boss ends on air | Every rib end face touches a wall solid | common-issues.md | all | Face adjacency after the boolean | new | | M1 | Rib thickness vs wall | rib ≤ 60 % of the adjacent wall | [BD] (DuPont plots 60 % ribs [DUP]) | moulding | Medial thickness ratio | new | | M2 | Rib base fillet | ≈ ½ rib thickness | [DUP] | moulding | Fillet radius at the rib root | new | | M3 | Draft | ≥ 0.5° on vertical faces, 2° typical, ≥ 3° light texture, ≥ 5° heavier texture (PM-T2), ≥ 3° on shut-offs | [PL-IM]; resin table [DUP] | moulding | Face normal · pull direction | new (cf. text-to-cad `mold_tool.py`) | | M4 | Wall thickness range per resin | e.g. PC 1.016–3.81 mm, PP 0.889–3.81 mm, nylon 0.762–2.921 mm | [PL-IM] | moulding | Ray-cast thickness histogram | new | | M5 | Boss OD | 2–2.5 × hole diameter | [DUP] | moulding / FDM | Annulus measure on bosses | new | | M6 | Blind cored hole | depth ≤ 2 × core-pin diameter; floor ≥ d/6 | [DUP] | moulding | Hole depth vs diameter | new | | M7 | Sharp internal corners | radius ≥ 0.5 mm (0.020 in); fillet ≈ t/2 | [DUP][BD] | moulding | Concave edge radius | new | | M8 | Undercut needs a side action | Faces not visible from ±pull | [BD]; dfm-agent approach | moulding | Visibility per pull direction | new | | C1 | Snap/flexure strain | ε(y, l, h, taper) ≤ derated allowable(material, process, orientation, cycles) | [BAY][DUP]; compliant-mechanisms.md §6 | all | Calculator from #95 on declared features | new (#95) | | C2 | Snap root fillet | R ≥ max(0.38 mm, 0.5·h) | [BAY][HUBS-SF] | all | Fillet at the beam root | new | | C3 | Flexing member bends across layers | Strain direction in the print frame must not cross layers | [KLA][HUBS-SF] | FDM | Beam axis and bending normal vs print Z | new | | C4 | Print-in-place gap | gap ≥ pip_clearance (0.3–0.5 mm FDM; 0.3 mm SLS/MJF); Z gaps = n·layer height | [HUBS-SF][B123] | AM | Minimum distance between the solids of one part | new | | C5 | Snap min width / base (MJF) | width ≥ 5 mm; base ≥ 1 mm | [HUBS-SF] | MJF | Section measure | new | | P1 | Overhang | > 45° from vertical needs support | [HUBS-FDM][B123] | FDM / SLA | `downward_area` | exists | | P2 | Bridge length | warn > 5 mm (Hubs) or > 10 mm (b123d-print default) | [HUBS-FDM][B123] | FDM | Flat downward faces resting on walls on two sides | new | | P3 | Round horizontal hole sags | Use a teardrop or flat roof | [B123] | FDM | Horizontal cylinder with a round top | new | | P4 | Bed-edge fillet flares | Use a chamfer on edges at the bed | [HUBS-FDM][B123] | FDM | Curved faces touching z = 0 | new | | P5 | Tip-over | brim = tip_speed·H²·W/(1920·I) ≥ 5 mm warns | [B123] | FDM | Footprint second moment of area | new | | P6 | Thin wall vs line width | < 1 line width fails | [B123] | FDM | Section scans | exists (wall gate) | | P7 | Small pins | < 5 mm diameter is weak; fillet the base | [HUBS-FDM] | FDM | Cylinder radius + fillet | new | | S1 | Minimum flange | ≥ 4T | [PL-SM][BD] | sheet | Flange length per bend | new | | S2 | Hole diameter | ≥ T | [PL-SM] | sheet / laser | Hole radius | new | | S3 | Hole to edge | ≥ 2T [BD]; Protolabs 1.574 mm (T ≤ 0.914) / 3.175 mm | [BD][PL-SM] | sheet / laser | Edge distance | new | | S4 | Hole to bend | ≥ 2T + R [BD]; features within about 4T of a bend distort [PL-SM] | [BD][PL-SM] | sheet | Distance to the bend line in the flat pattern | new | | S5 | Bend radius | ≥ T [BD]; one radius for all bends [PL-SM] | [BD][PL-SM] | sheet | Radius list | new | | S6 | Bend relief present | relief at every bend that ends inside the blank (sizing from SendCutSend/Protolabs (u)) | [BD] | sheet | Notch at bend ends | new | | S7 | Hems | inside diameter ≥ T; return ≥ 6T | [PL-SM] | sheet | Hem geometry | new | | S8 | Tabs and notches | tab ≥ max(2T, 3.2 mm), length ≤ 5 × width; notch ≥ max(T, 1.016 mm) | [PL-SM] | sheet / laser | Slot widths | new | | A1 | DFA part count | Each part must pass ≥ 1 of: moves relative to its neighbours; must be a different material; must be separate to assemble or service the others. Otherwise it is a candidate for merging, e.g. into a compliant feature | [DFA] | all | BOM + assembly graph prompt (with #40) | new (review prompt) | | A2 | Every fastener modelled; clearance check run on the full assembly | — | [UF] | all | BOM vs solids | exists (gates) | | R1 | Claims backed by evidence | No feature called validated without a coupon (#94 item 5) | common-issues.md | all | Dossier lint | exists (partly) | Checks C1–C5 are the compliant-feature checks for #94; S1–S8 and M1–M8 need process metadata per part (#99). **References** - [DUP] https://www.emcoplastics.com/assets/pdf/acetal/General%20Design%20Principles%20for%20Engineering%20Polymers.pdf - [BD] https://www.dfma.com/resources/pdf/dfm-design-review-checklist.pdf - [PL-IM] https://www.protolabs.com/services/injection-molding/plastic-injection-molding/design-guidelines/ - [PL-SM] https://www.protolabs.com/services/sheet-metal-fabrication/design-guidelines/ - [HUBS-FDM] https://www.hubs.com/knowledge-base/how-design-parts-fdm-3d-printing/ - [HUBS-SF] https://www.hubs.com/knowledge-base/how-design-snap-fit-joints-3d-printing/ - [UF] https://web.mae.ufl.edu/designlab/Lab%20Assignments/EML2322L%20Final%20Design%20Checklist.pdf - [UF-M] https://web.mae.ufl.edu/designlab/TA/Common%20Design%20Review%20Mistakes.pdf (e.g. "not considering room for tools", "less than 5 threads of engagement") - [B123] https://github.com/KD5RYN/b123d-print/blob/main/docs/using/checks.md - [BAY] https://cdn.sparkfun.com/assets/home_page_posts/1/4/1/0/Plastic_Snap_fit_design.pdf - [KLA] https://publikationen.bibliothek.kit.edu/1000142464 - [DFA] Boothroyd–Dewhurst minimum-part criteria as summarised at https://www.wevolver.com/article/dfma-design-for-manufacturing-and-assembly-explained and https://www.dfma.com/design-for-assembly.asp (s) **Could not verify:** - Code_Aster, Kratos, MOOSE and Chrono keyword- and feature-level claims (marked (u)). - Elmer ElasticSolve large deformation. - ccx run times. - FreeCAD wiki pages (bot-blocked). - ccx2paraview licence. - Bend-relief sizing numbers. - Whether FreeCAD SheetMetal unfold runs under `freecadcmd` without the GUI. --- Source: https://cad-agent.valpatel.com/research/landscape.md # Agentic hardware-design landscape (verified 2026-10-24) > **Refreshed 2026-10-31** (issue #96): [agent toolkits since 10-24](https://cad-agent.valpatel.com/research/agent-toolkits-2026-10.md) (text-to-cad 0.8 break, > OrcaSlicer 2.5 MCP, build123d sheet metal, snap-fit skills), [compliant mechanisms](https://cad-agent.valpatel.com/research/compliant-mechanisms.md) (snap > fits, flexures, allowable strains, FDM anisotropy from datasheets) and [FEA and process tools](https://cad-agent.valpatel.com/research/fea-and-process-tools.md) > (large-deflection contact solvers, orientation optimisers, sheet metal, 37 candidate deterministic checks). Scope: public tools that let frontier-model agents (Claude Code first; Codex, Cursor, Gemini) design 3D-printed, sheet-metal, laser-cut, CNC and molded parts, enclosures around real PCBs, and KiCad boards. Method: stars, SPDX licence and last push come from `gh api repos/OWNER/REPO` on this date; capabilities come from each repo's README, manifests or source as read. **(u)** = unverified (README claim or third-party page not checked in source). Machine-readable copy: [`landscape.json`](https://github.com/Valpatel/cad-agent/blob/dev/research/landscape.json). ## 1. Capability matrix Clients: **CC** = Claude Code plugin/skill, **MCP** = MCP server, **Cx** = Codex, **Cu** = Cursor, **Ge** = Gemini, **App** = standalone app. | Project | Licence | Stars | Push | Clients | Kernel / tool | Processes | DFM rules cited | Materials / cost | Render loop | Drawings | Vendor / slicer | Evals | |---|---|---|---|---|---|---|---|---|---|---|---|---| | [earthtojake/text-to-cad](https://github.com/earthtojake/text-to-cad) | MIT | 22,951 | 10-25 | CC, Cx, Cu, Ge, Grok, MCP, skills.sh | build123d 0.11 / OCP 7.9 | FDM, SLA, SLS, MJF, metal PBF (mesh); sheet, CNC, molding (review); laser (DXF); URDF/SDF | Yes: Hubs, Protolabs, ISO/ASTM 52910 | No (SendCutSend specs fetched live) | Yes (headless snapshots + viewer) | Yes, PDF | OrcaSlicer, Bambu Connect/Studio, SendCutSend, step.parts | None in repo | | [amagine-ai/Amagine3D](https://github.com/amagine-ai/Amagine3D) | Apache-2.0 | 6,259 | 10-22 | App (OpenAI-compatible key, Codex SDK) | build123d, OCP, Manifold | FDM enclosures, multi-part | (u) | (u) | Yes (5-view) | (u) | none seen | none | | [Adam-CAD/CADAM](https://github.com/Adam-CAD/CADAM) | GPL-3.0 | 5,328 | 10-15 | App (web) | OpenSCAD | general | No | No | Yes | No | none | Showcase prompts only | | [KittyCAD/modeling-app](https://github.com/KittyCAD/modeling-app) + [KittyCAD/mcp](https://github.com/KittyCAD/mcp) | MIT / MIT | 1,321 / 10 | 10-25 | App; MCP (needs `ZOO_API_TOKEN`) | KCL on Zoo's closed cloud engine | general | (u) | (u) | Yes | (u) | none | none | | [Pan-Chera/Multi-Agent-CAD](https://github.com/Pan-Chera/Multi-Agent-CAD) (MAC) | MIT | 1,048 | 10-17 | App + web UI | build123d | FDM parts, assemblies, URDF | No | No | Yes + judge agent | No | none | Own 10-prompt / 141-feature set | | [OzAILabs/Claude-To-Print](https://github.com/OzAILabs/Claude-To-Print) | MIT | 4 | 08-15 | CC skills (from MAC) | build123d | FDM, multicolour 3MF | No | No | Yes | No | Bambu | none | | [jdilla1277/agentcad](https://github.com/jdilla1277/agentcad) | Apache-2.0 | 173 | 10-23 | CLI, MCP, skill | build123d (CadQuery mode) | general | No | No | Yes, diffing | No | none | CADGenBench runs | | [pzfreo/build123d-mcp](https://github.com/pzfreo/build123d-mcp) | Apache-2.0 | 130 | 10-15 | MCP | build123d | general | No | No | Yes | SVG/DXF export | none | CADGenBench ([pipeline](https://github.com/pzfreo/cadgenbench-build123d)) | | [flowful-ai/cad-skill](https://github.com/flowful-ai/cad-skill) | **PolyForm-Noncommercial-1.0.0** | 692 | 07-14 | CC skill | CadQuery | FDM | No | No | Yes | No | Prusa/Bambu mentions | none | | [Svetlana-DAO-LLC/cad-agent](https://github.com/Svetlana-DAO-LLC/cad-agent) (was clawd-maf) | Custom "CAD Agent License" | 53 | 02-17 | MCP | build123d | FDM | No | No | Yes | No | none | none | | [MikeSuiter/claude-build123d-starter](https://github.com/MikeSuiter/claude-build123d-starter) | MIT | 1 | 06-08 | CC template | build123d | FDM, CNC, laser (u) | No | No | Live preview | No | none | none | | [neka-nat/freecad-mcp](https://github.com/neka-nat/freecad-mcp) | MIT | 3,040 | 10-25 | MCP | FreeCAD (LGPL, external) | general, FEM (u) | No | No | Screenshots | (u) | none | none | | [jhacksman/OpenSCAD-MCP-Server](https://github.com/jhacksman/OpenSCAD-MCP-Server) | MIT | 208 | 09-07 | MCP | OpenSCAD | FDM | No | No | Preview images | No | none | none | | [altendky/onshape-mcp](https://github.com/altendky/onshape-mcp) | Apache-2.0 | 20 | 10-24 | MCP | Onshape (closed SaaS) | general | No | No | (u) | (u) | none | none | | [faust-machines/fusion360-mcp-server](https://github.com/faust-machines/fusion360-mcp-server) | MIT | 131 | 10-06 | MCP (CC, Cu, Cx docs) | Fusion (closed) | general | No | No | (u) | (u) | none | none | | [ahujasid/mcp-for-blender](https://github.com/ahujasid/mcp-for-blender) | MIT | 32,261 | 10-24 | MCP, Cx plugin | Blender (mesh, not B-rep) | visual only | No | No | Yes | No | Poly Haven, Sketchfab, paid generators | none | | [mixelpixx/KiCAD-MCP-Server](https://github.com/mixelpixx/KiCAD-MCP-Server) | MIT | 2,933 | 10-01 | MCP | KiCad 9+ (kicad-python + SWIG `pcbnew`) | PCB | KiCad DRC | JLCPCB parts + prices | Snapshots | No | JLCPCB, DigiKey, Freerouting | none | | [mixelpixx/Konnect](https://github.com/mixelpixx/Konnect) ([obhox/kicad-mcp](https://github.com/obhox/kicad-mcp) is a fork) | **AGPL-3.0** | 1,399 | 10-25 | KiCad plugin + MCP, CC skills | KiCad 10 IPC (Rust) | PCB | design-review audits (u) | (u) | (u) | No | Freerouting | none | | [oaslananka/kicad-mcp-pro](https://github.com/oaslananka/kicad-mcp-pro) | MIT | 149 | 10-25 | MCP, CC plugin skills, Cx/VS Code config | KiCad 10.0.x (kicad-cli/IPC; no SWIG) | PCB | 8 fab profiles with source URLs | Fab pricing coefficients | 3D render PNG | No | JLCPCB; Nexar/DigiKey/Mouser with keys | `evals/`, `benchmarks/` dirs | | [Seeed-Studio/kicad-mcp-server](https://github.com/Seeed-Studio/kicad-mcp-server) | **No LICENSE file** (MIT only in pyproject) | 168 | 10-22 | MCP | KiCad 8-10 (`pcbnew`) | PCB analysis, device tree | KiCad ERC/DRC | PartReel registry | No | No | PartReel | none | | [lamaalrajih/kicad-mcp](https://github.com/lamaalrajih/kicad-mcp) | MIT | 529 | 2025-10-17 | MCP | KiCad 9 | PCB | DRC | BOM | (u) | No | none | none; stale | | [aklofas/kicad-happy](https://github.com/aklofas/kicad-happy) | MIT | 1,499 | 10-25 | CC plugin, Cx, Copilot, Gemini/Antigravity, GitHub Action | KiCad file parsing, SPICE | PCB review, EMC, Gerber | EMC rules ref | BOM, distributors | No | No | JLCPCB, PCBWay, DigiKey, Mouser, LCSC, element14 | none | | [American-Embedded/kistack](https://github.com/American-Embedded/kistack) | MIT text (GitHub: NOASSERTION) | 411 | 10-24 | skills.sh | KiCad | schematic, layout, Gerber review | prose | No | No | No | none | none | | [i2cjak/Backplane](https://github.com/i2cjak/Backplane) | MIT (ships a KiCad fork) | 731 | 10-25 | App; multi-harness agents | KiCad fork + FreeCAD viewers | PCB + case | No | No | Yes | No | none | none | | [copperheadhq/copperhead](https://github.com/copperheadhq/copperhead) | Apache-2.0 | 627 | 10-24 | CLI, agent-install prompt | KiCad s-expr + kicad-cli | PCB | ERC/DRC | parts (u) | (u) | No | none | none | | [punkfab/circuit-skills](https://github.com/punkfab/circuit-skills) | **No licence** | 10 | 10-06 | CC skills, Cx plugin | kipy, build123d, ngspice | PCB + `pcb-enclosure-fit` | No | No | Blender renders | No | Freerouting | PCBWorld harness | Building blocks: [gumyr/build123d](https://github.com/gumyr/build123d) (Apache-2.0, 3,519), [CadQuery](https://github.com/CadQuery/cadquery) (Apache-2.0 in LICENSE file; GitHub shows NOASSERTION, 5,990), [gumyr/bd_warehouse](https://github.com/gumyr/bd_warehouse) (Apache-2.0, ISO fasteners and threads), [partcad/partcad](https://github.com/partcad/partcad) (Apache-2.0, 509), [sargo-devel/Cables](https://github.com/sargo-devel/Cables) (LGPL-3.0 FreeCAD cable-routing workbench), [wireviz/WireViz](https://github.com/wireviz/WireViz) (GPL-3.0, 2D harness documents). [rjwalters/kicad-tools](https://github.com/rjwalters/kicad-tools) (MIT) keeps a long, licence-annotated survey of KiCad and agent tools in its README. ## 2. Deep dive: earthtojake/text-to-cad (v0.7.26, 2026-10-20) **What it is.** A plugin monorepo. `skills/` holds the product. `packages/cadgen` is the PyPI runtime, MIT, with build123d, OCP, a build daemon, STEP/GLB/3MF/DXF output, a viewer backend and an MCP server. `apps/` holds the viewer, the MCP app, the docs site and `api.texttocad.dev`. It is mostly one maintainer: earthtojake has 1,136 commits, then bots and a few contributors. **Skills** (each is MIT and carries its own `LICENSE`): | Skill | What it does | Code it runs | |---|---|---| | cad | build123d models with `@step/@stl/@threemf/@glb` decorators; `read_step`/`read_scene`; face/edge refs; snapshots; viewer | cadgen via pinned `uvx` | | step-parts | Search and download catalog STEP files (screws, bearings, standoffs, boards), with sha256 check | `download_step_part.py` → `api.step.parts` | | engineering-drawing | Third-angle views, hidden lines, measured dimensions, hole callouts, ISO title block → PDF | `cadgen.eng_drawing` | | dxf | 2D profiles, flat pattern of *already flat* plates, kerf offset | `cadgen.flatten` | | dfam-check | Mesh wall thickness (ray-cast), overhang, support volume, 6 axis orientations; limits table per FDM/SLS/SLA/PBF/MJF | `dfam_tool.py` (trimesh) | | dfm | Guided sheet/CNC/molding review with a cited rule per finding; only molding is measured (draft, undercuts, projected area) | `mold_tool.py` | | sendcutsend | Preflight of DXF/STEP against SendCutSend's live catalog and specs JSON | fetches `cdn.sendcutsend.com` | | gcode | Writes complete OrcaSlicer presets and slices headless | `orca_presets.py` (stdlib) | | bambu-labs | Hands off to Bambu Connect (`bambu-connect://` link) or Bambu Studio; never controls the printer | none | | urdf / srdf / sdf | Robot and simulator descriptions, with validation | cadgen | **Install (Claude Code):** `claude plugin marketplace add earthtojake/text-to-cad#latest` then `claude plugin install text-to-cad@earthtojake`. The `latest` branch holds only the plugin, one commit per release. **Security review.** - `.claude-plugin/plugin.json` declares only `skills` and `mcpServers`. It has **no hooks, commands or agents**. `.githooks/pre-commit` is for development only. - Claude Code starts the MCP server with `uvx --no-config --managed-python --python 3.13 --from cadgen==0.7.26 cadgen mcp`. The first start downloads a managed CPython and cadgen. cadgen is pinned exactly, but its dependencies are ranges with no hash lock: build123d <0.12, cadquery-ocp-novtk 7.9, ezdxf, matplotlib, pillow, shapely, playwright==1.64.0. The wheel bundles Node/browser JS and a native file tracer (`filetrace.c`). The first snapshot downloads a Playwright browser. - **Telemetry is on by default.** It sends counts, a random install ID, the OS and agent app, and crash types to `api.texttocad.dev`, which stores them in PostHog; the server derives country from IP. The README says names, paths, contents and prompts are never sent; I did not audit the payload code line by line. Turn it off with `uvx cadgen telemetry off`, `DO_NOT_TRACK=1` or `CADGEN_TELEMETRY=0`. - **Daily update check** to `api.texttocad.dev/v1/versions`. Turn it off with `CADGEN_UPDATE_CHECK=0`. - The viewer binds 127.0.0.1 with **no authentication** (per its SECURITY.md). Any local process can read files under the opened folder and trigger builds. - The dfam-check and dfm skills `pip install` unpinned `requirements.txt` files into the *active project environment*. - Model scripts are arbitrary Python run by the daemon, which is normal for code-CAD. **Coverage of our J501 workflow:** | J501 capability | text-to-cad today | |---|---| | Vendor STEP ingestion | Yes (`read_step`, `read_scene`, refs). Viewer fails on large PCB STEP: open [#626](https://github.com/earthtojake/text-to-cad/issues/626), "exceeds viewer memory envelope" | | Clearance vs 5000+ carrier solids | Primitives only: `cadgen.geometry.closest_points` and `overlap_volume`. The `interference` module was retired; the caller writes pair selection. No broad-phase or report | | Schematic ingestion | No. PCB support is open PR [#518](https://github.com/earthtojake/text-to-cad/pull/518) (KiCad 11 nightly, vendored kipy) | | Enclosure around a real board | Generic examples only (`electronics_enclosure_base.py`) | | Connector windows from board STEP | No | | Standoffs / fastener stack length | Catalog parts via step-parts. Stack-length checks exist only as model-specific scripts in `models/tendon_hand`, not as a skill | | Cable routing, bend radius | No | | Renders | Yes | | PDF check sheet | Drawings yes; no check-sheet or evidence PDF | | Review / evidence site, STL/3MF/Bambu links | Local unauthenticated viewer; 3MF export and Bambu handoff yes; no publishable evidence page | | DfAM | Walls and overhangs measured; hole size, min feature and bridge are "not checked" (per `process-limits.md`) | | Sheet-metal unfold | No; proposal [#614](https://github.com/earthtojake/text-to-cad/issues/614) | Kernel note: text-to-cad uses build123d. Our J501 code is CadQuery. Both use OCP, so shapes interoperate through `.wrapped`. ## 3. KiCad MCP servers: install and security, then a recommendation | | kicad-mcp-pro | mixelpixx KiCAD-MCP-Server | Seeed kicad-mcp-server | kicad-happy (skills) | |---|---|---|---|---| | Install | `uvx kicad-mcp-pro`. The shipped `.mcp.json` is **unpinned**, so each launch runs latest PyPI | `git clone`; `npm install` runs `prepare` → `npm run build`; pip requirements | `pip install -e .` into KiCad's Python | CC marketplace plugin | | KiCad | 10.0.x primary (10.0.7 verified), 8.x deprecated, 9 dropped, 11 preview; SWIG forbidden by test | 9.0+; mixes kicad-python IPC and SWIG `pcbnew` | 8-10, `pcbnew` | file parsing | | Tools | 387 public; default profile = 24 read-only; writes need a profile | 244 registered | analysis, ERC/DRC, device-tree code | review scripts | | Network | JLCPCB public catalog by default; other distributors only with keys; telemetry **off** by default (opt-in OpenTelemetry) | JLCPCB, DigiKey; README advertises paid "Nimrod" service | PartReel downloads (host allowlist) | datasheets, distributors | | Hygiene | CodeQL, OpenSSF Scorecard, gitleaks, SECURITY.md; one maintainer (1,029 commits), repo created 2026-05-31 | active; new development moved to AGPL Konnect | no LICENSE file | plugin.json declares no hooks | | Deps of note | — | pymupdf (AGPL) at runtime | fastmcp | — | **Recommendation:** use **kicad-happy** for review and **kicad-mcp-pro** for edits and exports. Both are MIT. kicad-mcp-pro targets KiCad 10 with no SWIG, is read-only by default, ships cited fab profiles, and is the most active. Pin its version (`kicad-mcp-pro==4.4.0`) and keep the default profile until edits are needed. Use mixelpixx only if KiCad 9 is required. Treat Seeed as all-rights-reserved until it commits a LICENSE file. Konnect and obhox/kicad-mcp are AGPL: run them only as external programs. ## 4. Mechanical + PCB co-design (ECAD to MCAD) - **KiCad itself:** `kicad-cli pcb export step` takes `--board-only`, `--no-components`, `--component-filter` and `--no-dnp`. There are also `brep`, `glb`, `stl`, `xao`, `dxf` (use Edge.Cuts for the outline) and `ipc2581`. KiCad 10's CLI has **no IDF export**. The KiCad 9/10 IPC API needs the GUI and cannot plot or export; KiCad 11 adds headless operation ([KiCad dev docs](https://dev-docs.kicad.org/en/apis-and-binding/ipc-api/for-addon-developers/), [CLI docs](https://docs.kicad.org/10.0/en/cli/cli.html)). kicad-python on PyPI is MIT, version 0.8.0, KiCad 9+. - **text-to-cad:** PR [#518](https://github.com/earthtojake/text-to-cad/pull/518) (open) adds `@pcb` boards-as-code with DRC on every build. #616 (`pcb-dfm` skill) merged into a feature branch stacked on #518. PR #345 (closed, not merged) was a KiCad 10 fixture in which a USB-C connector is blocked by an enclosure wall and then fixed by a source-level cutout. That is exactly our pattern. - **punkfab/circuit-skills:** a `pcb-enclosure-fit` skill co-registers the board STEP with a build123d shell and gates placement on connectors, cutouts and holes. It has no licence, so ideas only. - **Backplane:** KiCad and FreeCAD viewers that show a case assembly beside the agent. MIT; install is `curl | sh`. - **Amagine3D:** designs the enclosure around internal components from requirements. It does not read KiCad files. - **kicadStepUp** (AGPL per its README): FreeCAD workbench that syncs board outlines and models both ways. External only. - **Gap:** no project closes the loop from KiCad outline, connectors and holes, to enclosure, to clearance report, and back-annotation onto the board. ## 5. Knowledge sources | Domain | Source | Licence / terms | Already embedded in | |---|---|---|---| | DfAM | ISO/ASTM 52910 / 52911-1 | paid standard: cite, don't copy | text-to-cad `process-limits.md` (MIT summary citing Hubs, Formlabs, HP MJF, EOS) | | Sheet / laser | [SendCutSend specs JSON](https://cdn.sendcutsend.com/specs/sendcutsend-specs.json) + catalog: 178 materials, k-factor, bend radius, bend deduction, minimum hole and bridge (inches) | vendor data, no licence stated: fetch live and cite | text-to-cad `sendcutsend` | | Sheet / CNC / molding | [Hubs](https://www.hubs.com/guides/sheet-metal-fabrication/) and [Protolabs](https://www.protolabs.com/services/sheet-metal-fabrication/design-guidelines/) guides | copyrighted pages: cite | text-to-cad `dfm` references | | PCB fab | JLCPCB, PCBWay, Eurocircuits, OSH Park, NextPCB capability pages | vendor terms | kicad-mcp-pro `dfm_profiles/*.json` (MIT, with source URLs and pricing coefficients); kicad-happy jlcpcb/pcbway skills | | PCB design | IPC-2221/2222, IPC-7351 | paid: cite only | text-to-cad PR #518 skill cites IPC-2221 widths | | Materials | FreeCAD `.FCMat` cards | CC-BY-3.0 (some older cards LGPL) | FreeCAD | | Polymers | OpenPoly | CC BY 4.0 (research data) | none | | Fasteners | bd_warehouse | Apache-2.0 | none | | Cost | kicad-mcp-pro `dfm_calculate_manufacturing_cost` (area, layers, vias); slicer time and grams from OrcaSlicer G-code | MIT; OrcaSlicer AGPL (external) | kicad-mcp-pro | No open, cited cost model for FDM, sheet metal or CNC turned up in any agent tool (gap). MatWeb has no bulk export; MakeItFrom's terms are (u). ## 6. Benchmarks and evals | Benchmark | What it measures | Licence / access | |---|---|---| | [CADGenBench](https://github.com/huggingface/cadgenbench) (Hugging Face, 2026) | Drawing → STEP generation, plus STEP editing; validity gate, shape, interface and topology scores; 81 fixtures (per pzfreo submission); ground truth private | Apache-2.0 code; [HF leaderboard](https://huggingface.co/spaces/HuggingAI4Engineering/CADGenBench). Best fit for measuring our agent | | [Text2CAD](https://github.com/SadilKhan/Text2CAD) (NeurIPS'24) | Text → sequential CAD | CC BY-NC-SA 4.0 | | [CADPrompt / CADCodeVerify](https://arxiv.org/abs/2410.05340) (ICLR'25) | 200 prompts → CadQuery; point-cloud distance, compile rate | repo has no licence | | [CAD-Recode](https://github.com/filaPro/cad-recode) (ICCV'25) | point cloud → CadQuery | CC BY-NC 4.0 | | [cadrille](https://github.com/col14m/cadrille) | multimodal reconstruction | Apache-2.0 | | [Text2CAD-Bench](https://arxiv.org/abs/2605.18430) | 600 examples, 4 levels, novice and expert prompts | paper CC BY 4.0; data licence (u) | | P3D-Bench (arXiv 2606.11152), CADBench (2605.10873), BenchCAD (2605.10865), RealCADBench (2609.03773), [CAD Arena](https://cadarena.dev/) | various | (u) | | [PCBWorld](https://github.com/LGAI-Research/PCBWorld) (arXiv 2607.05915) | KiCad-grounded routing for agents and RL; 679 real boards; 8 engine-checked metrics | BSD-3-Clause | | PCB-Bench (ICLR'26), OmniRouting (2608.04434) | LLM placement and routing | (u) | No benchmark covers **enclosure fit around a real board**, DFM correctness or fastener/cable checks. Our J501 session could seed one: the vendor STEP is fetched by URL and hash, never committed. ## 7. Recommendation **Adopt now** 1. text-to-cad plugin pinned to a release, with `CADGEN_TELEMETRY=0`, `DO_NOT_TRACK=1` and `CADGEN_UPDATE_CHECK=0` in the environment. It provides the CAD runtime, drawings, DfAM, slicing, Bambu and SendCutSend. 2. kicad-happy (review) plus kicad-mcp-pro pinned (edits and exports), and `kicad-cli pcb export step` for the board model. 3. build123d-mcp or agentcad as an optional inspection loop; both are Apache-2.0 and have CADGenBench evidence. 4. CADGenBench as the regression eval for generic CAD skill. **Thin add-on repo (cad-agent, MIT)** - `enclosure-around-board` skill: board STEP/KiCad → keep-outs, connector windows, standoffs. - Scalable vendor-assembly clearance report: bounding-box/BVH broad phase, then `closest_points`. - Fastener stack length (bd_warehouse) and cable route with bend-radius check. - Evidence site and PDF check sheet. - `knowledge/` with cited rules, materials and cost. Upstream does not cover any of these. Their contract favours caller-written checks, and their roadmap is PCB, FEA and CAM. **Contribute upstream to text-to-cad** - DfAM hole, min-feature and bridge measurement (documented as unmeasured). - Help with sheet-metal unfold (#614). - Large-PCB-STEP viewer memory fix (#626); our J501 carrier is a reproducer. - A PCB-to-enclosure fit fixture and recipe once #518 lands (successor to #345). - An `inspection-and-validation.md` recipe for many-body clearance with a broad phase. **Licence constraints** - Incorporate code only from MIT, BSD or Apache-2.0 projects, with attribution: text-to-cad, build123d, CadQuery, bd_warehouse, agentcad, build123d-mcp, MAC, kicad-mcp-pro, kicad-happy, KiStack, kicad-python, PCBWorld, CADGenBench. - Never copy code from: flowful-ai/cad-skill (PolyForm Noncommercial), Svetlana cad-agent (custom licence), circuit-skills and Seeed (no LICENSE file), or Text2CAD and CAD-Recode data (NC). - External programs only: CADAM (GPL-3.0); Konnect and obhox/kicad-mcp (AGPL-3.0); kicadStepUp, OrcaSlicer and pymupdf (AGPL); FreeCAD and Cables (LGPL); WireViz and freerouting (GPL); KiCad (GPL). - Vendor data (SendCutSend JSON, fab capability pages) is fetched and cited at run time, not redistributed. --- Source: https://cad-agent.valpatel.com/research/simulation-tools.md # FOSS simulation and optimisation survey for cad-agent (J501 / AGX Orin enclosure) Survey date: 2026-10-26. Licences were checked against each repo's LICENSE/COPYING file (GitHub API or GitLab API) unless marked otherwise. "Last commit" means the newest commit on the default branch at survey time. Docker tags come from the Docker Hub API on the same day. Licence rule used throughout: - **Importing** a GPL/AGPL Python package from our MIT package does not change our source licence. But anyone who distributes the combined program must do so under the GPL, and the FSF treats an import as a combination. So GPL packages stay optional extras or run behind a process boundary. - **Calling** a GPL/AGPL program as a separate process (subprocess or Docker), and exchanging files with it, is ordinary "aggregate" use. It puts no obligation on cad-agent's licence. - AGPL's network clause applies only if we modify the AGPL program and offer it to users over a network. > Existing exposure to flag: cad-agent already does `import gmsh`. Gmsh is GPL-2.0-or-later. Its exception covers combination with Netgen, METIS, OpenCASCADE and ParaView, but not with arbitrary MIT code ([gmsh.info/LICENSE.txt](https://gmsh.info/LICENSE.txt), [PyPI gmsh 4.15.2, "GPLv2+"](https://pypi.org/project/gmsh/)). This is the same situation as foamlib below. Document gmsh as an optional dependency, or call it via its CLI. --- ## 1. 3D topology optimisation from Python | Candidate | Licence (verified) | Maintenance | Install | Fit | |---|---|---|---|---| | **pyMOTO** | MIT ([repo](https://github.com/aatmdelissen/pyMOTO)) | v2.0.1, 2026-05-07; last commit 2026-06-02 ([releases](https://github.com/aatmdelissen/pyMOTO/releases)) | `pip install pymoto[fast]` or `conda install -c aatmdelissen pymoto` ([README](https://github.com/aatmdelissen/pyMOTO#quick-start-installation)) | Best fit. Voxel `VoxelDomain` in 2D and 3D; density filter; robust (eroded/dilated) formulation for minimum length scale; **`OverhangFilter`** (Langelaar AM filter, [example](https://github.com/aatmdelissen/pyMOTO/blob/master/examples/topology_optimization/ex_compliance_overhang.py)); OC, MMA and GCMMA; multigrid-preconditioned CG for 3D; stress constraints; thermal and thermo-mechanical modules (`ex_showcase_thermal.py`, `ex_thermo_mech.py`); `WriteToVTI` to dump the density field every iteration ([io.py](https://github.com/aatmdelissen/pyMOTO/blob/master/pymoto/modules/io.py)). Modules carry their own sensitivities, so non-design regions are just a mask or mapping on the design vector. | | PyTopo3D | MIT ([repo](https://github.com/jihoonkim888/PyTopo3D)) | v0.3.0, 2026-06-16 ([PyPI](https://pypi.org/project/pytopo3d/)) | `pip install pytopo3d` (`[gpu]` extra uses CuPy) | Simple 3D SIMP on voxels, with "obstacle" (non-design) regions from JSON and optional GPU. The README mentions no overhang or robust filter. A good, small fallback or reference. | | dl4to | Apache-2.0 ([repo](https://github.com/dl4to/dl4to)) | Last commit 2024-11-19; not on PyPI | `pip install git+https://github.com/dl4to/dl4to` | PyTorch voxel SIMP plus deep-learning research tooling. Stale. | | FEniTop | **GPL-3.0** ([repo](https://github.com/missionlab/fenitop)) | Last commit 2024-11-01; pinned to **dolfinx 0.7.3** | Manual on a FEniCSx env | Works on unstructured tets with a PDE filter, OC/MMA and MPI. Stale and pinned to an old dolfinx. GPL, so it can only run as a separate process. | | dolfinx (roll our own) | LGPL-3.0 ([repo](https://github.com/FEniCS/dolfinx)) | v0.11.0, 2026-06; active | Docker `dolfinx/dolfinx:v0.11.0` ([hub](https://hub.docker.com/r/dolfinx/dolfinx)) or conda-forge | The right base if we later need tets and MPI scale. LGPL is fine to import. | | jax-fem | **GPL-3.0** per the LICENSE file ([repo](https://github.com/deepmodeling/jax-fem)). The PyPI classifier wrongly says BSD ([PyPI](https://pypi.org/project/jax-fem/)). | v0.0.12, 2026-06; active | pip | Differentiable FE on GPU (JAX), with topopt examples. GPL, so it can only run as a separate process. | | TopOpt_in_PETSc | **Unclear**. GitHub detects no licence; `main.cc` says "The authors reserves all rights" but the repo also ships `lesser.txt` (LGPL text) ([repo](https://github.com/topopt/TopOpt_in_PETSc)) | Last commit 2026-10-17 | Build against PETSc + MPI | Scales to very large structured grids in C++. Avoid until the licence is clarified. | | beso (CalculiX) | LGPL-3.0 ([repo](https://github.com/calculix/beso)) | Last commit 2025-04-03 | Python scripts + CalculiX ≥2.17 + FreeCAD | BESO on tets via CalculiX `.inp` files. Works, but it's file-driven and needs FreeCAD. | | scikit-fem topopt example | BSD-3 ([repo](https://github.com/kinnala/scikit-fem)) | Active (12.0.2, 2026-06) | Already installed | **None found**: docs/examples ex01–ex56 contain no topology-optimisation example. We would have to write SIMP + MMA ourselves on top of our existing P2-tet FEA. | | OpenFOAM adjoint (ESI) | GPL-3 | v2606 | Docker (see §3) | `adjointOptimisationFoam` has `topologyOptimisation` tutorials for **fluid** topology ([tree](https://gitlab.com/openfoam/core/openfoam/-/tree/master/tutorials/incompressible/adjointOptimisationFoam)). This could later shape vents and ducts; it's not for structure. | | SU2 | LGPL-2.1 | v8.5.0 | — | Has a `fea_topology` test case ([TestCases](https://github.com/su2code/SU2/tree/master/TestCases)). Niche. | **Recommendation:** use **pyMOTO** (MIT, importable) as the structural and thermal topology engine on a voxel domain built from our CadQuery solids: - **Non-design regions:** fix them to solid (bosses, insert pockets, port frames, the cooler seat) or to void (cooler, board, connector keep-outs, airflow paths). - **Printability:** add robust/density filtering for minimum feature size and `OverhangFilter` with the build direction = enclosure Z. - **Size:** the enclosure is 206×181×112 mm. That is about 4.2 M voxels at 1 mm and about 0.52 M at 2 mm, so optimise per part or per panel (floor, roof, ribs) at 1–2 mm with pyMOTO's multigrid CG. - **Back to CAD:** convert the result with marching cubes (scikit-image or VTK). Then verify it with our existing scikit-fem P2-tet FEA and a real slice (§5). - **Fallback:** keep PyTopo3D in reserve. If tets are ever needed, build on dolfinx (LGPL) rather than FEniTop. ## 2. Parametric shape/size optimisation drivers (expensive, multi-objective) | Candidate | Licence | Latest | Notes | |---|---|---|---| | **Optuna** | MIT ([repo](https://github.com/optuna/optuna)) | v5.0.0, 2026-09-07 ([release notes](https://github.com/optuna/optuna/releases/tag/v5.0.0)) | v5 made `GPSampler` stable, with **qLogEHVI / qLogCEHVI**: batch multi-objective Bayesian optimisation with constraints. TPE is now the default multi-objective sampler. A new core `trial.set_constraint()` API was added. Storage is RDB or Journal, so runs are resumable and parallel, and it includes Pareto plots. | | pymoo | Apache-2.0 ([repo](https://github.com/anyoptimization/pymoo)) | 0.6.2, 2026-06-28 | NSGA-II/III, MOEA/D, constraint handling, decision making. Better suited to cheap surrogates than to expensive CFD. | | Ax / BoTorch | MIT ([Ax](https://github.com/facebook/Ax), [BoTorch](https://github.com/meta-pytorch/botorch)) | Ax 1.3.1 (2026-06-09), BoTorch 0.18.1 (2026-06-08) | The most capable Bayesian optimisation (qNEHVI, multi-fidelity), but heavier (PyTorch). | | OpenMDAO | Apache-2.0 ([LICENSE.txt](https://github.com/OpenMDAO/OpenMDAO/blob/master/LICENSE.txt)) | 3.45.1, 2026-09-10 | Gradient-based MDO framework. Worth it only once we have adjoint gradients, e.g. pyMOTO or DAFoam. | | scipy.optimize | BSD-3 ([repo](https://github.com/scipy/scipy)) | — | Single-objective local optimisers (SLSQP, COBYQA, differential_evolution). Fine for 1–3 parameter refinements. | **Recommendation:** use **Optuna 5 + GPSampler** as the outer driver over CadQuery parameters (wall thickness, rib count and height, vent area and position, infill). Run it with three objectives and a temperature constraint: - **Objectives:** grams from the real slicer, compliance or max displacement from FEA, and max TTP temperature from the thermal model. - **Constraint:** `trial.set_constraint` with T_wall < HDT − margin. - **Multi-fidelity:** do the bulk of the search on the fast thermal model (§3B), then re-score Pareto candidates with full CHT. Add pymoo only to run NSGA-II on a fitted surrogate. ## 3. CFD + conjugate heat transfer ### OpenFOAM: ESI/OpenCFD vs Foundation | | ESI / OpenCFD (openfoam.com) | Foundation (openfoam.org) | |---|---|---| | Licence | GPL-3 ([v2606 news](https://www.openfoam.com/news/main-news/openfoam-v2606)) | GPL-3 ([COPYING](https://github.com/OpenFOAM/OpenFOAM-dev/blob/master/COPYING)) | | Current | **v2606** (June 2026); source moved to [gitlab.com/openfoam/core/openfoam](https://gitlab.com/openfoam/core/openfoam) | **v14**, 14 Jul 2026 ([download](https://openfoam.org/download/), [OpenFOAM-14](https://github.com/OpenFOAM/OpenFOAM-14)) | | Steady CHT solver | `chtMultiRegionSimpleFoam` (tutorial dir `tutorials/heatTransfer/chtMultiRegionSimpleFoam`) | `foamMultiRun` with `fluid` + `solid` modules (e.g. [circuitBoardCooling Allrun](https://github.com/OpenFOAM/OpenFOAM-14/blob/master/tutorials/multiRegion/CHT/circuitBoardCooling/Allrun)); single-region buoyant flow is `foamRun -solver fluid` | | Closest tutorial | **`cpuCabinet`** ([tree](https://gitlab.com/openfoam/core/openfoam/-/tree/master/tutorials/heatTransfer/chtMultiRegionSimpleFoam/cpuCabinet)): snappyHexMesh multi-region. Regions are `domain0` (air), `v_CPU` (solid with 100 W `scalarSemiImplicitSource` on `h`) and `v_fins` (heatsink). The fan is an **MRF zone** (`MRFProperties`, ω = 209.44 rad/s). This is almost exactly our problem. | `circuitBoardCooling` (baffles), `heatExchanger` (porous region + inter-region heat transfer), `heatedDuct`, `hotWire` (snappy) ([tree](https://github.com/OpenFOAM/OpenFOAM-14/tree/master/tutorials/multiRegion/CHT)) | | Fan models | `fan` cyclic-baffle jump BC with modes velocity / uniformVelocity / **volumeFlowRate** / nonDimensional ([fanFvPatchField.H](https://gitlab.com/openfoam/core/openfoam/-/blob/master/src/finiteVolume/fields/fvPatchFields/derived/fan/fanFvPatchField.H)); `fanPressure`; `swirlFanVelocity`; **`fanMomentumSource`** fvOption: Δp(Q) fan curve applied in a cellZone ([header](https://gitlab.com/openfoam/core/openfoam/-/blob/master/src/fvOptions/sources/derived/fanMomentumSource/fanMomentumSource.H)); MRF; `actuationDiskSource`; `explicitPorositySource` | `fanPressureJump` and `fanPressure` BCs ([src](https://github.com/OpenFOAM/OpenFOAM-14/tree/master/src/finiteVolume/fields/fvPatchFields/derived)); fvModels `actuationDisk`, `radialActuationDisk`, `porosityForce`, `interRegionHeatTransfer`, `heatSource` ([src/fvModels](https://github.com/OpenFOAM/OpenFOAM-14/tree/master/src/fvModels)); MRF ([mixerVessel2DMRF](https://github.com/OpenFOAM/OpenFOAM-14/tree/master/tutorials/fluid/mixerVessel2DMRF)) | | Docker | `opencfd/openfoam-run:2606` (runtime only, 2026-06-23). `opencfd/openfoam-default:2512` / `latest` has tutorials and source; **no 2606 tag yet** ([run](https://hub.docker.com/r/opencfd/openfoam-run/tags), [default](https://hub.docker.com/r/opencfd/openfoam-default/tags)). Starter script: [openfoam-docker](https://dl.openfoam.com/source/latest/openfoam-docker). | **No official images after v11**: the newest on Docker Hub is `openfoam/openfoam11-paraview510`, last updated 2024-06 ([hub](https://hub.docker.com/u/openfoam)). v14 is shipped as Ubuntu apt packages (needs sudo) or source. | ### Other solvers | Candidate | Licence (verified) | Status | CHT / fan fit | |---|---|---|---| | Elmer FEM | GPL-2.0+; ElmerSolver library and some modules LGPL-2.1, most solver modules GPL ([LICENSE.md](https://github.com/ElmerCSC/elmerfem/blob/devel/LICENSE.md), [licence policy](https://github.com/ElmerCSC/elmerfem/tree/devel/license_texts)) | release-26.2 (2026-04-28); active. Docker build repo [ElmerCSC/elmerfem-docker](https://github.com/ElmerCSC/elmerfem-docker) | Strong for conduction, thermal and multiphysics on gmsh tets. Fan-driven turbulent air needs more effort than OpenFOAM. A good **solid-side** thermal and thermo-mechanical solver. | | SU2 | LGPL-2.1 ([LICENSE.md](https://github.com/su2code/SU2/blob/master/LICENSE.md)) | v8.5.0 (2026-04-27) | Has `coupled_cht` and `solid_heat_conduction` test cases ([TestCases](https://github.com/su2code/SU2/tree/master/TestCases)). Aero-oriented, with no snappy-style STL meshing. Not recommended here. | | Code_Saturne | GPL-2.0 ([repo](https://github.com/code-saturne/code_saturne)) | v9.2.0; docker `simvia/code_saturne:9.2.0` (2026-07-13) ([hub](https://hub.docker.com/r/simvia/code_saturne)) | Industrial-grade finite-volume solver with CHT. Smaller ecosystem for STL → mesh. Second choice. | | XLB (Autodesk) | Apache-2.0 ([LICENSE](https://github.com/Autodesk/XLB/blob/main/LICENSE)) | v0.3.1 (2026-01-12); `pip install "xlb[warp]"` | GPU LBM (Warp/JAX), differentiable. The README mentions **no thermal/CHT**, so it's isothermal airflow only. | | lettuce | MIT ([repo](https://github.com/lettucecfd/lettuce)) | 0.3.0 (2026-10-06); `pip install lettucecfd` (the PyPI name `lettuce` is an unrelated package) | PyTorch GPU LBM; no thermal in the README. Research grade. | | OpenLB | GPL-2.0 ([LICENSE](https://gitlab.com/openlb/release/-/blob/master/LICENSE)) | 1.9r0 (2025-12-18) ([download](https://www.openlb.net/download/)) | C++ GPU LBM with thermal examples (`examples/thermal`: Rayleigh–Bénard, porous plate) and a "Conjugate Heat Transfer" showcase listed on the site (not inspected). Works only as a separate process. | | Palabos | **AGPL-3.0** ([COPYING](https://gitlab.com/unigespc/palabos/-/blob/master/COPYING)) | Active (2026-07) | Works only as a separate process. No advantage over OpenFOAM for our case. | | FluidX3D | Non-commercial licence | — | **Rejected** per the brief. | | DAFoam | GPL-3 ([LICENSE.md](https://github.com/mdolab/dafoam/blob/main/LICENSE.md)) | v5.1.1; docker `dafoam/opt-packages:v5.1.1` | Discrete adjoint of OpenFOAM + OpenMDAO. A future option for gradient-based vent shape optimisation. | | CfdOF (FreeCAD) | LGPL-3 ([repo](https://github.com/jaheyns/CfdOF)) | Active | A GUI case generator for snappy and cfMesh, porous regions, buoyant flow. The README shows no multi-region CHT. A useful reference for writing snappy dictionaries. | ### Python case-generation helpers - [foamlib](https://github.com/gerlero/foamlib): **GPL-3.0**, v1.9.0 (2026-10-19). A modern parser/writer with an async runner. - [PyFoam](https://pypi.org/project/PyFoam/): **GPL**, 2026.6. - [fluidfoam](https://pypi.org/project/fluidfoam/): GPL-3.0-or-later. - `ofpp`: MIT, but stale (2023). None of the good options is permissive. **Recommendation:** - Generate the dictionaries ourselves from MIT Jinja/string templates. FoamFile syntax is simple, and the `cpuCabinet` case is a template. - Read results with PyVista's `OpenFOAMReader` (MIT). - Or confine foamlib to an optional GPL extra that runs as a separate process. ### Recommended primary path: steady CHT, a few M cells, 24 cores **ESI OpenFOAM v2606 in Docker (`opencfd/openfoam-run:2606`; use `openfoam-default:2512` for tutorials), `chtMultiRegionSimpleFoam`, starting from `cpuCabinet`.** Rationale: - It's a near-identical tutorial. - It has the richest fan options: `fan` BC in `volumeFlowRate` mode, or `fanMomentumSource`, both driven by the datasheet P–Q curve; MRF if the blades are modelled. - Official Docker images exist and don't need sudo. The Foundation route would need apt (sudo) or a source build. Pipeline: 1. CadQuery exports one STL per region: fluid = enclosure interior minus solids; solids = TTP/module block with a volumetric heat source, heatsink fins + base, and heatpipes as high-k solids; optionally the PLA walls as a solid region so wall temperature is resolved. 2. `blockMesh` → `surfaceFeatureExtract` → `snappyHexMesh` → `splitMeshRegions -cellZones` → `decomposePar -allRegions` → `mpirun -np 24 chtMultiRegionSimpleFoam -parallel`. This is the cpuCabinet `Allrun` / `Allrun.pre` sequence. 3. Model heatpipes as anisotropic or effective high-conductivity solids. This is my engineering assumption and needs calibration; no source verified. 4. Run time for 2–5 M cells on 24 cores is unmeasured; plan on hours, not minutes. ### Fast low-fidelity path for optimisation loops - **(a) Thermal resistance network + fan operating point (milliseconds).** Use the fan P–Q line from the datasheet (§6). Use system impedance from the heatsink and vent pressure-loss correlations in [`fluids`](https://github.com/CalebBell/fluids) (MIT) and fin convection from [`ht`](https://github.com/CalebBell/ht) (MIT). This gives T_TTP and outlet air temperature per design. - **(b) scikit-fem steady conduction** in the printed walls (already in cad-agent), with Robin BCs (h, T_air) taken from (a) or from one calibration CHT run. This checks wall temperature against HDT. - **(c) Coarse single-region OpenFOAM (~0.3–0.5 M cells, minutes; my estimate).** Model the heatsink as a porous zone (`explicitPorositySource`, Darcy–Forchheimer fitted to the fan/heatsink Δp) with a heat source, and the fan as `fanMomentumSource`. Use it to rank vent layouts. - Calibrate (a)–(c) against 2–3 full CHT runs. - XLB on the RTX 3080 is an option for isothermal vent-flow screening only. ## 4. Post-processing, visualisation, animation - **PyVista**: MIT, v0.49.1 (2026-10-11) ([repo](https://github.com/pyvista/pyvista)). `Plotter` has `open_movie` / `open_gif` / `write_frame`, `orbit_on_path`, `export_html`, **`export_vtksz`** (vtk.js scene), **`export_gltf`** (three.js / model-viewer), `export_vrml`, `export_obj` and `save_graphic`. `DataSet.streamlines` / `streamlines_from_source` produce streamlines ([plotter.py](https://github.com/pyvista/pyvista/blob/main/pyvista/plotting/plotter.py)). It reads OpenFOAM cases directly. MP4/WebM encoding uses [imageio-ffmpeg](https://pypi.org/project/imageio-ffmpeg/) (BSD-2). Headless rendering uses EGL/OSMesa VTK; we have an RTX 3080 and the Docker nvidia runtime. - **ParaView / pvpython**: BSD-3 ([conda-forge paraview 6.2.0](https://anaconda.org/conda-forge/paraview)). Since 6.0 there is **one Linux binary** that picks GLX, EGL or OSMesa at runtime (`--opengl-window-backend`, `VTK_DEFAULT_OPENGL_WINDOW`). There is no separate headless package ([6.0 release notes](https://www.kitware.com/paraview-6-0-0-release-notes/)). Get it as the tarball `ParaView-6.2.0-MPI-Linux-Python3.12-x86_64.tar.gz` ([files/v6.2](https://www.paraview.org/files/v6.2/)), which needs no sudo, or via conda-forge. `kitware/paraview` on Docker Hub has only CI tags, so there is **no official runtime image** ([hub](https://hub.docker.com/r/kitware/paraview/tags)). - **trame**: Apache-2.0, v4.0.0 (2026-09-09) ([repo](https://github.com/Kitware/trame)). Base images are `kitware/trame` (e.g. `uv-cuda`, `conda-glvnd`) ([hub](https://hub.docker.com/r/kitware/trame/tags)). Use it for live interactive dashboards. For static, shareable web reports, PyVista's `export_vtksz` with [vtk.js](https://github.com/Kitware/vtk-js) (BSD-3) or `export_gltf` with three.js is lighter. **Recommendation:** - **PyVista** for all scripted images and animations: temperature slices, streamline tubes coloured by T or |U|, density-evolution flipbooks from pyMOTO `WriteToVTI` frames, written to MP4 (H.264) + WebM + GIF. - **glTF/vtksz** for embedded 3D viewers in an HTML report. Keep the report standard: per run, a `report.html` + `summary.json` + PNG/SVG figures + MP4. - **ParaView** tarball only for heavy, ad-hoc work. ## 5. Slicer CLIs for real grams and print time All three slicers are **AGPL-3.0**, so we call them as subprocesses only ([BambuStudio](https://github.com/bambulab/BambuStudio), [OrcaSlicer](https://github.com/OrcaSlicer/OrcaSlicer), [PrusaSlicer](https://github.com/prusa3d/PrusaSlicer)). Latest: Bambu Studio GitHub release v02.08.02.61; the installed snap is **02.08.04.57 (beta channel)**. OrcaSlicer v2.4.2. PrusaSlicer 2.9.6. ### Bambu Studio (tested here, headless, works) The working invocation: ``` bambu-studio --slice 0 --arrange 1 --orient 0 \ --load-settings "machine.json;process.json" \ --load-filaments "filament.json" \ --outputdir OUT --export-3mf out.3mf model.stl # or a .3mf project ``` - Machine: `Bambu Lab P1S 0.4 nozzle`. Process: `0.20mm Standard @BBL X1C`, which lists P1S 0.4 in `compatible_printers`. Filament: `Bambu PLA Basic @BBL P1S 0.4 nozzle`. All are from `/snap/bambu-studio/current/opt/bambu-studio/resources/profiles/BBL/`. - **Gotcha 1 (verified):** the system JSONs use `inherits`. Passed raw, they leave `filament_density` = 0, so the slicer reports **0.00 g**. You must flatten the inheritance chain (merge parent JSONs by `name`) before passing the files. After flattening, a 20 mm cube gave **3.75 g, 542 s** (PLA, 2 walls, 20 % infill). - **Read grams from:** - `OUT/result.json` → `sliced_plates[i].filaments[j].total_used_g` and `total_predication` (s) - `out.3mf` → `Metadata/slice_info.config` → `` and `` - `plate_1.gcode` header → `; total filament weight [g] : 3.75` and `; model printing time:` - **Gotcha 2:** the gcode header's `total filament volume [cm^3]` actually printed mm³ (2974 for 2.97 cm³). - **Gotcha 3:** a "Wayland: Failed to connect to display" error is logged and is harmless. `return_code` was 0. - **Gotcha 4:** snap confinement. I ran in `~/snap/bambu-studio/common/`. Files in host `/tmp` are probably not visible to the snap (not tested). - Other useful flags (from `--help`): `--export-slicedata`, `--mstpp`, `--no-check`, `--info`, `--export-png`, `--debug 0-5`, `--pipe`. ### OrcaSlicer It's the same CLI lineage: `orca-slicer --slice 0 --load-settings "machine.json;process.json" --load-filaments f.json --outputdir OUT --export-3mf out.3mf model.stl`. Flags use hyphens, `--slice 0` means all plates, and the machine file comes before the process file ([Orca wiki CLI](https://www.orcaslicer.com/wiki/cli/cli_mode), [actions](https://www.orcaslicer.com/wiki/cli/cli_actions); third-party reference [printago](https://printago.io/blog/orca-slicer-cli-reference)). Install via the AppImage or flatpak (no sudo). Not tested here. ### PrusaSlicer From the source option table ([PrintConfig.cpp](https://github.com/prusa3d/PrusaSlicer/blob/master/src/slic3r-shared/src/Slic3r/Biz/Config/Legacy/PrintConfig.cpp)): - Options: `--export-gcode|-g`, `--load ` (repeatable), `--output|-o`, `--info`, `--export-3mf`, `--datadir`, `--printer-profile`, `--print-profile`, `--material-profile`, `--query-printer-models`, `--query-print-filament-profiles`. - Example: `prusa-slicer -g --load p.ini --load f.ini --load m.ini -o out.gcode model.stl`. Read `; filament used [g] = …` from the gcode footer (from memory, not re-verified). - No P1S profile was verified. **Recommendation:** use the installed Bambu Studio snap as the ground truth for filament grams and print time, with flattened P1S profiles cached in the repo. Use OrcaSlicer as a cross-check. ## 6. Thermal reference data **Jetson AGX Orin module.** Sources: [datasheet DS-10662-001 v1.8, Sep 2025, mirror](https://static.generation-robots.com/media/Jetson-AGX-Orin-Data-Sheet.pdf) and [Jetson Linux r36.4 power/thermal page](https://docs.nvidia.com/jetson/archives/r36.4/DeveloperGuide/SD/PlatformPowerAndPerformance/JetsonOrinNanoSeriesJetsonOrinNxSeriesAndJetsonAgxOrinSeries.html). - **Module power (datasheet):** - JAO 64GB: 15 W / 30 W / 50 W, "up to 60 W" - JAO 32GB: 15 W / 30 W / 40 W, "up to 40 W" - Industrial: 15 / 35 / 60, up to 75 W - **nvpmodel modes (r36.4):** - 64GB: MAXN, 15 W, 30 W (default), 50 W - 32GB: MAXN, 15 W, 30 W (default), 40 W - **TTP (datasheet):** operating range −25 to **80 °C max** for JAO; −40 to 85 °C for JAOi. Module is 100 × 87 × 16 mm. - **SoC thresholds (r36.4):** SW throttle 99 °C, HW throttle 103 °C, SW shutdown 104.5 °C, HW shutdown 105 °C. The devkit fan "cool" profile tops out at 2900 RPM. - **Thermal Design Guide (TDG-10943-001):** v1.1 is at [Mouser](https://www.mouser.com/pdfDocs/Jetson_AGX_Orin_Series_TDG-10943-001_v11.pdf), but it is **bot-protected and I could not read Table 2-1 or its figures**. Forum posts reference v1.2 and v1.3, and confirm that θ_jp is given for 32GB/64GB but "TBD" for Industrial ([forum](https://forums.developer.nvidia.com/t/agx-orin-industrial-missing-thermal-resistance-values-in-tdg/278394)). **Unverified:** a third-party claim of a 60 W "MAXN SUPER" mode for the 32GB module. **Seeed J501 cooler.** The reference cooler in the repo README is [Seeed p-5970](https://www.seeedstudio.com/Aluminum-heatsink-with-Fan-for-Jetson-AGX-Orin-p-5970.html). The page publishes no numeric specs and it 403s to scripts. Seeed hosts a vendor datasheet under the J501 wiki ([WS-RDN-601, 100×87×34 mm](https://files.seeedstudio.com/wiki/reComputer-Jetson/J501/323011387Jetson_AGX_Orin_Heatsink_100x87x34mm-datasheet.pdf)); the repo has a saved copy: - **Fan:** 8015 PWM fan (80×80×15 mm), ball bearing, 5 V, 0.16 A, 2300 RPM ±10 %, 27.4 dB(A). - **Airflow:** **22.90 CFM** at zero static pressure. **Max static pressure 1.55 mmH₂O (≈15.2 Pa)**; the datasheet swaps the two row labels. - **PWM curve:** 25/50/75/100 % → 700/1380/1920/2300 RPM. - **Heat sink:** "copper pipe + aluminium radiator", rated **100–120 W**. - **Heatpipe count is not stated.** - **Height caveat:** the repo models the cooler top 50 mm above the seat (Z40.758 → Z90.758), but the datasheet says 34 mm. Possibly 34 mm of heatsink plus the 15 mm fan on top; measure it. - **Other coolers:** the different Mini J501 heatsink is listed at 110×100×50 mm and 14.1–55.26 CFM ([openelab](https://openelab.io/products/seeed-studio-recomputer-mini-j501-heatsink)). It is not ours. **Printed-material limits (Bambu TDS; third-party-hosted copies; values read with pdftotext):** | Material | Tg (DSC) | HDT 0.45 MPa | HDT 1.8 MPa | Source | |---|---|---|---|---| | PLA Basic (TDS V2.0) | 60 °C | 57 °C | 54 °C | [TDS](https://www.additive-x.com/shop/mpattachments/file/viewonline/id/494/product_id/2236) | | PETG Basic (V2.0) | 68 °C | 69 °C | 65 °C | [TDS](https://www.additive-x.com/shop/mpattachments/file/viewonline/id/580/product_id/2330) | | PETG HF (V1.0) | 66 °C | 69 °C | 62 °C | [TDS](https://botland.com.pl/img/art/inne/25540_karta_produktu.pdf) | With the TTP allowed up to 80 °C and the fan exhausting warm air, PLA within a few cm of the heatsink, the exhaust path or the cooler clamp is marginal. Use PETG (or better) for parts that carry the cooler, and treat **~50 °C PLA / ~60 °C PETG sustained wall temperature under load** as design limits. Those limits are my margin choice, not a datasheet value. Creep under clamp load is a separate, unmodelled risk. ## Existing projects combining CAD + TO + CFD for 3D printing There is no single mature FOSS project that does CadQuery → topology optimisation → CHT CFD → slicer. The closest building blocks: - **FreeCAD** (LGPL-2.1) + **CfdOF** (LGPL-3), plus FreeCAD FEM + **beso** (LGPL-3): a GUI-centric equivalent. - **DAFoam** (GPL-3) + OpenMDAO: adjoint CFD shape optimisation. - **ESI `adjointOptimisationFoam`**: fluid topology optimisation. - **pyMOTO**: thermal and structural topology optimisation with an AM overhang filter. Reuse the ESI `cpuCabinet` case, pyMOTO examples and Optuna as templates, rather than adopting a framework. ## Could not verify - TDG Table 2-1 and figures (PDF blocked). - Heatpipe count. - The fan P–Q curve beyond its two endpoints. - PrusaSlicer's gcode-footer key in the current version. - OrcaSlicer flags on this machine (not installed). - OpenLB's CHT showcase details. - CHT run times. - Whether ESI images include ParaView. --- Source: https://cad-agent.valpatel.com/skills/cad-motion-validation/SKILL.md # Validate the rendered mechanism A CAD interference sweep does not validate a browser's scene graph. Establish independent mechanical intent, capture the actual rendered transforms, and compare them before claiming the simulation is correct. 1. Inventory all moving joints and components, including shafts/rotors, stationary housings, feed mechanisms, helper geometry and scene attachments. Record ownership, units, axis handedness, home datums and parent chains from CAD source or inspected geometry. Do not take the expected pivots from the suspect animation manifest. 2. Read [the trace protocol](https://github.com/Valpatel/cad-agent/blob/dev/skills/cad-motion-validation/references/trace-protocol.md). Build a reference with at least four noncoplanar landmarks per component. Drive the real renderer using `cad-agent motion-trace reference.json --poses-only`, then capture actual mesh vertices through its current world matrices in the common assembly frame, in mm. 3. Run `cad-agent motion-trace reference.json capture.json --output motion-report.json`. Inspect the worst-point, pivot-anchor and radial errors. Compare axes to physical shaft/bearing geometry; rest-pose agreement and rigid within-mesh distances alone cannot catch a wrong orbit. Keep fixed housings attached to their support. 4. Add captures for firing/operation, combined independent joints, stop/start, repeated cycles and scene transitions. Reproduce a wrong pivot with correct home placement and require failure. Also exercise units, axis/sign, lost-parent and ownership errors. Keep regression checks in the existing product build/test harness. 5. Pair kinematic checks with CAD motion/containment gates and visual inspection of the actual published renderer. Record input/export hashes, tolerance, sample density, untested events and independent reference provenance. A passing trace says nothing by itself about continuous clearance, loads, physical fit or hardware safety. Use the repository's normal independent review and deployment process. This skill adds no publication permission. --- Source: https://cad-agent.valpatel.com/skills/cad-pr-review/SKILL.md # Pull request review An author cannot review their own change: they read what they meant, not what they wrote. Every PR gets a review by an agent or person that did not write it, and the review lives on the PR, where anyone can see it later. ## As the author 1. **Make the PR reviewable.** Description: what and why, how it was checked (commands and their results, the real project it was tried on, renders or reports), effect on other projects, and `Closes #`. For geometry changes, run `cad-agent all` first. Every row passes, "Holes clear" included, and you have walked [docs/common-issues.md](https://cad-agent.valpatel.com/docs/common-issues.md). Push everything; the reviewer reads GitHub and the branch, not your session. 2. **Ask for the review.** In Claude Code, spawn the `cad-pr-reviewer` subagent with the PR URL and the checkout path. In Codex, start a separate session with the `cad-pr-reviewer` skill. Give it the PR, not your conclusions: a reviewer told what to find tends to find it. 3. **Answer every comment on the PR.** Fix it and reply with the commit (`Fixed in : ...`), or explain why not. Then resolve the thread: ```bash gh api repos///pulls//comments//replies -f body="Fixed in : ..." gh api graphql -f query='mutation{resolveReviewThread(input:{threadId:""}){thread{isResolved}}}' # thread ids: gh api graphql -f query='query{repository(owner:"",name:""){pullRequest(number:) # {reviewThreads(first:50){nodes{id isResolved comments(first:1){nodes{databaseId body}}}}}}}' ``` 4. **Merge only under the repo's rules**: CI green, a review exists, every thread resolved, and the user's go-ahead where the repo requires it (cad-agent: the user asks; product repos say in their AGENTS.md). Merge commits, not squash, unless the repo says otherwise. After the merge, check that the linked issues closed and tick the tracking issue (`cad-work-tracking`). ## As the reviewer - Read the diff (`git diff origin/...HEAD` in a checkout of the branch, or `gh pr diff `), the PR text and the linked issue. Do not edit, commit or push to the branch. - **Verify before you post.** Run the tests that cover the change; for a claimed bug, reproduce it with a small script. Report only what you checked. Mark severity: blocking, minor, nit. - For CAD and simulation changes, check the evidence, not only the code: - geometry: does the exported STEP/STL match the claim (bounds, volume, clearance numbers in the reports)? - physical assumptions stated and sourced: directions (fan flow, gravity, load), units, datum and orientation of any photo or drawing fit, which values are measured and which assumed; - simulations: converged and steady, energy or force balance closed, mesh dependence acknowledged; - nothing claims more than CAD can show (fit, strength and temperature are predictions until tested); - the [common-issues index](https://cad-agent.valpatel.com/docs/common-issues.md), every row: each automatic check (for example "Holes clear") present in the report, passing and current. If one is missing, run it yourself without writing into the checkout (`cad-agent holes --out /tmp//holes.json`). Each review-only row is checked by looking at the model and named in the summary. A mistake the index does not list is a finding, and it is added to the index. - Post inline comments on the exact lines (`gh api repos///pulls//comments` with `commit_id`, `path`, `line`, `side=RIGHT`), then one summary review (`gh pr review --comment --body ...`) that says plainly whether anything is blocking. Do not approve or merge unless the repo's rules give the reviewer that role. - Finish with a list of findings (file:line, severity, one sentence) for the author. --- Source: https://cad-agent.valpatel.com/skills/cad-remote-runs/SKILL.md # Long runs on a compute host Heavy runs (OpenFOAM CFD, FEA sweeps, topology optimisation, `cad-agent all`) on the workstation the agents share can exhaust its memory and crash every session on it. Run them on a compute host, detached, and write them down where another computer can find them. ## Before the run - **Pick the host by need**: cores and memory for the solver, a GPU only if the tool uses one, Docker for OpenFOAM. Check its load first (`uptime`, `free -g`); other people's jobs may be running there. - **Give it the code from git**, not a hand copy, where possible: clone the repo there and `git fetch && git checkout ` of your pushed branch. If you must copy a working tree (uncommitted changes, large untracked references), use `rsync -a` with excludes for virtualenvs, caches and run folders. Pull back anything the host produced before you copy to it again. Use `--delete` only right after such a pull (it removes remote files that are not in your copy, including results newer than it); without it, files you deleted locally stay on the host. - **Give it its own environment** (a virtualenv from the project's pinned requirements, `pip install -e` of the cad-agent checkout or version the project uses). Record which cad-agent commit it runs. ## Starting it Detach it from the ssh session and the agent, and make the log say when it is done: ```bash ssh 'cd && mkdir -p build && (setsid nohup nice -n 5 bash -c " > build/.log 2>&1; echo RUN-DONE rc=\$? >> build/.log" < /dev/null > /dev/null 2>&1 &)' ``` Then **record it in the issue** right away (see `cad-work-tracking`): `: (commit ), log , done when "RUN-DONE", results in , collect with `. ## While it runs - Watch it from the agent with a poll every few minutes (`ssh 'tail -n 3 '`) or the harness's monitor; match the failure markers too (`Traceback`, `Error`, `Killed`, `FAIL`, non-zero `rc=`), not only success. - When watching processes over ssh, anchor patterns so they do not match the ssh command line itself (`ps -eo pid,args | grep "^ *[0-9]* "`, or the `[x]` bracket trick). Stop jobs by PID or process group, never with a broad `pkill -f`. - A finding that changes the inputs (a wrong assumption, a geometry fix) means stop the run, fix, push, restart, and note the stopped run in the issue so nobody collects its stale results. ## After it - Check the result before trusting it: converged and steady, balances closed, the inputs it used are the committed ones (hashes or revision recorded in the result file). - Pull the results back (`rsync -a :/ `), commit them with the command that made them in the message, push, and tick the issue. - Leave the host clean: stop containers you started, delete large scratch case folders you no longer need. --- Source: https://cad-agent.valpatel.com/skills/cad-work-tracking/SKILL.md # Work tracking: assume the session ends in 30 minutes Plan as if this session can stop at any moment. Token budgets run out about every 30 minutes, workstations crash, and disks get reformatted. Anything that exists only in this session's context, in an uncommitted file, in a scratch or `/tmp` directory, on one machine's disk or in an agent's private memory is lost when that happens. **GitHub is the record.** A fresh agent on another computer must be able to continue from the issue, the branch and the PR alone. ## The loop 1. **Find or open the issue first.** Search before opening: `gh issue list --state all --search ""`. Open one per piece of work that will take more than a few minutes: `gh issue create --title "" --body-file `. Write the body with [the template below](#issue-template). A large job gets a tracking issue that links smaller ones. **Then check who holds it and claim it.** Several agents on different tools and machines work the same repos. Read the issue's latest [work-claim comments](#work-claims-sharing-issues-between-agents): if another agent holds an unexpired claim, pick other work or claim a separate scope. Otherwise post a `claim` before changing anything. 2. **Branch from the integration branch and push it at once.** Follow the repo's AGENTS.md / CONTRIBUTING.md: in cad-agent that is a `feat/` worktree from `origin/dev`; in a product repo, often `dev`. Push before you have much to push (`git push -u origin `), so the branch exists remotely from the start. 3. **Open a draft PR early** with `Closes #` in the body: `gh pr create --draft --base `. List in it what is still missing. CI on a draft may fail; say why in the PR. 4. **Commit and push in clean chunks.** One coherent change per commit (it builds, its message says what and why), pushed right away. Never batch an hour of work into one local commit. Generated files are committed only when they are regenerated by the committed sources (no hand-edited exports, no stale evidence). 5. **Checkpoint about every 30 minutes, and before anything long or risky.** A checkpoint is: - commit and push everything worth keeping (WIP commits on your branch are fine; say `WIP` in the subject); - tick the issue checklist and add a short comment: what changed, what is running, the exact next step; - for each run in flight, the host, command, log path and how to collect its results (see `cad-remote-runs`). Ask yourself: "if this session ended now, could someone else continue from GitHub without asking me?" If not, checkpoint. Post it as a work-claim `checkpoint` so it renews your lease (at least once a day). 6. **Close out as you go.** When a PR merges, its `Closes #N` closes the issue; check that it did, tick the tracking issue and comment with the merge commit. Close issues that turned out to be unnecessary, with the reason. Delete your own merged branches and remove your own worktrees (after checking no virtualenv imports from them); never touch another session's branch or worktree. End your claim with `done` (PR, commit, evidence), or `release` with resume notes if you stop before the end. ## Work claims: sharing issues between agents A claim is an issue comment whose first line the tools parse. No host names, user names or private infrastructure: agents are named by a stable pseudonymous tag. Always **post a new comment**; never edit an earlier one. ```markdown **Claimed** by agent `a-7kq2m4xw` until 2026-11-01T19:00Z UTC. Scope: Branch: ``` The first lines of the other actions: ```markdown ``` A checkpoint goes on with what was done and the next step, a release with resume notes, and done with the PR, commit or evidence. | Action | When | Lease | |---|---|---| | `claim` | before starting | until `lease=`, at most 24 h after the comment | | `checkpoint` | progress; at least once per lease | renews `lease=` | | `release` | stopping before the end, with resume notes | none: the claim ends | | `done` | PR merged or evidence posted | none: the claim ends | - **Format.** The tag is `a-` plus eight characters of `[a-z2-7]`. `lease=` is UTC to the minute, `YYYY-MM-DDTHH:MMZ` (no seconds), and is at most 24 h after the comment's own timestamp. - **A claim not refreshed within its lease has expired**: the issue is open for anyone. Daily checkpoints are the price of holding work. - **Who holds a contested issue.** Each agent's run of claims starts with its first `claim` and continues while every following `claim` or `checkpoint` is posted before the previous lease runs out. A gap ends the run; the next comment starts a new one. Of the agents whose latest comment is an unexpired `claim` or `checkpoint`, the one whose current run started first holds the issue. A later agent backs off, or claims a non-overlapping scope and says so. **Re-read the comments after posting a claim**: if an earlier run is still active, post `release`. - A claim coordinates; it is not a lock, a permission or proof of progress. Before continuing someone's expired claim, read its last checkpoint and re-check the branch, PR, runs and side effects. - **A tag names a harness on one machine, not a session.** Parallel sessions on the same machine and tool share a tag, so a claim with your own tag may be another session's. Read its latest checkpoint before acting on it. - Pick any stable tag of the right form and write the comments by hand. Valpatel agents have a helper that derives the tag and posts the comments. ## What must never live only locally - Decisions and their reasons: put them in the issue, the PR description or a doc in the repo. - Measurements and observations from the user (a photo, "the fan blows up", "it measured 68 mm"): record them in the repo (parameters with a note, or a doc) and in the issue, with the date. - Run configurations and results: the command line belongs in the issue; result files belong in the repo if the project tracks them, otherwise attached to the issue or the release. - Lessons: the repo's `lessons/` (cad-agent) or the product's notes folder, not only an agent's memory file. Large or licensed inputs (vendor CAD, datasheets) stay out of git; the repo records where they come from and how to fetch them (a sources list plus a fetch script) so a reformatted machine can rebuild. ## Resuming At the start of a session, or after a crash, rebuild the state from GitHub before touching anything: ```bash gh issue list --state open --assignee @me ; gh issue list --state open --limit 30 gh issue list --state open --search '"work v1" in:comments' # issues with claims: read who holds what gh pr list --state open --author @me git fetch --all --prune && git status -sb git log --oneline --branches --not --remotes # commits on no remote: push them first git stash list ``` Read the tracking issue's latest comment for the next step and the runs in flight; check each run's log on its host before starting it again (it may have finished). The `cad-resume` agent does this and reports a plan. If local commits exist that are not on the remote, push them first. ## Issue template ```markdown **Done** - [x] () **Next** - [ ] **Running** - : ``, log ``; done when ``; collect with `` **Resume:** branch ``, PR #. ``` ## Rules that go with it - Follow the repo's own branch rules: never push to protected branches, never force-push a branch you did not create, merge only when the repo's rules allow (CI green, review done, threads resolved, the user's go-ahead where the repo requires it). - Write issue and PR text for a reader who was not in the session: no "as discussed", no chat references. - Do not post private infrastructure details (host names, addresses, credentials) in public repos. Name a run host by role ("the CFD host") and keep its address in the private notes the team already uses. --- Source: https://cad-agent.valpatel.com/skills/design-process/SKILL.md # Design process: section by section A design that passes every per-part check can still be wrong as an assembly: contents outside the container that should hold them, subassemblies that only touch by coincidence, boxes where a mechanism should be, and nobody who looked. This process makes the design *declared* (what touches, holds, moves and fastens what), *measured* (the gates), *justified* (a decision with the alternatives rejected for each part) and *reviewed* (a separate reviewer with a checklist), one section at a time. References: [`docs/dossier.md`](https://cad-agent.valpatel.com/docs/dossier.md) (the YAML and the build-script declarations), [`docs/gates.md`](https://cad-agent.valpatel.com/docs/gates.md) (what each gate measures), [`docs/review-packet.md`](https://cad-agent.valpatel.com/docs/review-packet.md) (the packet and the checklist), [`docs/design-process-plan.md`](https://cad-agent.valpatel.com/docs/design-process-plan.md) §5 (why). ## Before you start - **Track it, as if the session could end any minute** (token budgets, crashes): one GitHub issue per section or piece of work, a `feat/` branch pushed at once, a draft PR with `Closes #N`. Commit and push at least every 30 minutes, WIP commits included, and leave a checkpoint comment on the issue: done, next, what is running and where. The `cad-work-tracking` skill of the cad-agent agent kit spells this out, where it is installed. - **Long runs go off the shared machine** (`cad-agent all`, the gates on a large assembly, FEA, CFD): run them detached on a compute host and record host role, command, log and done marker in the issue (the `cad-remote-runs` skill, where installed). Where agents share a workstation, one `nice`d job at a time. - **Set `CAD_AGENT_ACTOR`** to your session id. Builds record it; a reviewer's sign-off is refused when it equals the build's. ## The loop, per section ### 1. Frame the section: no geometry yet Write `dossier/sections/.yaml`: its `purpose`, the `requirements` it serves (in `project.yaml`, each with the user's words as `source.quote`), the `interfaces` to its neighbours with a `datum` and an `owner`, and the parts it needs. An interface is a contract: the owner section changes the datum, the other side rebuilds. Open questions become `status: open` decisions. If the model can answer one (a stack height, a screw length, a clearance), compute it and decide; ask the user only what the model cannot know. An open decision blocks sign-off. ### 2. Write each part's card with its geometry The minimum card is three things, in the same commit as the code that makes the part: ```yaml - id: hopper function: Hold the ball store and funnel balls to the feed throat under gravity interfaces: [I7, I8, I9] decisions: - id: D41 decision: Single-wall cone with a 55° floor why: balls roll at 35°; 55° clears the throat without a stirrer alternatives: [{option: stirrer paddle, rejected: adds a motor and a jam mode}] ``` Add the rest when it is known, not before: `material` with `wall_mm` when the process is chosen, `fasteners` when the joint is chosen, `contains` when the part holds something, `loads` when the analysis is set up, `checks` naming the gates and checks that verify it. Leave `status:` out: it is computed. The lint asks for what is missing. ### 3. Declare the geometry facts in the build script Only the code knows which solid is the cavity, where an axis is, where each screw sits: ```python from cadagent.dossier import Axis, part, cavity, joint, fastener, assembly, build @part("hopper", section="S3") def hopper(p): ... @cavity("hopper", "hopper_cavity") # always a declared solid; nothing is derived def hopper_void(p): ... joint("I9", "revolute", parts=("flap", "hopper"), axis=lambda p: Axis(p["pivot"], (0, 1, 0)), range_deg=(0, 70)) fastener("screw_m3x8", clamps="lid", into="insert_0", name="screw_0", via="I7", tool="hex 2.5", at=lambda p: [Axis(p["seat_0"], (0, 0, -1))], length_mm=8, thread_start_mm=3, min_engagement_mm=4) assembly.step(3, fit="lid", onto="hopper", direction="-Z", tool="hex 2.5", fasteners=["screw_0"]) ``` Every part goes in exactly one assembly step with a direction; every fastener in the step that drives it. Model the bought part (the McMaster STEP, the `mcmaster-parts` skill) and the mating connector, not a bounding box. Keep one parameter authority (`cad/parameters.json`); never copy a number into the YAML that the build computes. ### 4. Build, gate and lint, and fix in order ```bash cad-agent gates --build # every gate that applies, then the dossier lint; exit 1 on a failure cad-agent dossier # the per-section status table and the lint findings ``` Fix in this order, rerunning after each group (a fix early in the list often clears findings later in it): 1. **Loader and join errors** (`unknown-id`, `card-without-shape`, `shape-without-card`, `unknown-cavity`): the declarations must agree before any gate means anything. 2. **Connectivity**: floating components and unrealised interfaces first; they are usually a part in the wrong place. 3. **Containment**: contents outside their cavity, contents in the container's wall. 4. **Fasteners**: seat, stack, holes, engagement, tip, length, then tool access. 5. **Assembly access**: coverage, then blocked insertions and tools at their steps. 6. **Motion**: collisions over each joint's range. 7. **Wall**, then the **lint's status rules** (decisions, traces, checks). Then the standard part checks, which every project runs whether or not it has a dossier: `cad-agent holes` (every hole in every part clear of material: build features first and cut holes last) and the rest of `cad-agent all`. Walk [docs/common-issues.md](https://cad-agent.valpatel.com/docs/common-issues.md) for the issues no check covers yet. Never lower a threshold or widen a tolerance to pass. A finding that is not a defect becomes an explained exclusion: `gates.free_parts` (a loose item), `gates.intended_overlaps` (a heat-set insert, a press fit, a screw's thread envelope, which may name the fastener or an instance key) or `gates.ignore_pairs` (variants never fitted together), each with a `reason`. A verdict read as **stale** is not a pass: rerun the gates. A section is done with this step when `cad-agent dossier` shows it `gated`. ### 5. Render the section's review packet ```bash cad-agent review-packet S3 # exports/review/S3/*.png and manifest.json ``` The packet is solid, opposite iso, x-ray, cuts through each cavity (side and plan), joint axis and fastener group, exploded along the steps, access views along the screws, each joint's range ends, and the findings at their witness points, captioned with the section and content hashes. Open every image before you use it: current, lit, showing the feature. ### 6. Critique it yourself, measurements first Read the manifest's `measurements` and `findings` before the images. Then answer every question in `checklist.questions` (yes / no / unclear) from the views it names, and write the answers into the section's `review: {self: ...}` block with the view file each refers to. Do not answer a count, a gap, a wall or an engagement from an image: the gates measured those (`checklist.measured_only`). If an image and a measurement disagree, the measurement wins and the disagreement is a finding (a wrong declaration or a misleading view). Fix what you find and go back to step 4; do not hand over a section you would not sign. ### 7. Hand the section to a separate reviewer Do not set `reviewed` or `signed_off` yourself, and never write a reviewer record: the lint refuses records by a part's builder or a named author, but it cannot tell who wrote a file, so this rule is yours to keep. Write the reviewer's bundle and hand it to an agent or person that did not build or write the section (plan §5.3, `docs/dossier.md` "The reviewer pass"): ```bash cad-agent review-section S3 # exports/review-bundle/S3/: PROMPT.md, the section YAML, gates.json, status.json, # packet/ (manifest + images), checklist.json, diff.patch, record-template.json ``` Exit 1 means something would refuse a sign-off today (`blockers` in `bundle.json`: a stale or missing packet, the section below `gated`, an open decision, a part built by `unknown`); fix it first unless you only want changes requested. Give the reviewer the bundle directory, not your conclusions. The reviewer follows `PROMPT.md`: answers every question `yes`, `no` or `unclear` with evidence and marks image-only answers, judges each decision `justified`, `weak` or `missing_alternative`, traces each requirement, writes findings with a severity, and submits: ```bash CAD_AGENT_ACTOR= cad-agent review-section S3 --submit my-review.json # --check validates only ``` That refuses stale hashes (the geometry changed since the bundle), a reviewer who built a part of the section or is named as its author, and, for a sign-off, an open decision or a stale packet; on success it writes `dossier/reviews/

-.json`. Builds and reviews must run with `CAD_AGENT_ACTOR` set: each part records the actor that built its current geometry, so a reviewer who rebuilds unchanged geometry is still not its builder, but one who changes it is. Any change to a part's geometry voids the sign-off. Answer every reviewer finding: fix it and ask for a new review, or explain why it stands. ### 8. Report One line per requirement touched (its status from `exports/dossier-status.json`), per gate, per open finding, per section with its status. Say what is not verified: CAD and simulation do not prove physical fit, strength, print quality or that a mechanism works. ## For the agent that splits the work Plan the sections from the requirements first, agree the interfaces between them, then hand one section per implementer with this skill and its section file; sections whose interfaces are agreed can be built in parallel. Run the reviewer pass on each section as it comes in and the full gates on the integrated assembly. Nothing is done while a finding is open, a verdict is stale or a section lacks its sign-off; `cad-agent check` fails while any section is below `gated`. --- Source: https://cad-agent.valpatel.com/skills/mcmaster-parts/SKILL.md # McMaster-Carr parts Bought hardware is a real part: a part number, its manufacturer's model, its specification. McMaster-Carr publishes a STEP model and a full specification table (material, finish, strength class, thread, dimensions and tolerances, load and speed ratings, temperature range, compliance) for almost everything it sells. Use them. The tools: `cadagent.mcmaster` (Python) and `cad-agent mcmaster` (CLI). They read one product page at a time in the system Chrome (Playwright), with a pause between pages. That is the same traffic as an engineer choosing parts, and it must stay that way. ## Rules - **Download like an engineer, not a crawler.** One part at a time, a pause between pages (default 3 s; the tool never goes below 2 s), only the product pages of the parts you are choosing. The tool accepts only McMaster part numbers (`PN_RE`, e.g. 91290A242), never a category, search or other URL. No bulk downloads, no parallel sessions. A part already downloaded is reused offline (no browser); download it again only when you need to (`--force`). - **Keep the files local.** McMaster-Carr CAD is for design use; do not redistribute it. Gitignore the vendor folder and track only `SOURCE.txt`: references/vendor/** !references/vendor/**/ !references/vendor/**/SOURCE.txt - **Strong, but few parts.** Prefer one family per fastener type: for example, black-oxide alloy steel class 12.9 socket head screws (91290A) with a minimal set of lengths; 18-8 stainless where corrosion matters; class 10 nyloc nuts; one washer family per size. When a computed length is not stocked, move the seat or the pilot depth so a stocked length fits (lesson 04) before adding another SKU. Report the number of distinct SKUs and the total part count. - **Size from the CAD, then check against the page.** The stack comes from the CAD: grip, thread depth, insert pilot depth. Thread engagement is length minus grip. Check the chosen length against the depth actually available, and check the normalised model's bounding box against the catalogue dimensions. - **Report what McMaster does not stock**, with the closest stocked alternative (for example, a 61812-2RS is not stocked; 6812-2Z is), and any CAD dimension that should move to a stocked size. ## Process 1. **Pick the part like an engineer.** Open the category page (e.g. `https://www.mcmaster.com/products/ball-bearings/`), filter it (System of Measurement → Metric, then size, material, thread) and read the table. Choose by function (load, fit, material, strength class) and by the SKUs you already use. Only then open the product page `https://www.mcmaster.com//`. 2. **Download and normalise.** cad-agent mcmaster 91290A242 --kind screw --out references/vendor/mcmaster \ --catalog catalog/hardware.json --key screw_m5x20 This writes `OUT//.step` (the download, kept only if it is a STEP file), `.page.json` (title, price, pack quantity, every spec row, option choices), `.norm.step`, `.norm.json` (axis found, how it was seated, bbox, volume, mass) and an entry in `SOURCE.txt`. Kinds and their frames (`cadagent.mcmaster.FRAMES`) all put the axis on +Z, through the origin (the cylinders' axis line, not the centre of mass); which end goes down is decided from the part's shape, not from how the vendor modelled it: - `bearing`, `washer`, `nut`, `insert`, `standoff`, `spacer`, `pin`, `grommet`, `rod`: the larger end (flange, collar, head) at z = 0 and the part on +z; when both ends are the same size, the heavier end down (`info["end_down"]` says which rule decided). - `screw`: head on +z, shank towards -z. z = 0 is the underside of the head for socket, button, pan, hex and flanged heads, and the top face for a countersunk (flat) head (`info["head"]`). A part with no head wider than its shank (set screw, stud) is refused: use `pin` or `rod`. - `shoulder_screw`: the underside of the head at z = 0, head on +z, shoulder and thread towards -z. - `rod_end`: the ball centre at the origin, ball bore along +Y, threaded shank along -Z (without a modelled ball, the middle of the bore). A part with variants (a rod end's thread direction, a choice of finish) offers its CAD only after the choice. Give the option text after the part numbers, one `--choose` per option, prefixed with the part it is for: cad-agent mcmaster 59935K53 91290A242 --choose "59935K53:Right Hand" --out references/vendor/mcmaster (the `PN:` prefix may be left out when there is one part number). In Python: `Session.fetch(pn, out, choose=["Right Hand"])`. The page data records what was offered and what was chosen. Playwright: `pip install playwright` into the environment that runs it, plus Google Chrome (then nothing else is needed; without Chrome the command stops with an install hint). 3. **Record the catalogue entry.** `catalog_entry()` / `--catalog` gives: `mcmaster` (PN), `description`, `url`, `price_usd`, `pack_qty`, `dims_mm`, `material`, `mass_g` with `mass_basis` (McMaster's listed weight when the page gives one, otherwise CAD volume x density, which it says), `cad` (the normalised STEP path), `frame`, and `specs.raw` (label → value) with `specs.parsed` (mm, g, N, MPa, deg C). Add what only the project knows: `used_for`, the quantity, and notes (stack and engagement arithmetic, CAD changes needed). Fields you add are kept when the entry is refreshed. 4. **Check the model.** Compare `bbox_mm` with the page's dimensions (a bearing's OD and width, a screw's length below the head, a rod end's centre-to-end length). A mismatch means the wrong frame or the wrong part. 5. **Place it in the assembly.** Import `.norm.step` and move it to the seat: for a screw, origin on the seat face and +Z out of the hole; for a bearing, the bottom face on the shoulder. Run the clash and tool-access checks (lesson 04) with the real heads, nuts and washers in place, not envelopes. ## Python ```python import json from cadagent import mcmaster as mc with mc.Session(delay_s=3) as s: # one browser, one page at a time step = s.fetch("5972K82", "references/vendor/mcmaster/5972K82") norm, info = mc.normalise(step, "bearing", material="Steel") page = json.loads((step.parent / "5972K82.page.json").read_text()) mc.update_catalog("catalog/hardware.json", "bearing_6001", mc.catalog_entry(page, info, cad=str(norm)) | {"used_for": "knee", "qty": 4}) ```
